• All four lateral faces include SM05 (0.535"-40) threaded ports. • Two opposing faces have Ø16.1 mm clear apertures. • 4-40 tapped holes for mounting SPCM series Ø4 mm cage rods. • 3-48 tapped holes for mounting 16 mm cage plates.

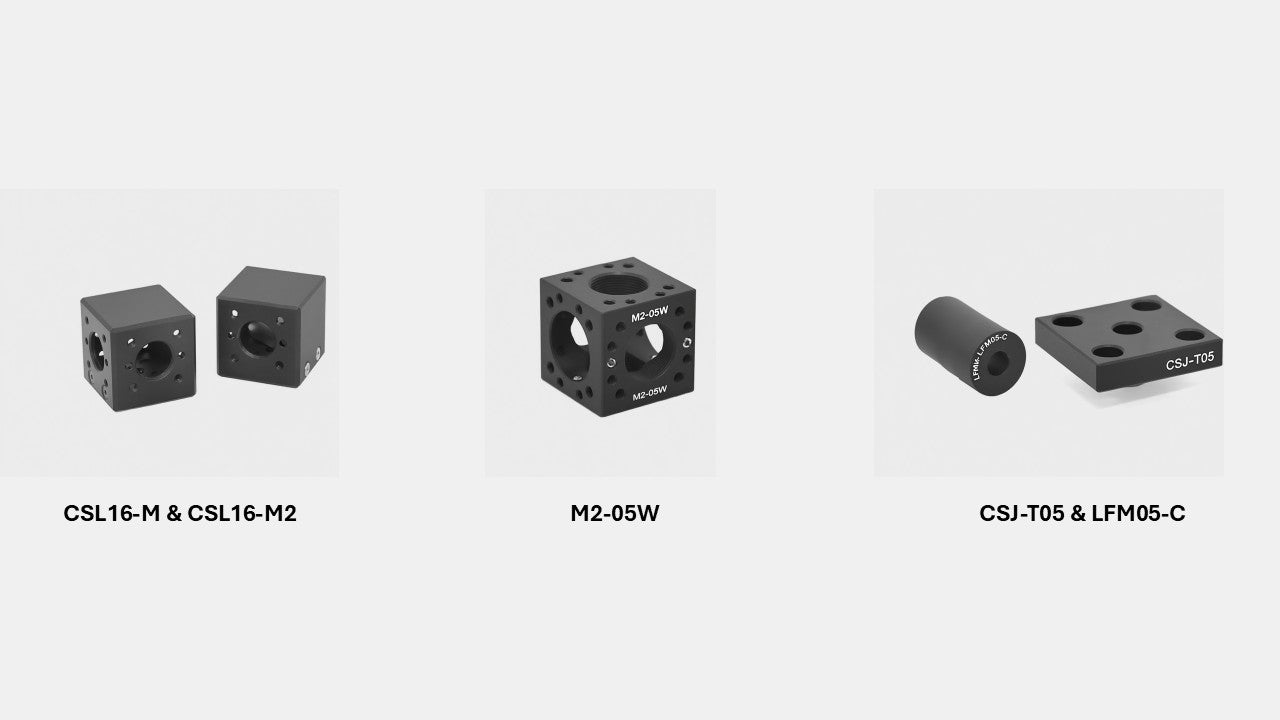

The M2-05W Cage Cube is designed for 16 mm coaxial cage systems. Each face features 4-40 tapped holes spaced at 16 mm intervals for direct connection to SPCM series Ø4 mm cage rods. SM05 threads on four sides offer integration with lens tubes and other accessories. With the addition of the LFM05-C Prism Mount, you can install cube optics or prisms up to 10 mm within the cube. The CSJ-T05 Cube Clamp can be attached to the cube (typically on the two open faces) to secure the mounted optics.
