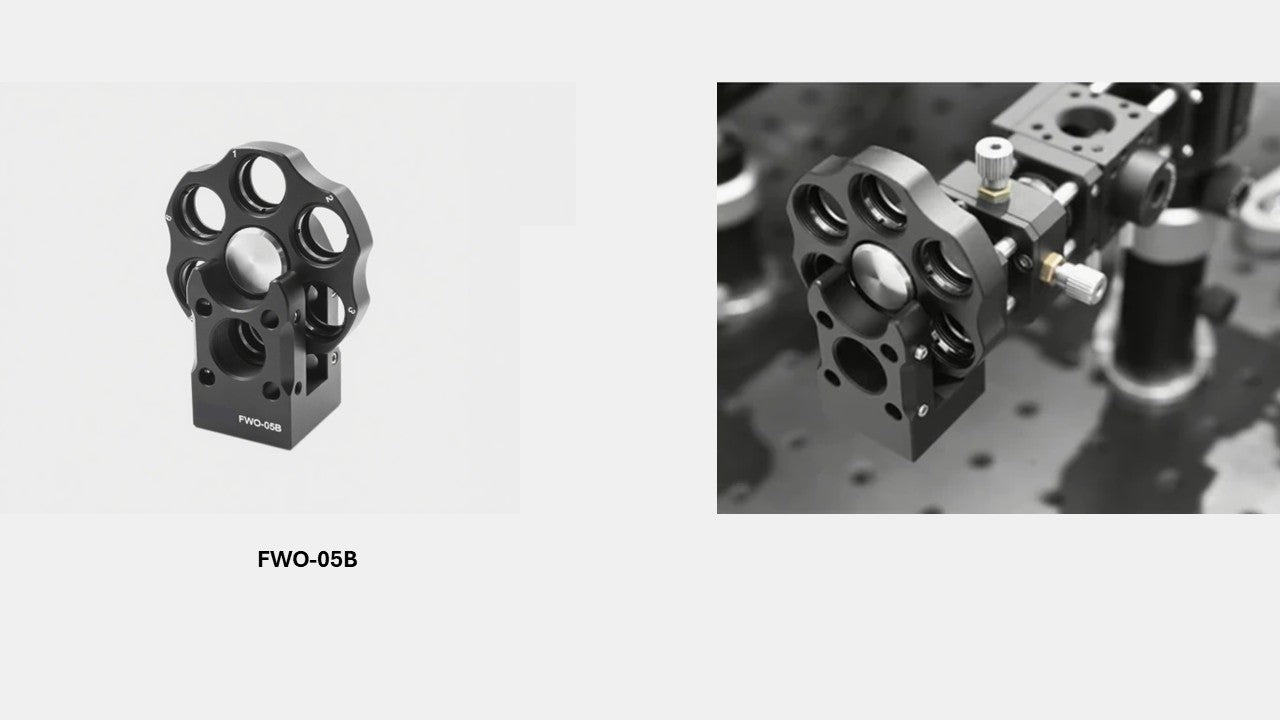

FWO-05B Filter Wheel for Ø1/2" Optics (SM05-Compatible)
• Rotating wheel allows quick switching between filters. • Each filter slot features SM05 (0.535"-40) internal threading and includes CSK05 retaining ring. • Holds up to 6 optical elements, Ø0.5" in diameter, with a maximum thickness of 4.5 mm. • SM05-threaded ports are compatible with lens tubes. • Compatible with 16 mm cage systems. • Bottom includes M4 and M6 tapped holes for mounting to optical posts.
The FWO-05B Filter Wheel is designed for compact optical setups, allowing fast and precise switching between six SM05-threaded optical filters. It accommodates up to six Ø0.5" optics with a maximum thickness of 4.5 mm, and seamlessly integrates into 16 mm cage systems and lens tube assemblies. Precision-machined from 7075 aluminum alloy, it provides stability and compatibility for lab use in tight setups.
Model
FWO-05B
Dimensions
47.68 mm × 25.4 mm × 62.5 mm
Filter Wheel Slots
SM05 (0.535"-40) Internal Thread, fits Ø0.5" optics up to 4.5 mm thick
