• Black anodized aluminum alloy construction; • Compatible with 30 mm cage systems; • Equipped with M6 × 0.25 adjustment screws, providing ±4° tip/tilt adjustment; • Compatible with Ø0.5 inch and Ø1 inch optical components; • Multiple adjustment configurations available; • Available with XY translation, Z-axis translation, tip/tilt, yaw, and 360° rotation options.

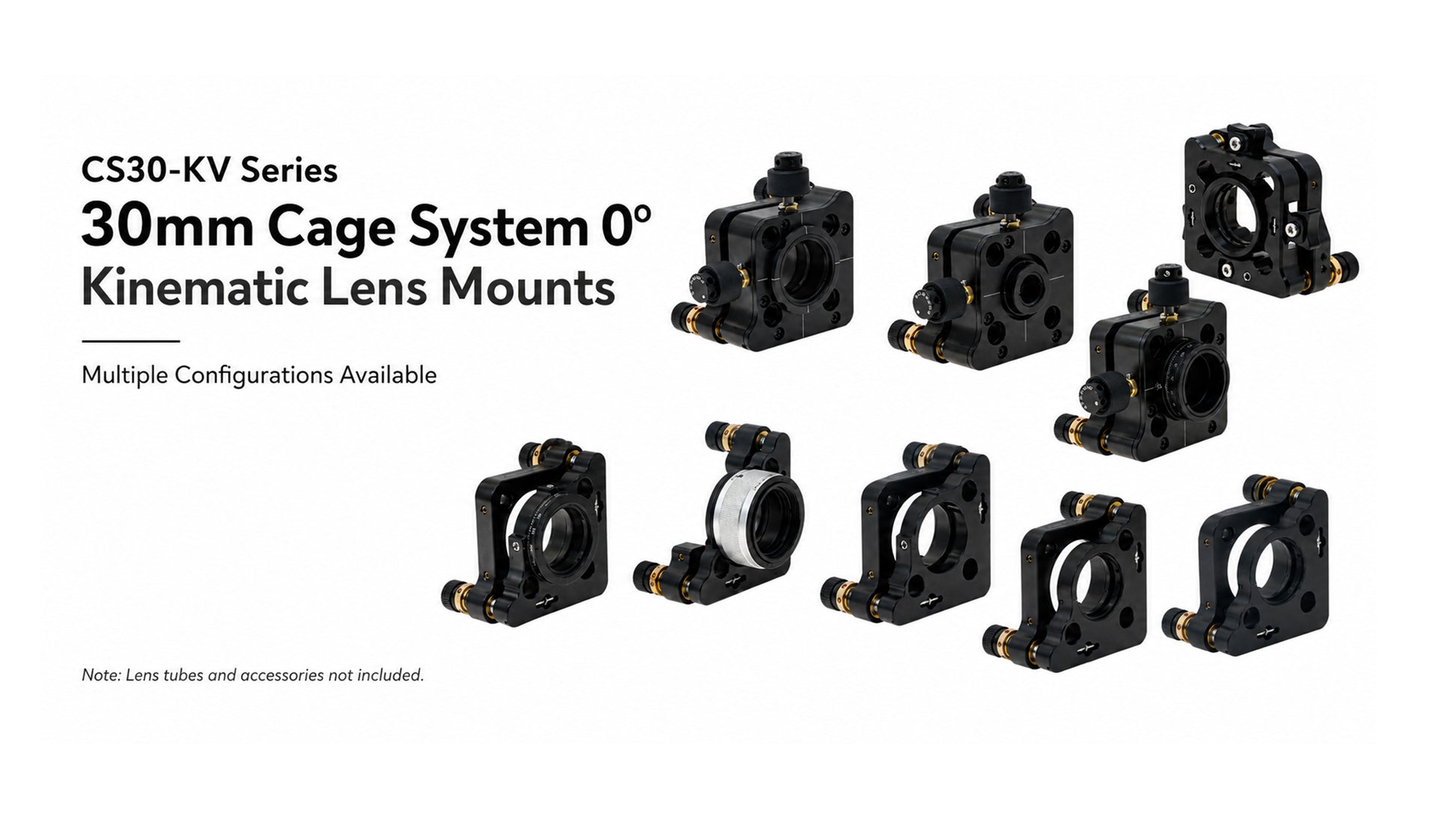

The CS30-KV Series is a modular family of 0° incidence mirror mounts designed for integration into 30 mm cage systems. Depending on the model, the mounts provide combinations of precision tip/tilt adjustment, XY translation, Z-axis focusing, and continuous 360° rotation. All models securely retain optics using threaded retaining rings or nylon-tipped setscrew optic retention and are compatible with standard Ø1/2 inch and Ø1 inch optical components, making them ideal for beam steering, alignment, focusing, and compact optomechanical assemblies.
Model

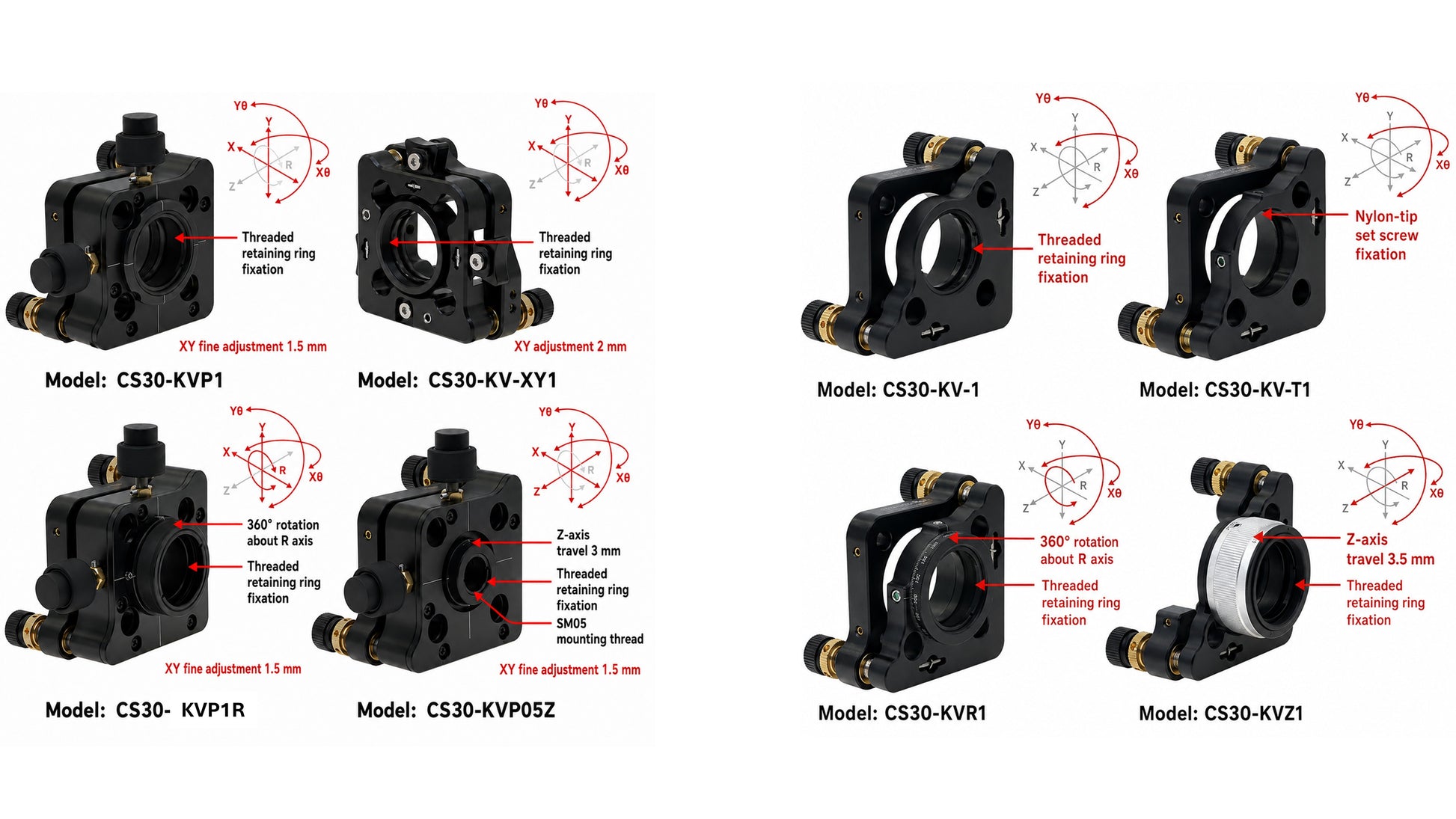

Primary Function
CS30-KV-1
Standard ±4° tip/tilt 30 mm cage mount
CS30-KV-T1
Tip/tilt mount with nylon-tipped setscrew optic retention
CS30-KVR1
Tip/tilt + 360° continuous rotation
CS30-KVZ1
Tip/tilt + 3.5 mm Z-axis translation
CS30-KVP1
Tip/tilt + 1.5 mm XY precision translation
CS30-KV-XY1
Tip/tilt + 2 mm XY coarse translation
CS30-KVP1R
Tip/tilt + 1.5 mm XY precision translation + 360° rotation
CS30-KVP05Z
Tip/tilt + 1.5 mm XY precision translation + 3 mm Z-axis translation + SM05 mounting bore
