Product Description • 4 mm travel range on X, Y, and Z axes; • Flexure design ensures smooth, continuous motion and long-term stability; • Pre-configured adjusters for manual coarse and fine adjustments; • Compact size: 77.5 mm × 74.0 mm × 62.4 mm (excluding actuators); • Top plate features alignment grooves for multi-axis stage integration; • All adjusters are mounted to a common base to minimize cross-talk; • Modular design allows actuators to be removed or replaced at any time; • Ideal for precision fiber coupling systems, fiber alignment, or waveguide positioning systems.

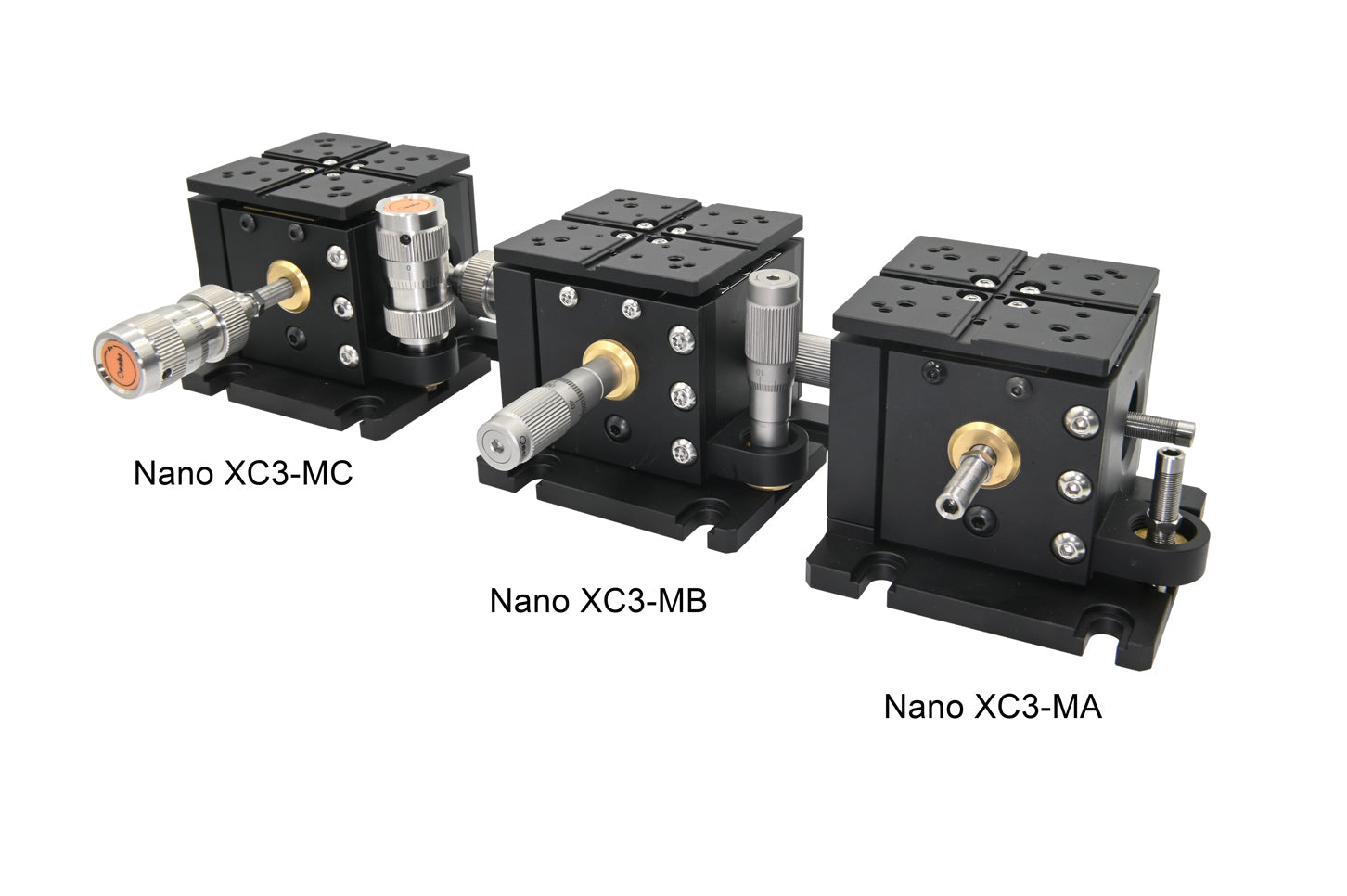

Our 3-axis Nano XC3 series translation stages feature a modular design that allows actuators to be removed or replaced at any time. All actuators are directly coupled to the common base, minimizing motion cross-talk. The parallel flexure design ensures accurate, smooth, continuous motion with minimal friction.
