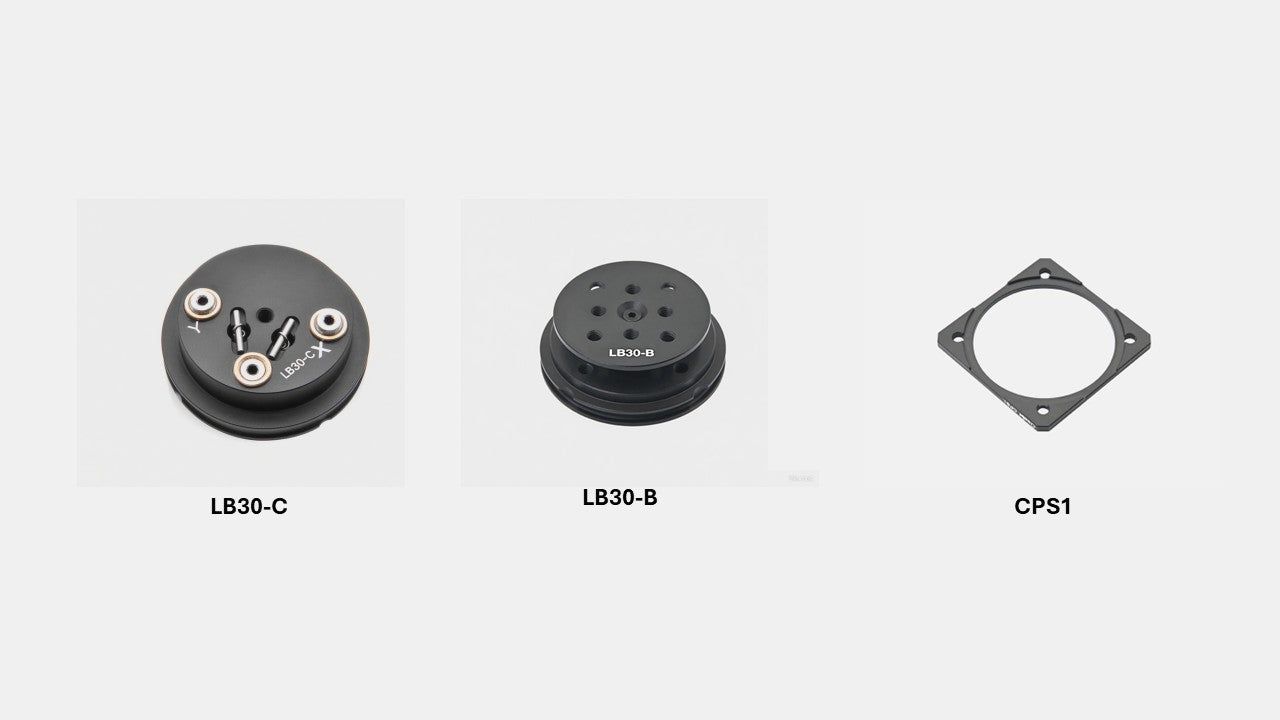

• Compatible with 30 mm cage cubes; • Allows mounting of optical components at any angle inside M2-4W and M2-6W cubes; • The platform consists of a base plate and a removable top plate, which raises mounted components by 8.8 mm; • Includes four M3 cap screws for securing to the cube;

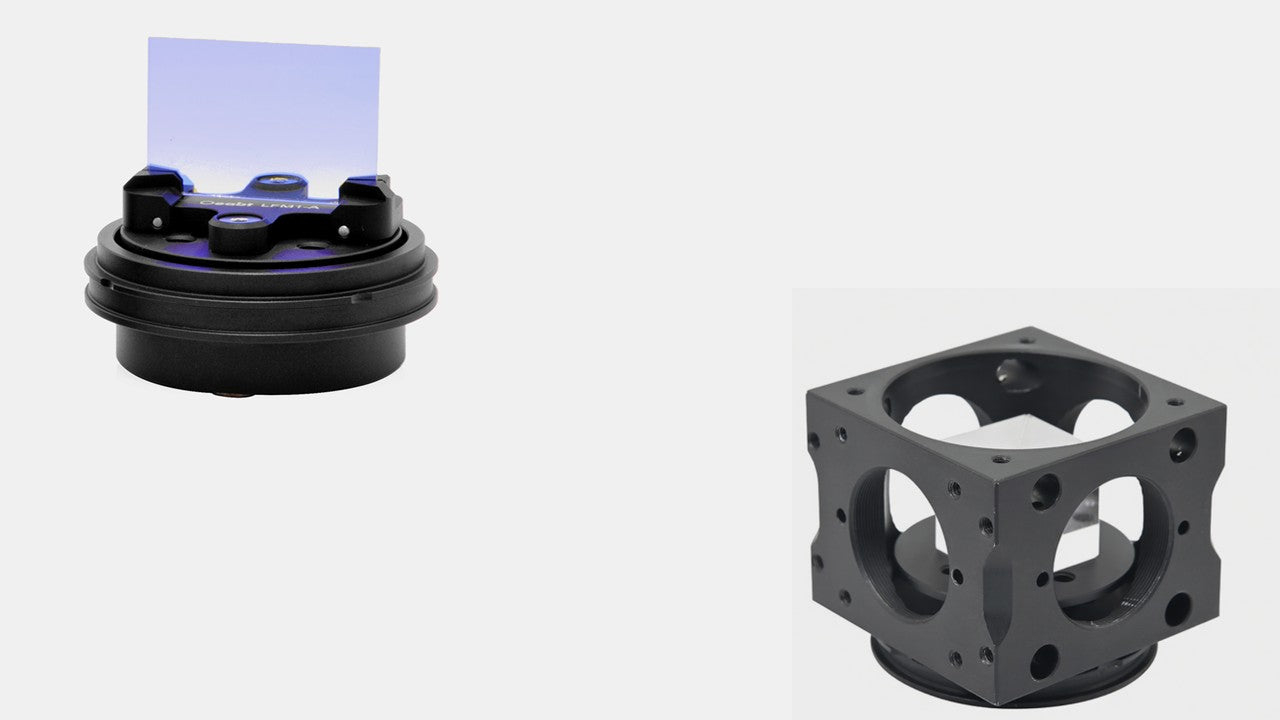

The LB30-B cube mounting platform is composed of a base and a removable top plate. The 8.8 mm top plate is ideal for adjusting the vertical position of small optical components during cube integration.
LB30-C Tiltable Cube Platform
• Compatible with 30 mm cage cubes; • Allows installation of optics at any angle inside M2-4W and M2-6W cubes; • Provides ±4° tip/tilt adjustment and ±2 mm Z-axis translation; • Includes four M3 cap screws for securing to the cube;
The LB30-C tiltable cube platform can be installed on the top or bottom of a 30 mm cage cube. It features three precision adjusters for pitch, roll, and Z-axis translation. It offers ±4° angular adjustment and ±2 mm height adjustment. A bottom M4 threaded hole allows for post mounting.
CPS1 Spacer for Cube Platforms
• Allows optical elements to be mounted while the platform is fully inserted onto four cage rods; • Compatible with LB30 series cage cube platforms; • Includes four M3 mounting screws;

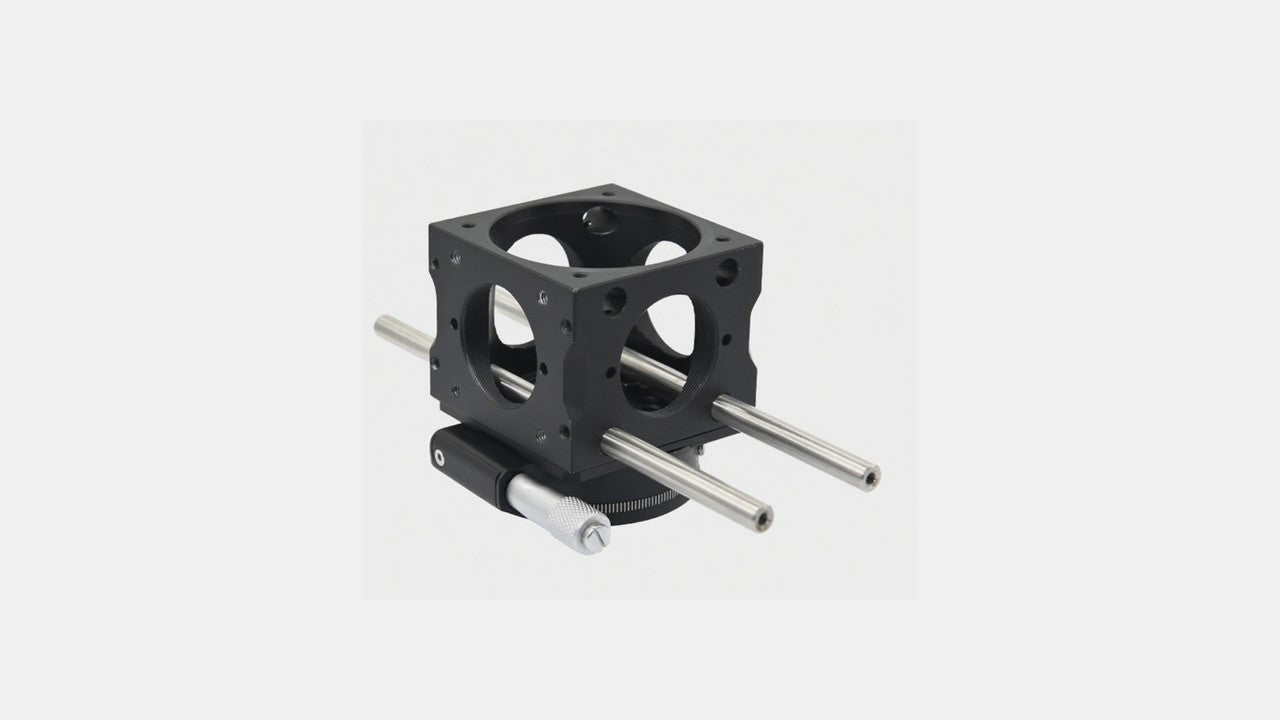

The CPS1 spacer enables full engagement of the cube platform with all four support rods in the 30 mm cage system without mechanical interference, ensuring robust and aligned assembly.
