5-Axis Kinematic Mounts

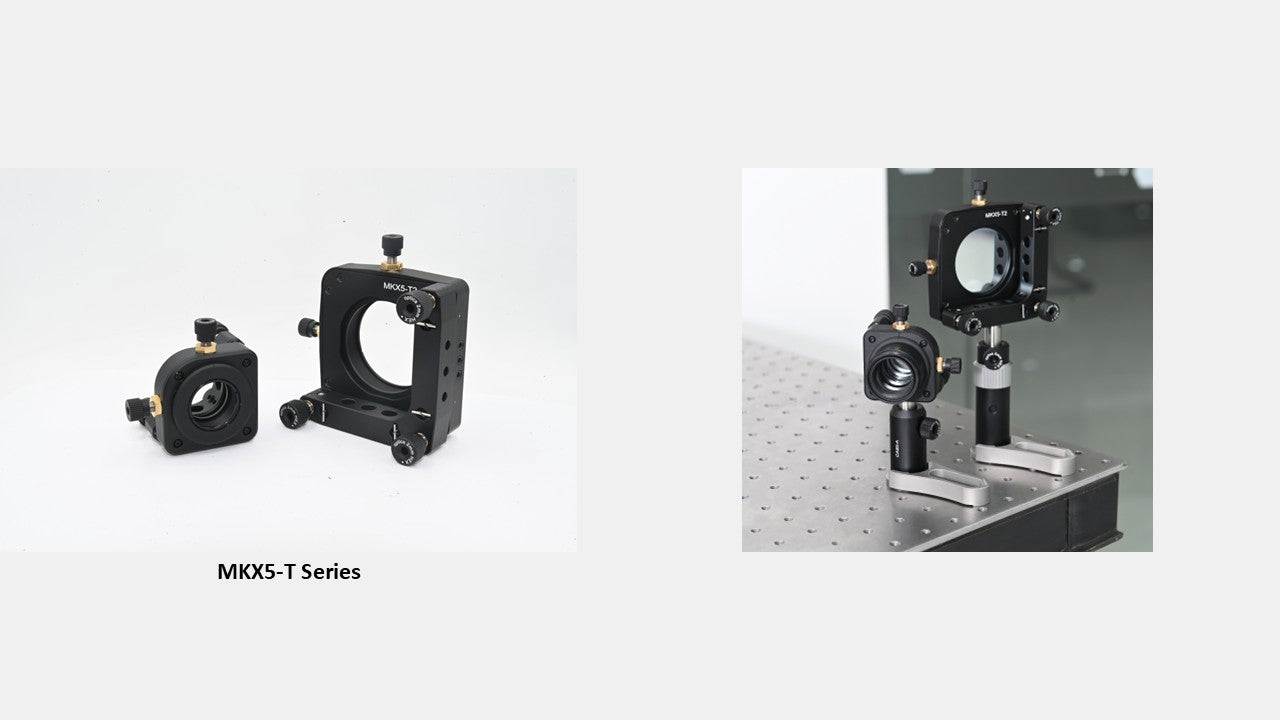

MKX5-T Series: 5-Axis Optical Mounts for Ø1″ and Ø2″ Optics

• Provides five-axis adjustment: pitch, yaw, and XYZ translation, all with lockable mechanisms
• Designed for Ø1″ or Ø2″ optical components
• Available with SM1 or SM2 threaded interface
• M4 countersunk holes for post mounting

These 5-axis optical mounts support precise positioning of optical components along pitch, yaw, and XYZ directions. Each axis includes a locking mechanism to ensure stability after alignment, making them ideal for complex optical setups.

Model	Dimensions (L×W×H)	Center Thread Type	Compatible Optics	Tilt/Yaw Range	XY Travel	Z Travel	Mounting Holes	Weight	Material
MKX5-T1	64.4 mm × 64.4 mm × 53.3 mm	SM1 (1.035"-40) Internal	Ø1″, thickness ≤ 10.5 mm	±4° (8 mrad/rev)	±1 mm (0.25 mm/rev)	Max 6.4 mm (0.35 mm/rev)	2 × M4 countersunk	152.6 g	Aluminum + Stainless Steel
MKX5-T2	91.0 mm × 91.0 mm × 54.2 mm	SM2 (2.035"-40) Internal	Ø2″, thickness ≤ 11.5 mm	±3° (4.6 mrad/rev)	±2 mm (0.25 mm/rev)	Max 7.6 mm (0.35 mm/rev)	6 × M4 countersunk	256.0 g	Aluminum + Stainless Steel

View full details

Your cart
Model Number	Variant total	Specification	Drawings	All Files	Lead Time	Quantity	Price	Model Total
MKX5-T1	MKX5-T1 $251.03/ea	$0.00	5-Axis Locking Kinematic Mount for Ø1" Optics	pdf	No file	2 weeks	Quantity	$251.03/ea	$0.00

MKX5-T2	MKX5-T2 $441.00/ea	$0.00	5-Axis Locking Kinematic Mount for Ø2" Optics	pdf	No file	2 weeks	Quantity	$441.00/ea	$0.00
