Iris diaphragms

Iris diaphragms

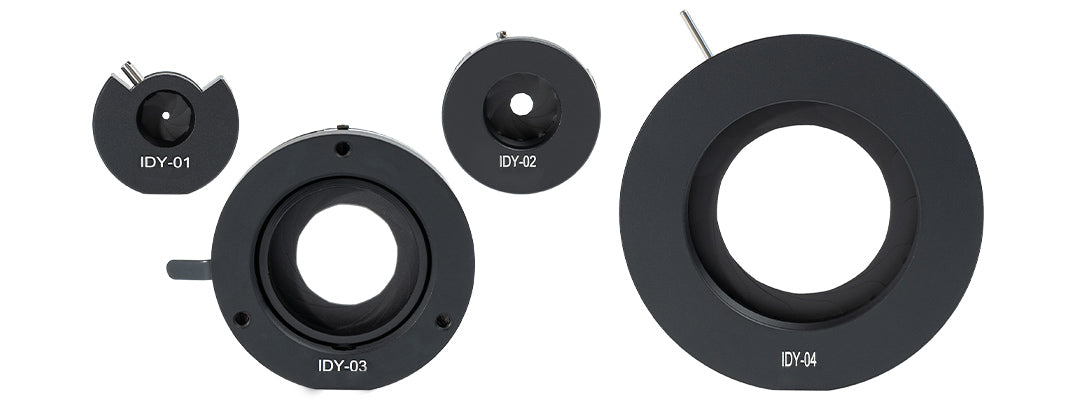

The variable aperture can be adjusted to different diameters to accommodate various optical systems. The aperture size can be changed by turning the lever. The threaded hole allows for compatibility with mounting rods or other components.

Specification IDY-01 IDY-02 IDY-03 IDY-04
Housing material Aluminum alloy  Aluminum alloy Aluminum alloy Aluminum alloy
Aperture adjustment range Φ0.8~7.5mm Φ1–12 mm Φ2~29mm Φ3~52mm
Outer diameter Φ23 mm Φ27mm Φ50mm Φ83mm
Center height 12 mm 14.5mm 24.5mm 41mm
Thickness 6.5mm 7.8mm 18mm 9.5mm
Rod adapter thread M4 M4 M4 M4
Adjustment method Lever adjustment Lever adjustment Lever adjustment Lever adjustment
View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total
IDY-01
IDY-01
$62.00/ea		 $0.00 Outer diameter: Φ23 mm
Aperture adjustment range: Φ0.8–7.5 mm
Center height: 12 mm 		pdf Download 2 weeks
$62.00/ea $0.00
IDY-02
IDY-02
$47.00/ea		 $0.00 Outer diameter: Φ27 mm
Aperture adjustment range: Φ1–12 mm
Center height: 14.5 mm 		pdf Download 2 weeks
$47.00/ea $0.00
IDY-03
IDY-03
$57.00/ea		 $0.00 Outer diameter: Φ50 mm
Aperture adjustment range: Φ2–29 mm
Center height: 24.5 mm 		pdf Download 2 weeks
$57.00/ea $0.00
IDY-04
IDY-04
$134.00/ea		 $0.00 Outer diameter: Φ83 mm
Aperture adjustment range: Φ3–52 mm
Center height: 41 mm 		pdf Download 2 weeks
$134.00/ea $0.00
