Cage Alignment Plates

Cage Alignment Plates

Product Description

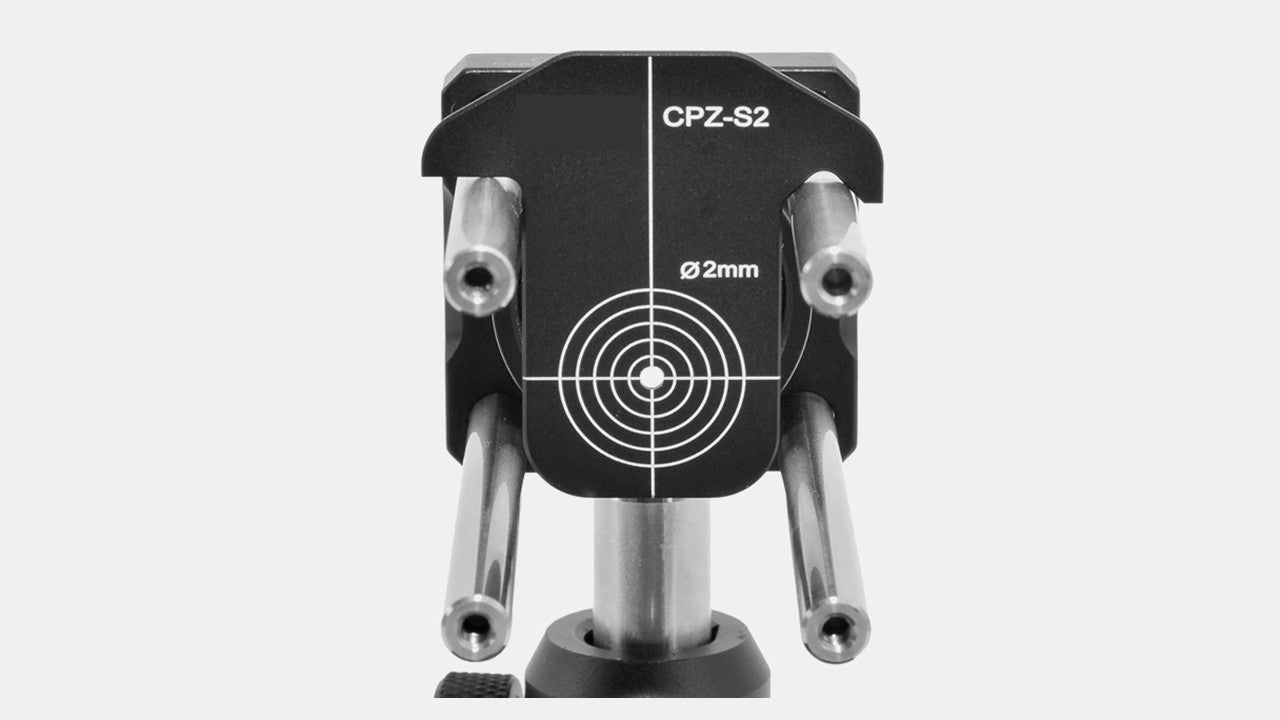

· Designed for aligning visible light systems.

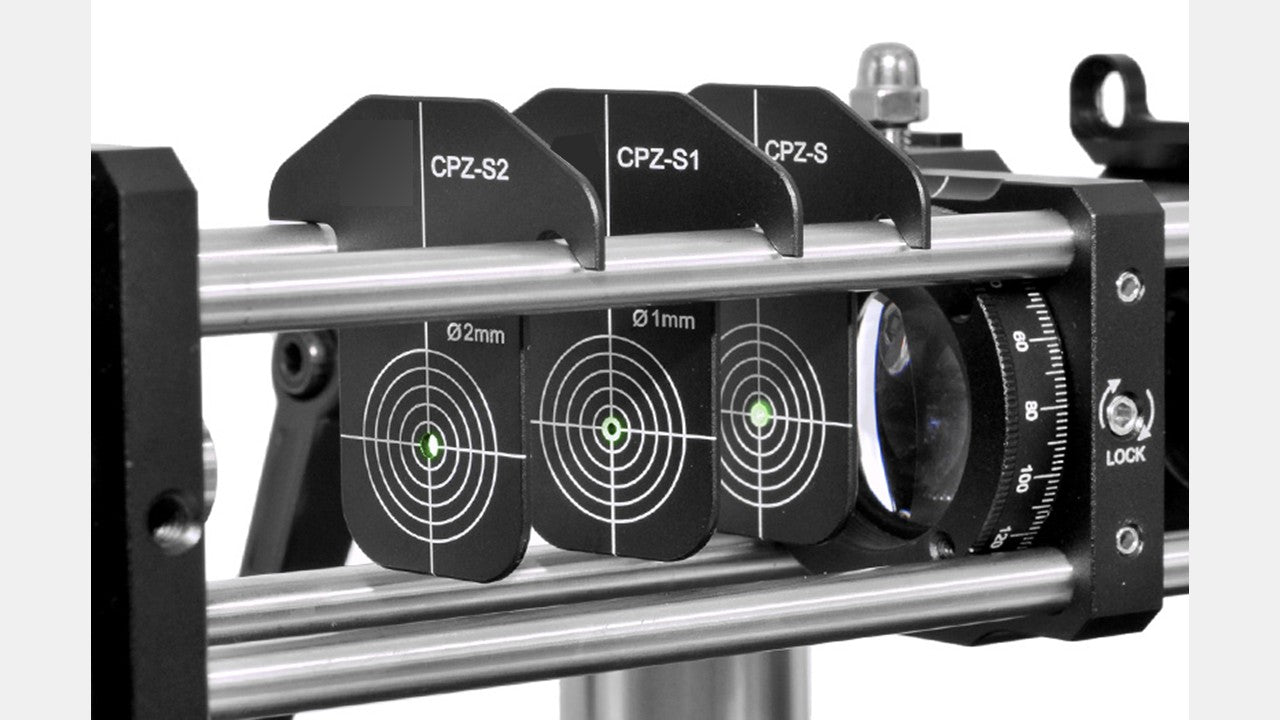

· Easily insertable into 30 mm or 60 mm cage systems.
· Targets feature laser-engraved concentric rings and XY-axis or single-axis scales.
· Available with Ø1 mm or Ø2 mm apertures for aligning beams of various diameters.
· Solid (non-through-hole) targets also available for beam blocking and general optical alignment.

These laser alignment targets are designed to simplify the beam alignment process in visible-light optical systems. Made from anodized 7075 aluminum, they feature laser-engraved patterns such as concentric rings and axis scales for enhanced visual alignment precision. All variants are compatible with cage systems, lens mounts, and lens tubes.

Compatible with 30 mm Cage System – Black Finish

Model Aperture Dimensions Weight Material
CPZ-S None 40.6 mm× 40.4 mm× 1 mm 2.5 g 7075 Aluminum Alloy
CPZ-S1 Ø1 mm 40.6 mm× 40.4 mm× 1 mm 2.5 g 7075 Aluminum Alloy
CPZ-S2 Ø2 mm 40.6 mm× 40.4 mm× 1 mm 2.5 g 7075 Aluminum Alloy


Compatible with 30 mm Cage System – Matte Gray Finish

Model Aperture Dimensions Weight Material
CPZ-S None 40.6 × 40.4 × 1 mm 7.6 g 7075 Aluminum Alloy
CPZ-S1 Ø1 mm 40.6 × 40.4 × 1 mm 7.6 g 7075 Aluminum Alloy
CPZ-S3 Ø2.5 mm 40.6 × 40.4 × 1 mm 7.6 g 7075 Aluminum Alloy



Compatible with 60 mm Cage System – Black Finish

Model Aperture Dimensions Weight Material
CPZ2-S None 40.6 mm× 40.4 mm× 1 mm 10.0 g 7075 Aluminum Alloy
CPZ2-S1 Ø1 mm 40.6 mm× 40.4 mm× 1 mm 10.0 g 7075 Aluminum Alloy
CPZ2-S2 Ø2 mm 40.6 mm× 40.4 mm× 1 mm 10.0 g 7075 Aluminum Alloy





View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total
CPZ-S
CPZ-S
$13.50/ea		 $0.00 30 mm Cage Alignment Plate without Hole pdf No file 2 weeks
$13.50/ea $0.00
CPZ-S1
CPZ-S1
$13.50/ea		 $0.00 30 mm Cage Alignment Plate with Ø1 mm Hole pdf No file 2 weeks
$13.50/ea $0.00
CPZ-S2
CPZ-S2
$13.50/ea		 $0.00 30 mm Cage Alignment Plate with Ø2 mm Hole pdf No file 2 weeks
$13.50/ea $0.00
CPZ2-S
CPZ2-S
$19.30/ea		 $0.00 60 mm Cage Alignment Plate without Hole pdf No file 2 weeks
$19.30/ea $0.00
CPZ2-S1
CPZ2-S1
$19.30/ea		 $0.00 60 mm Cage Alignment Plate with Ø1 mm Hole pdf No file 2 weeks
$19.30/ea $0.00
CPZ2-S2
CPZ2-S2
$19.30/ea		 $0.00 60 mm Cage Alignment Plate with Ø2 mm Hole pdf No file 2 weeks
$19.30/ea $0.00
