Cage Plates for 16 mm Cage Systems

Cage Plates for 16 mm Cage Systems

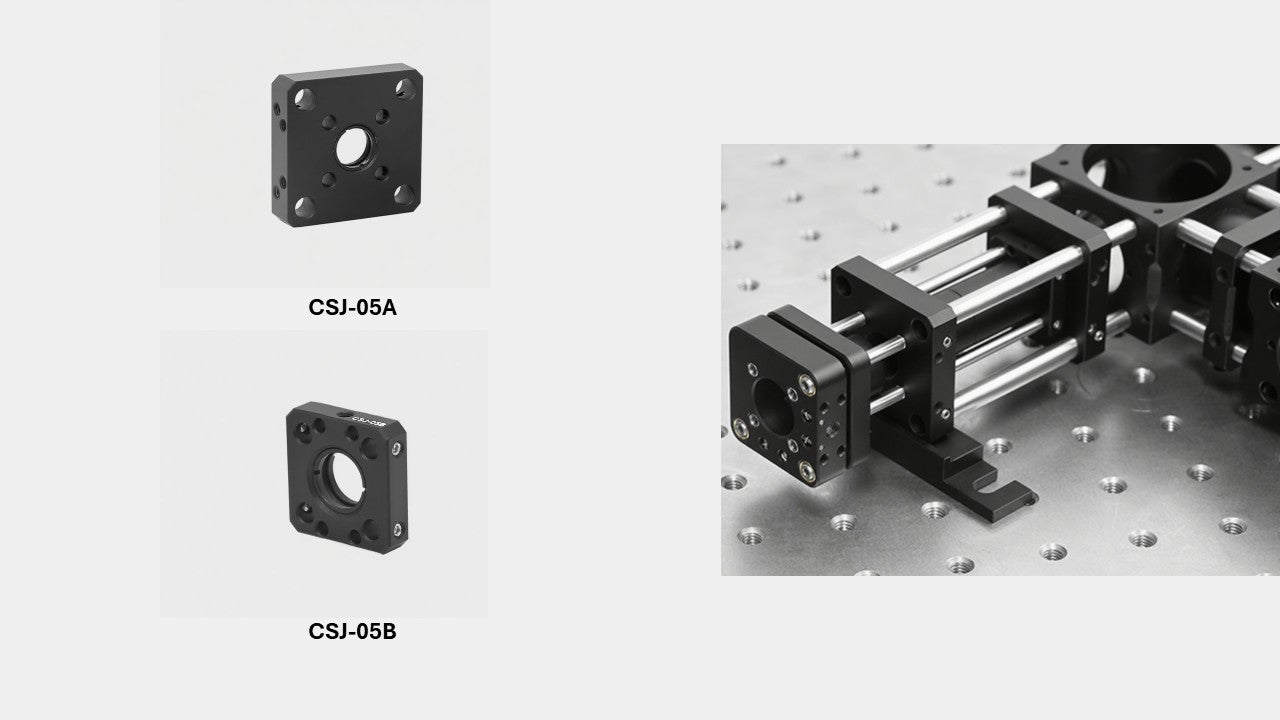

CSJ-05A SM05 Threaded Cage Plate (Compatible with 16 mm and 30 mm Cage Systems)

• SM05 (0.535"-40) internal threading.
• Supports Ø1/2" optics with a maximum thickness of 5.3 mm.
• Four Ø4 mm through-holes for 16 mm cage rods (SPCM series).
• Four Ø6 mm through-holes for 30 mm cage rods.
• M4 tapped hole on the bottom for post mounting in free-space setups.

The CSJ-05A is a compact cage plate specially designed for integration into 16 mm cage systems, while also offering backward compatibility with 30 mm systems. It supports Ø1/2" optical elements and includes two CSK05 retaining rings to securely hold optics up to 5.3 mm thick. This dual-rod compatibility allows it to be flexibly incorporated into hybrid cage structures, or used as a versatile component in free-space optical assemblies.



Model CSJ-05A
Dimensions 40.7 mm × 40.7 mm × 8.9 mm
Center Thread SM05 (0.535"-40) Internal Thread
Rod Hole Spacing Ø4.03 mm ×4 (16 mm spacing) Ø6.03 mm ×4 (30 mm spacing)
Thread Type M4 (bottom)
Weight 31.6 g
Material 7075 Aluminum Alloy
View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total
CSJ-05A
CSJ-05A
$29.99/ea		 $0.00 30 mm to 16 mm Cage Adapter Plate, M4 Tap pdf No file 2 weeks
$29.99/ea $0.00
CSJ-05B
CSJ-05B
$17.00/ea		 $0.00 Compact Cage Plate with SM05 Thread for a 16 mm Cage System pdf No file 2 weeks
$17.00/ea $0.00
