· Couples 30 mm and 60 mm cage systems via Ø6 mm cage rods
· Compatible with PCM-S series cage rods
· Available in multiple models to support various Ø1" optics and mounting thicknesses
· M4 tapped hole on the bottom for mounting on Ø12 mm posts

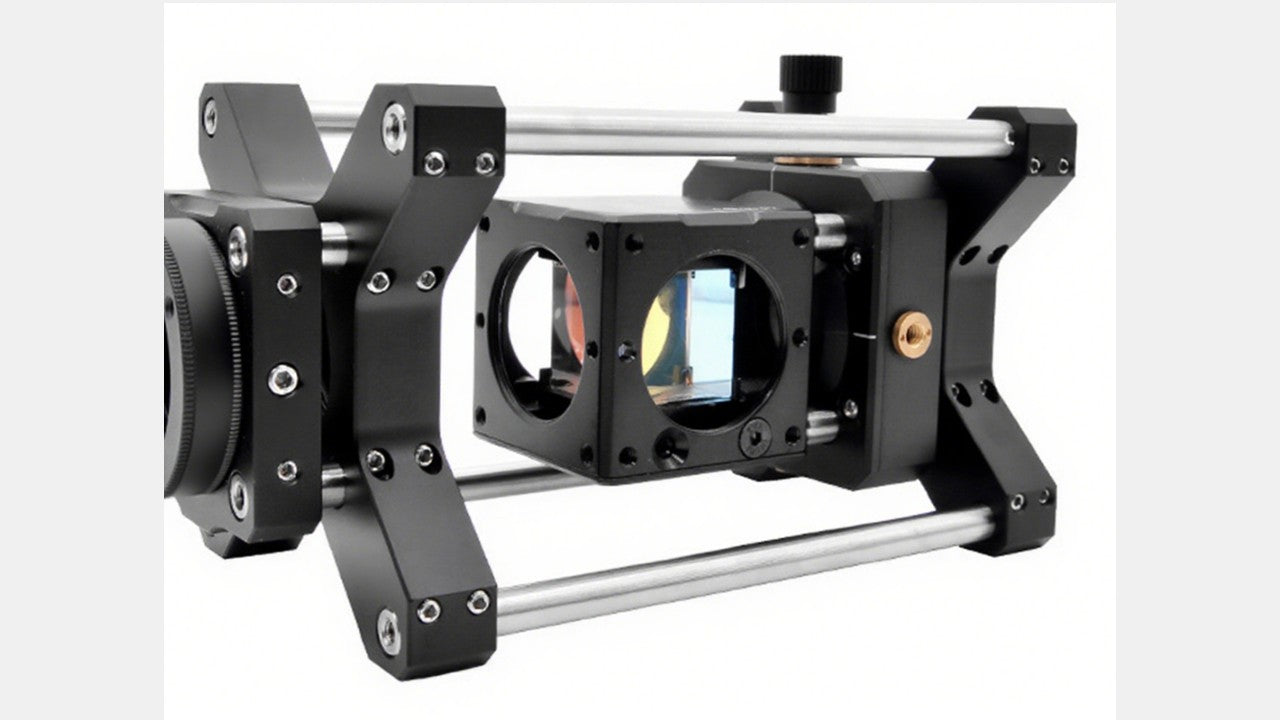

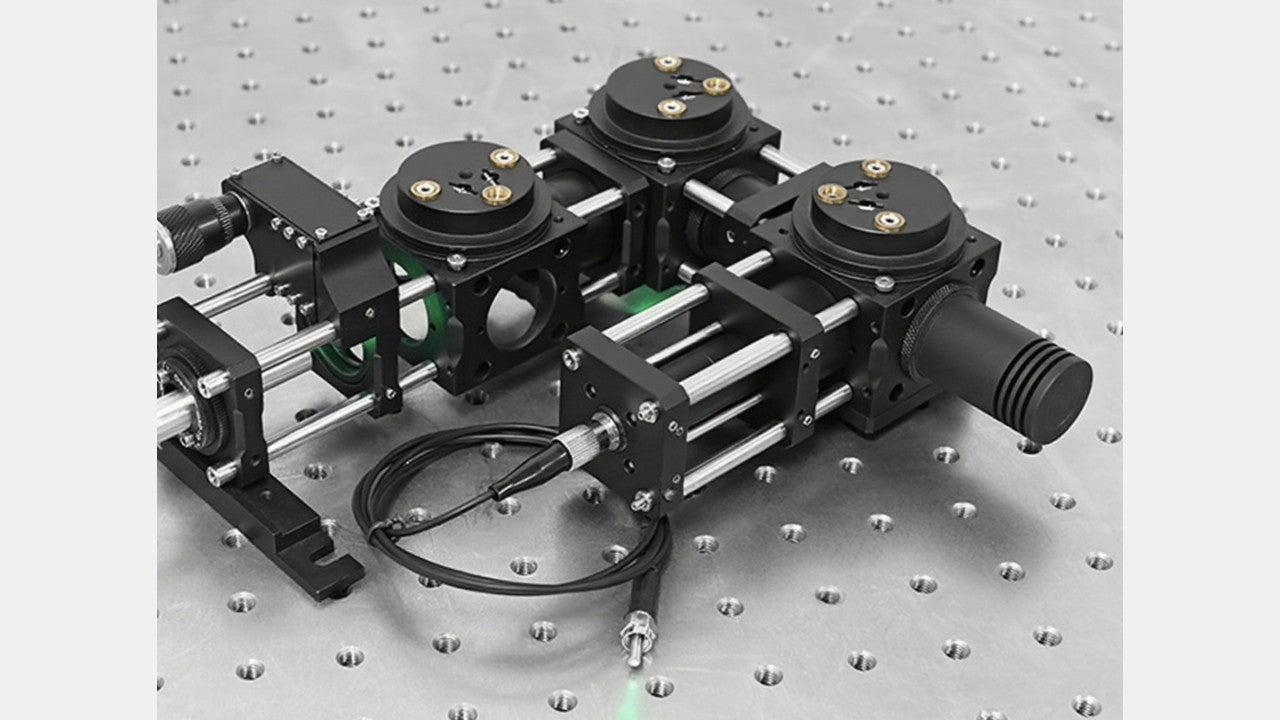

These adapter plates enable the integration of 30 mm cage subsystems into 60 mm cage structures using Ø6 mm cage rods. When used in pairs, they can bridge a 30 mm cage segment between two adapter plates, allowing it to slide as a complete optical subassembly within a larger system. The design supports direct mounting of Ø1" optical components and facilitates hybrid system construction.
Product Name
30 mm to 60 mm Cage System Adapter Plate
Dimensions
70.6 mm × 70.6 mm
Hole Spacing
Ø6 mm holes on 30 mm centers
Optic Size
Ø1" Optical Components
Material
7075 Aluminum Alloy

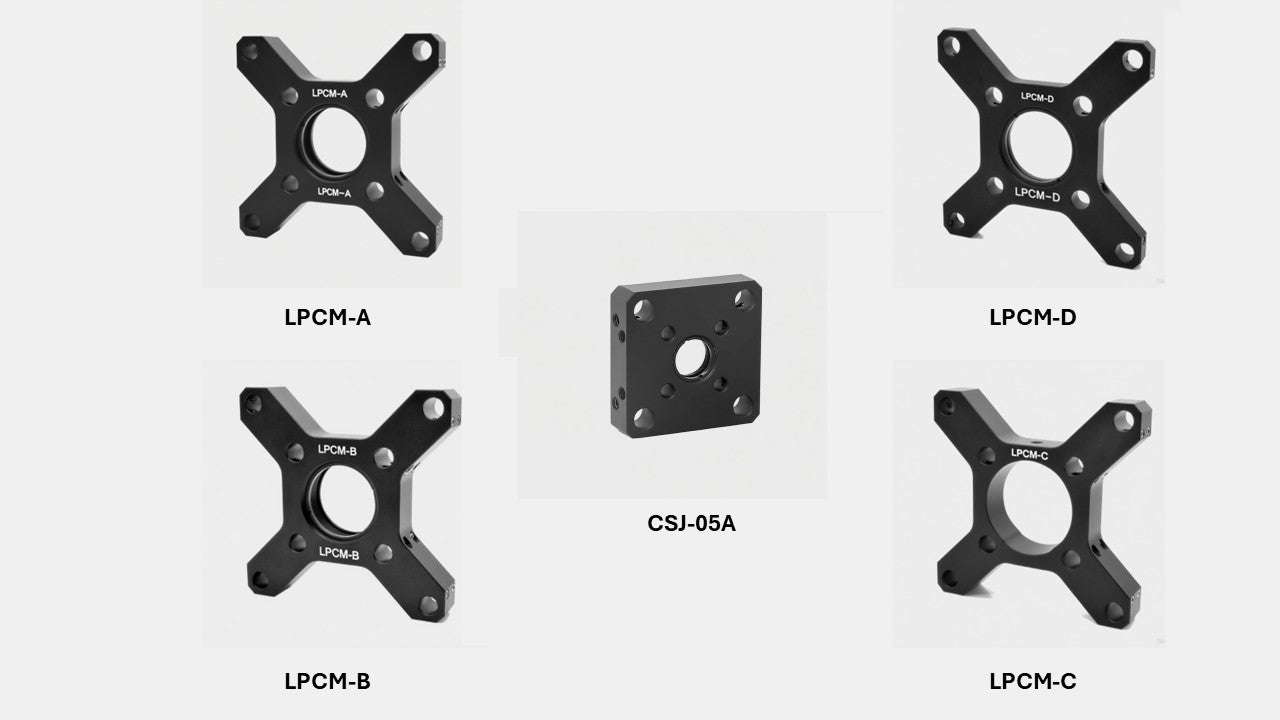

Model
Dimensions
Center Port
Weight
LPCM-A
70.6 mm × 70.6 mm × 12 mm
SM1 (1.035"-40) Full Thread
71.0 g
LPCM-B
70.6 mm × 70.6 mm × 12 mm
SM1 (1.035"-40) Half Thread
71.0 g
LPCM-C
70.6 mm × 70.6 mm × 12 mm
Ø30.5 mm Clear Aperture
63.3 g
LPCM-D
70.6 mm × 70.6 mm × 6 mm
SM1 (1.035"-40) Full Thread
35.4 g
We also have threaded cage plate to adapt 16mm & 30mm cage system:
SM05 (0.535"-40) Threaded Cage Plate
· Accommodates Ø1/2" optics up to 5.3 mm thick. · 4 through-holes for Ø4 mm rods—compatible with 16 mm cage systems. · 4 additional through-holes for Ø6 mm rods—compatible with 30 mm cage systems. · M4 tapped hole on the bottom for post mounting in free-space setups.
This threaded cage plate is specially designed for compact optical assemblies using the 16 mm cage system. It supports Ø1/2" optical elements and comes with two CSK05 retaining rings for securely mounting optics up to 5.3 mm thick. Dual rod compatibility allows seamless integration between 16 mm and 30 mm cage systems, making it ideal for hybrid or compact optical configurations.
Model
CSJ-05A
Dimensions
40.7 mm × 40.7 mm × 8.9 mm
Center Thread
SM05 (0.535"-40) Internal Thread
Rod Hole Spacing
Ø4.03 mm × 4, 16 mm spacing; Ø6.03 mm × 4, 30 mm spacing
