• Compatible with 30 mm cage systems; • Rotating filter wheel allows for quick switching of filters; • Filter slots are SM1 (1.035"-40) threaded and include CSK3 retaining rings; • SM1 (1.035"-40) internal thread ports are compatible with lens tubes;

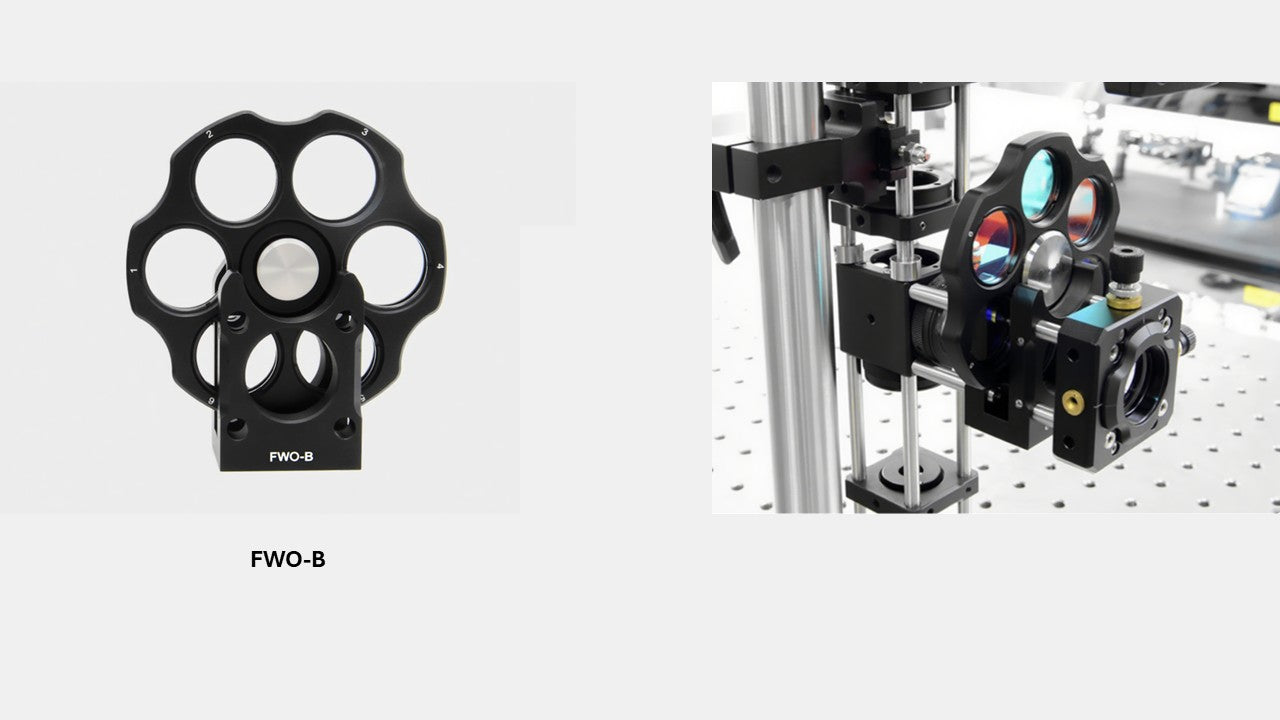

The FWO-B Filter Wheel is designed for use in 30 mm coaxial cage systems. It features six SM1-threaded filter holders, and its body includes SM1-threaded input and output ports for direct compatibility with Ø1 inch lens tubes. The filter center aligns precisely with the cage system's optical axis.
Model
FWO-B
Dimensions
88.6 mm × 28.0 mm × 102.3 mm
Filter Slots
SM1 (1.035"-40) Internal Threads,
Compatible with Ø1" optics up to 4.5 mm thick
Thread Type
SM1 (1.035"-40) Internal Threads on Ports; M4/M6 Mounting Holes
