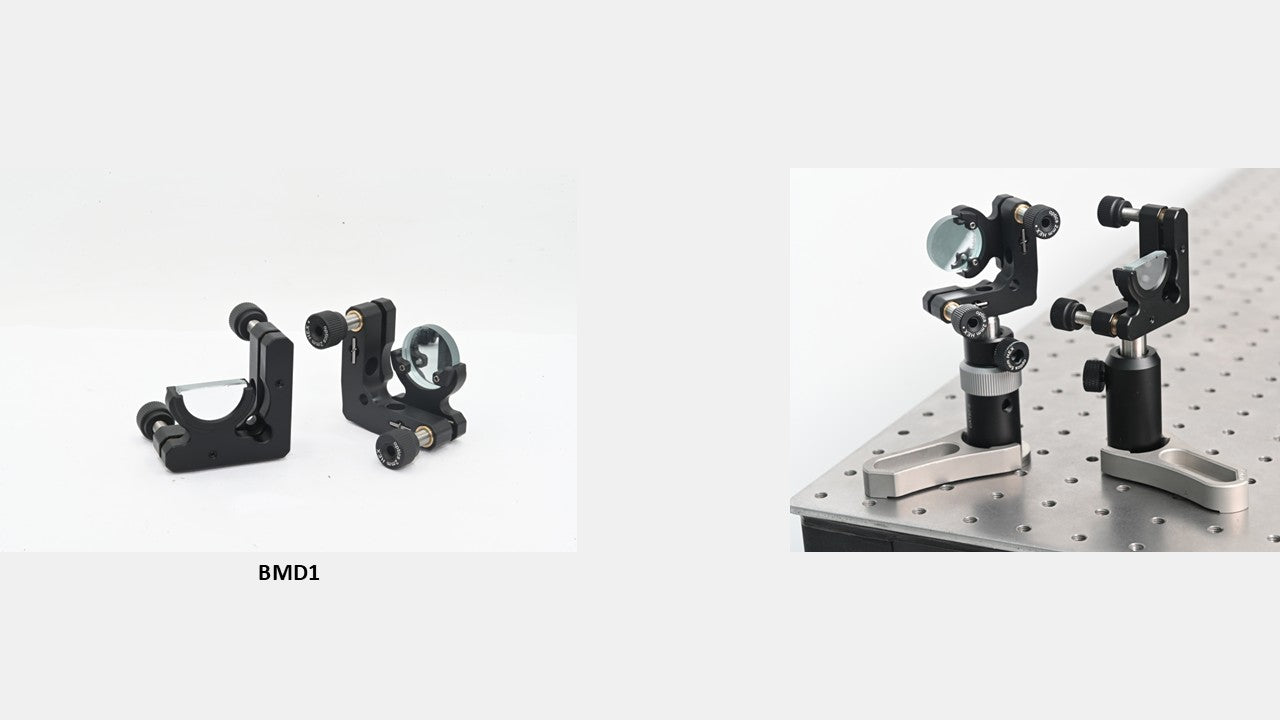

BMD1: Two-Axis Kinematic Mount for Ø1" D-Shaped Mirrors
• Designed for Ø1" (25 mm) D-shaped or round optics • Adjustment range: ±4° tilt (0.5° per knob rotation) • Can be mounted horizontally or vertically • Compatible with optics of thickness between 2.8 mm and 6.35 mm • Equipped with M4 countersunk holes for post mounting
The BMD1 is a precision mount designed for mounting Ø1" D-shaped or circular mirrors. Its two-axis tilt design allows fine angular adjustment while maintaining stability. The mount is suitable for both vertical and horizontal configurations, ideal for beam steering and alignment in optical setups.
Model
Dimensions (mm)
Compatible Optics
Adjustment Range
Mounting Holes
Weight
Material
BMD1
49.9 × 49.9 × 20.2
Ø25 mm D-shaped or round optics (thickness 2.8 mm – 6.35 mm)
