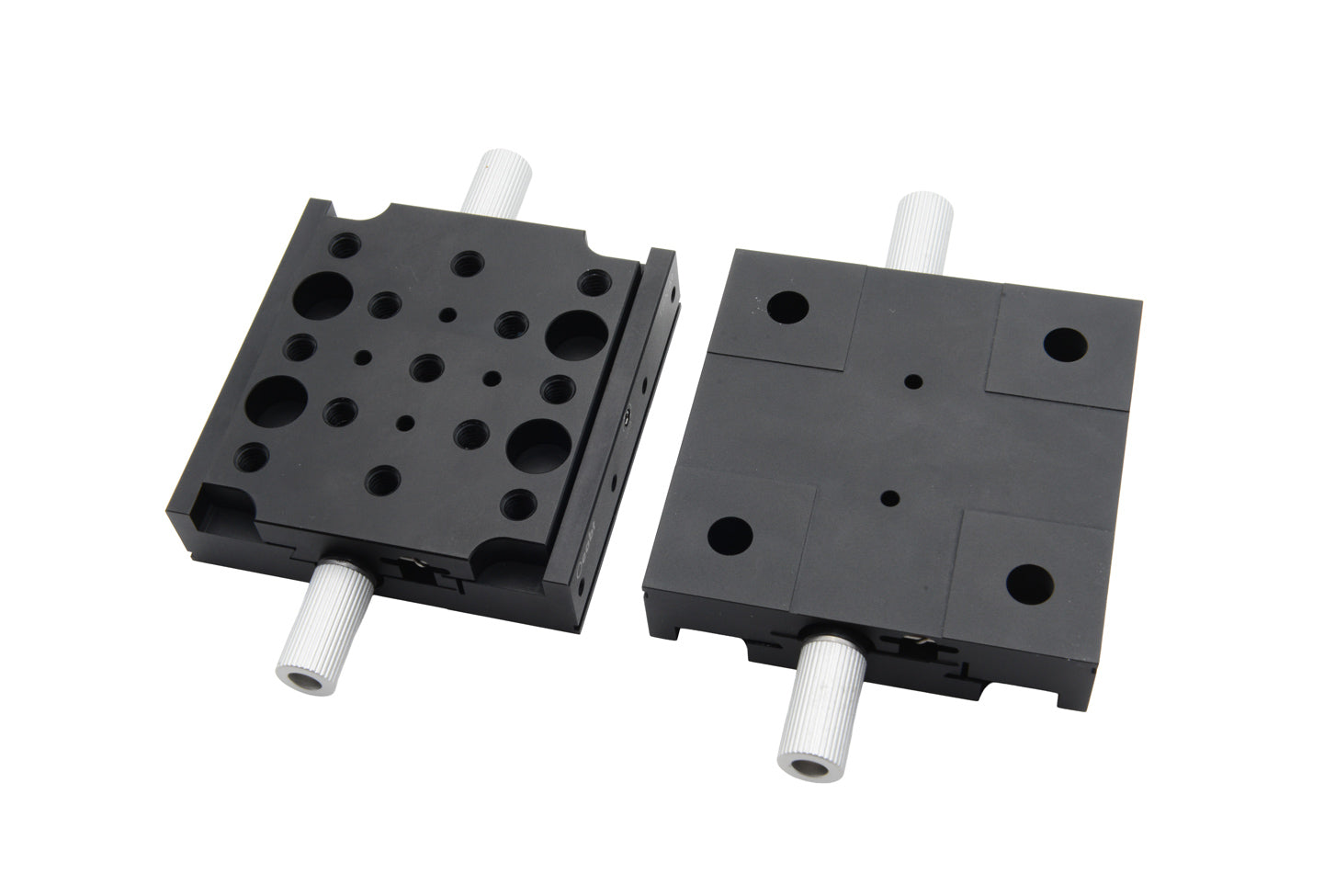

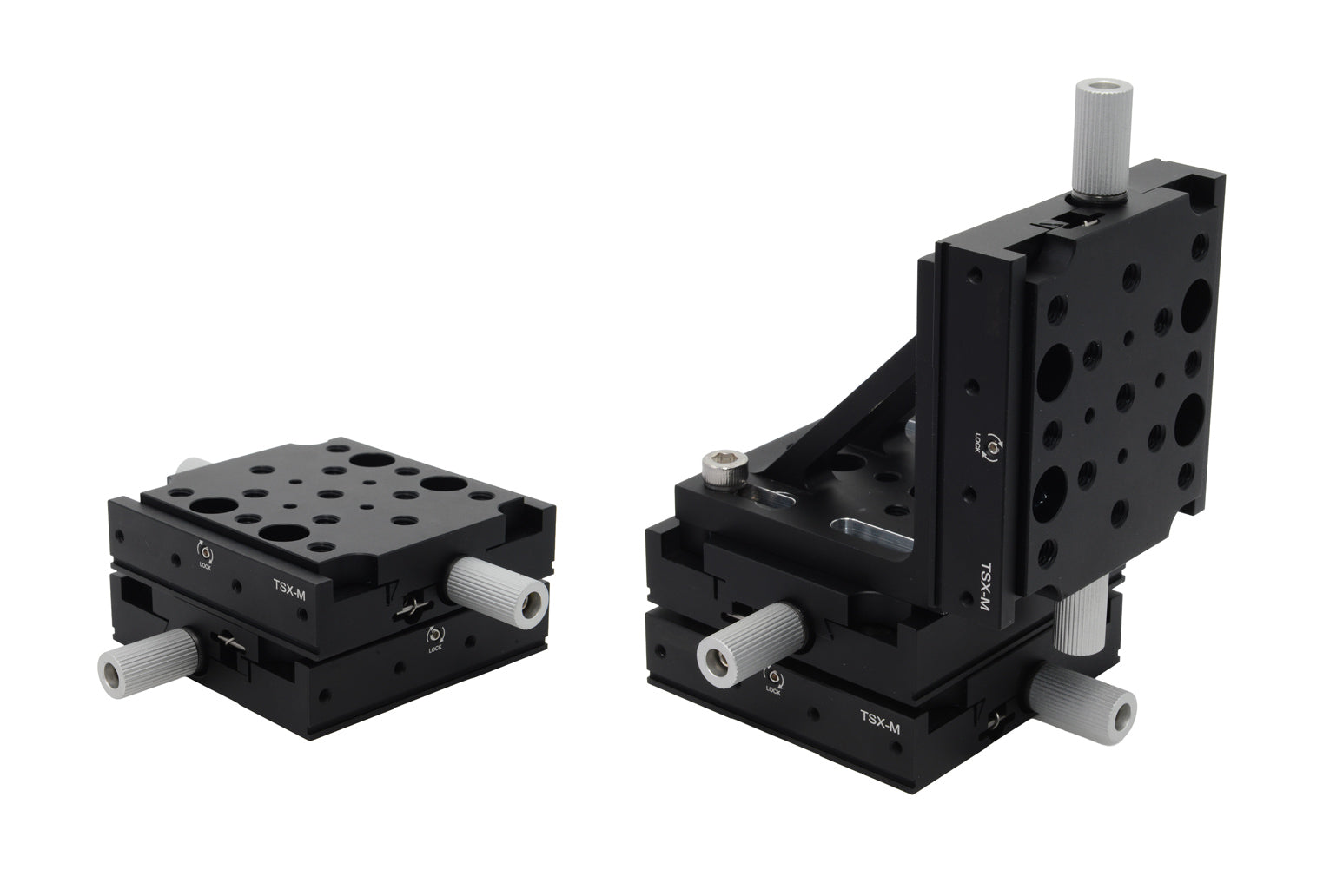

Product Description • Dovetail sliding bearing enables ±12.5 mm linear travel; • Travel adjusted via hand-tightened knobs on both ends; • Modular design allows for orthogonal stacking to build XYZ configurations; • Multiple threaded hole array on the stage surface maximizes mounting flexibility for motion components;

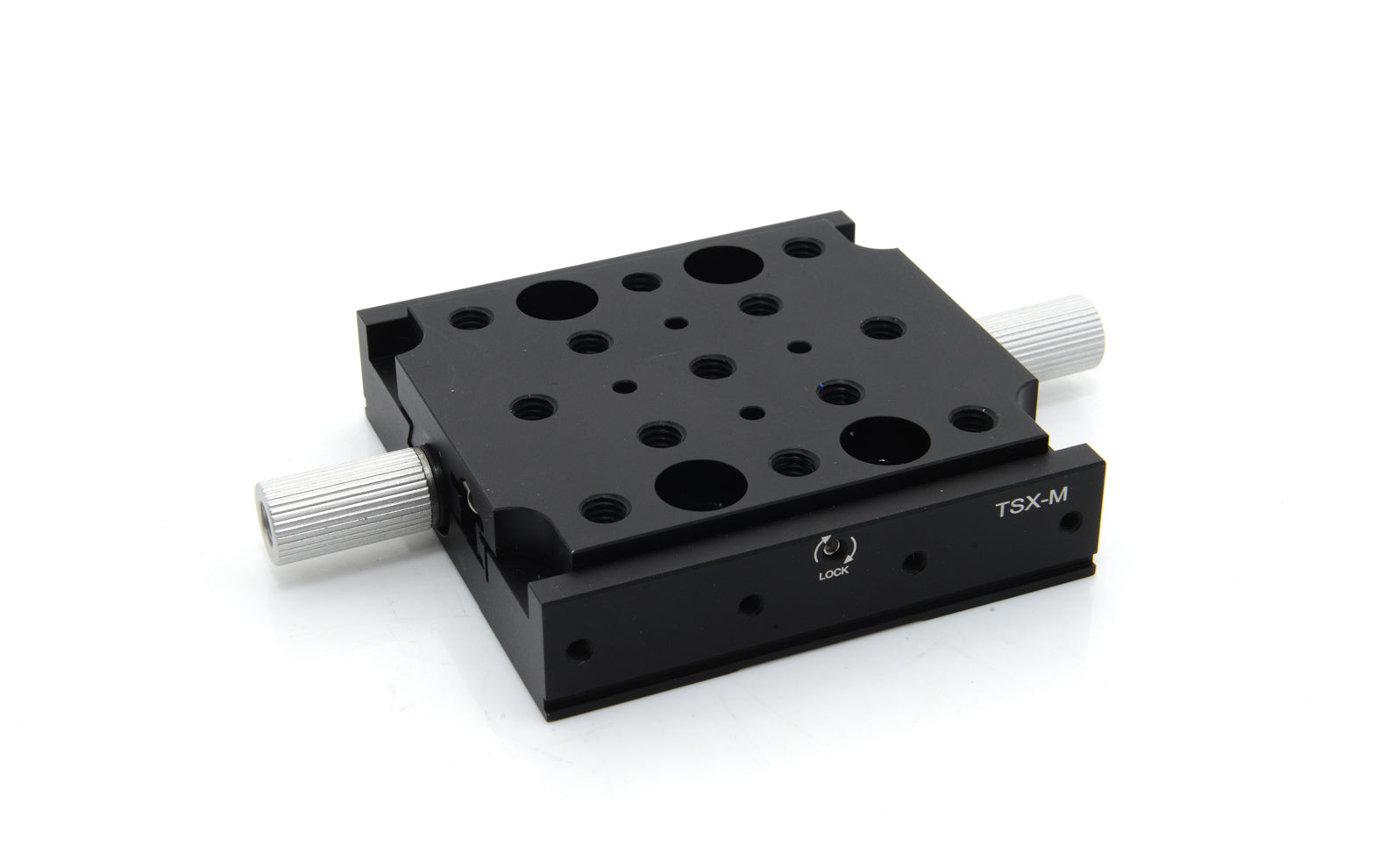

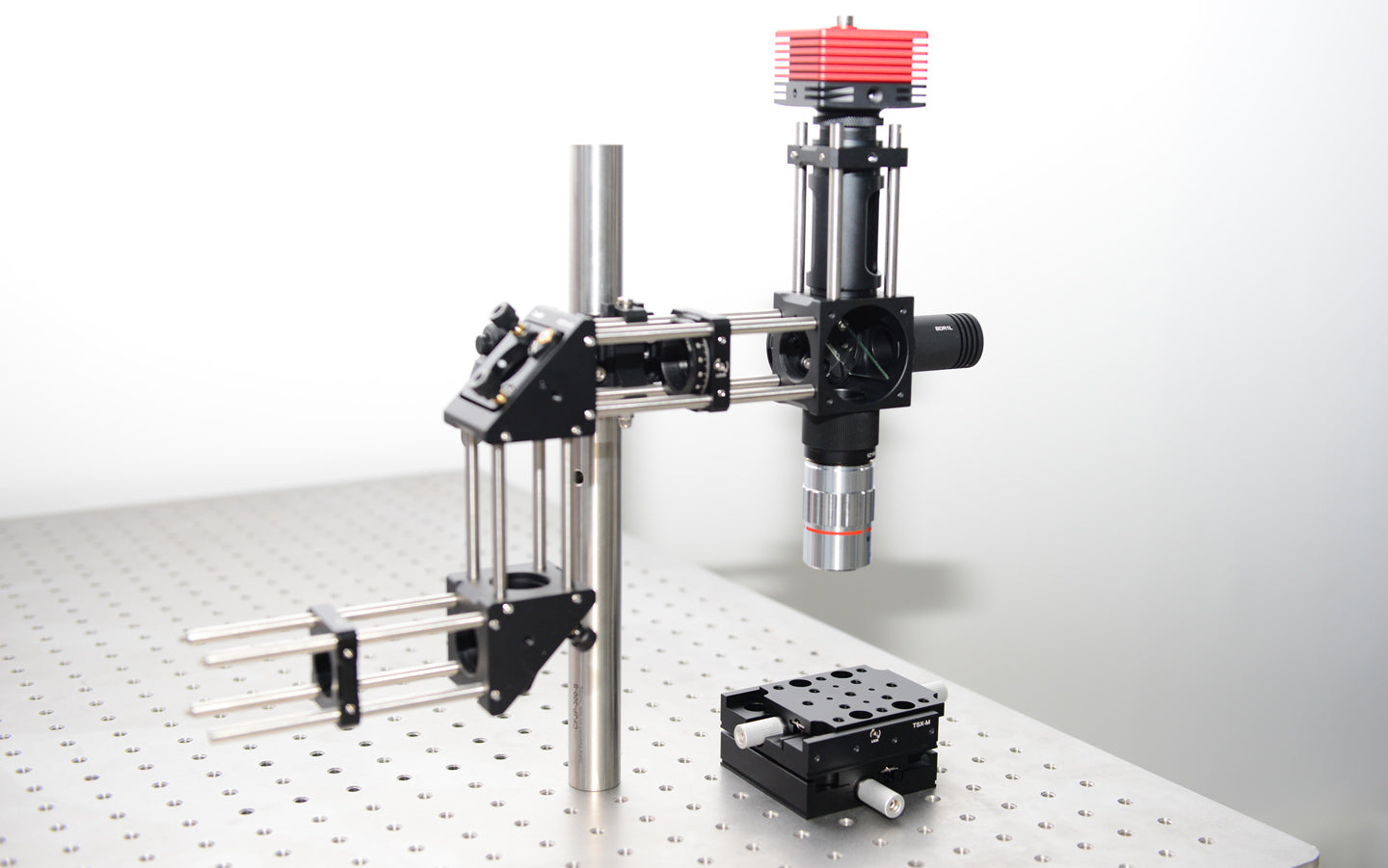

The TSX-M dovetail translation stage is suitable for general motion control applications, offering 25 mm total travel. It uses an M6 × 1 mm lead screw, providing smooth linear positioning throughout the travel range. Each full rotation of the lead screw translates the stage by 1 mm. A center screw on the side locking plate prevents accidental movement when tightened.
