• Holds optical components or thin plates with a thickness between 0.8 mm and 2.3 mm • Thumb-screw operated flexible design for quick clamping and release • Bottom-mounted M5 threaded hole for post mounting (includes M5-to-M4 adapter screw)

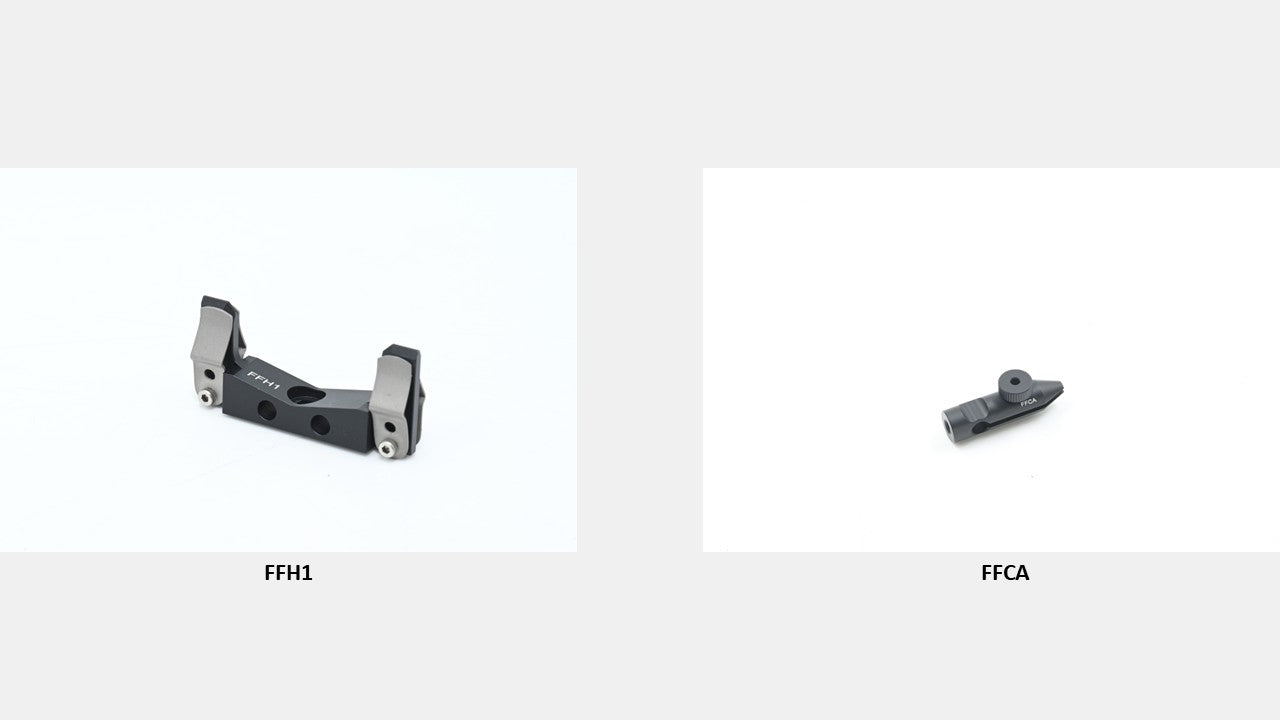

The FFCA series flexible clamp arms are compact mounting accessories designed for securely holding thin optical elements or plates such as color filters, ND filters, and calibration targets. They are ideal for setups where space is limited, and quick installation or removal is required.
Model
Dimensions (mm)
Clamping Range
Thread Hole
Weight
Material
FFCA
Ø12.5 × 46.1
0.8 – 2.3 mm
M5 × 1 (with M4 adapter)
11.1 g
7075 Aluminum Alloy
FFCA2
Ø12.5 × 46.1
0.8 – 2.3 mm
M5 × 1 (with M4 adapter)
6.7 g
POM Plastic
FFH1 Series: Dual-Slot Thin Plate Clamp Mount
• Simultaneously mounts two flat plates, holographic plates, or test targets • Max clamping thickness: 1 mm (0.5 mm each when holding two plates) • Can be directly mounted to Ø12 mm post via Ø4.8 mm countersunk hole • Can be stacked with additional clamp mounts via Ø4.5 mm through-holes

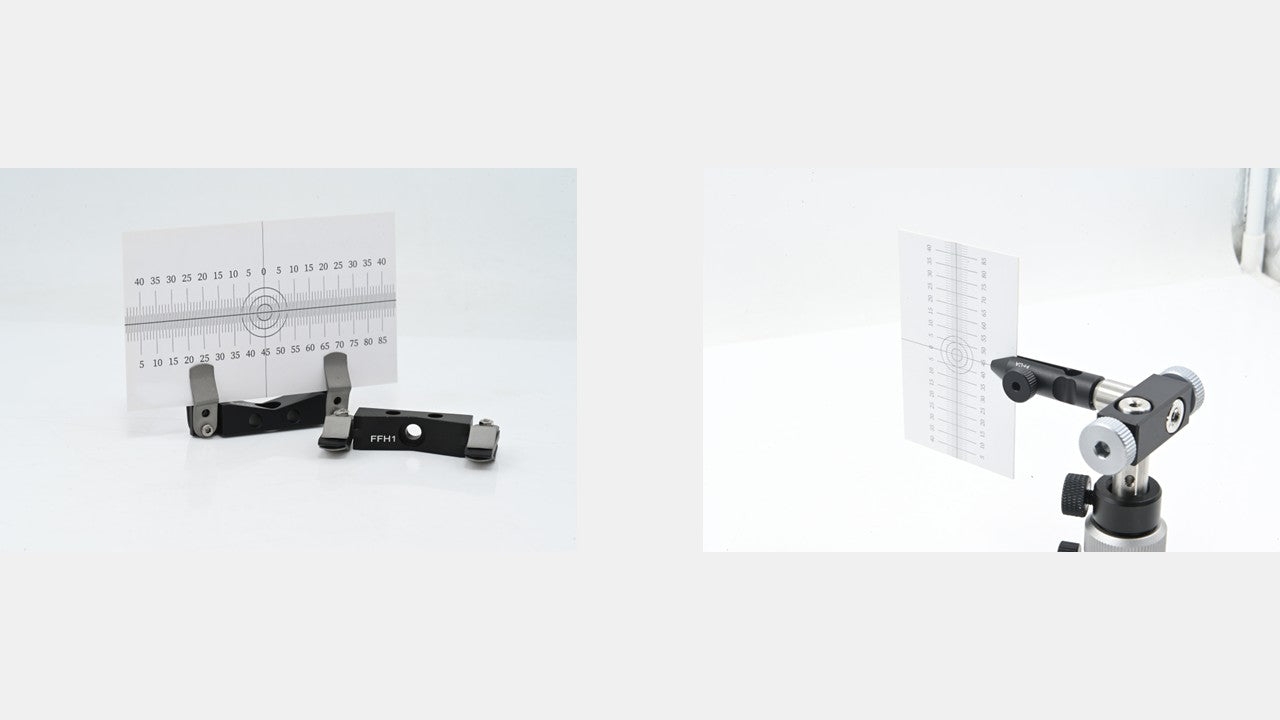

The FFH1 clamp mount is ideal for securely holding one or two rectangular flat optical elements. It supports plates with a minimum width of 35 mm and a maximum thickness of 1 mm (or two plates each ≤0.5 mm thick). Multiple mounts can be stacked using through-holes to accommodate multiple optics in compact setups.
