• True gimbal design: enables universal rotation about the optical center of the mounted element; • Supports Ø1 inch optical elements with a maximum thickness of 4.7 mm; • Fully compatible with 30 mm cage systems; • 360° rotation optical component mount; • In system use, the optic holder can rotate ±30° around its center;

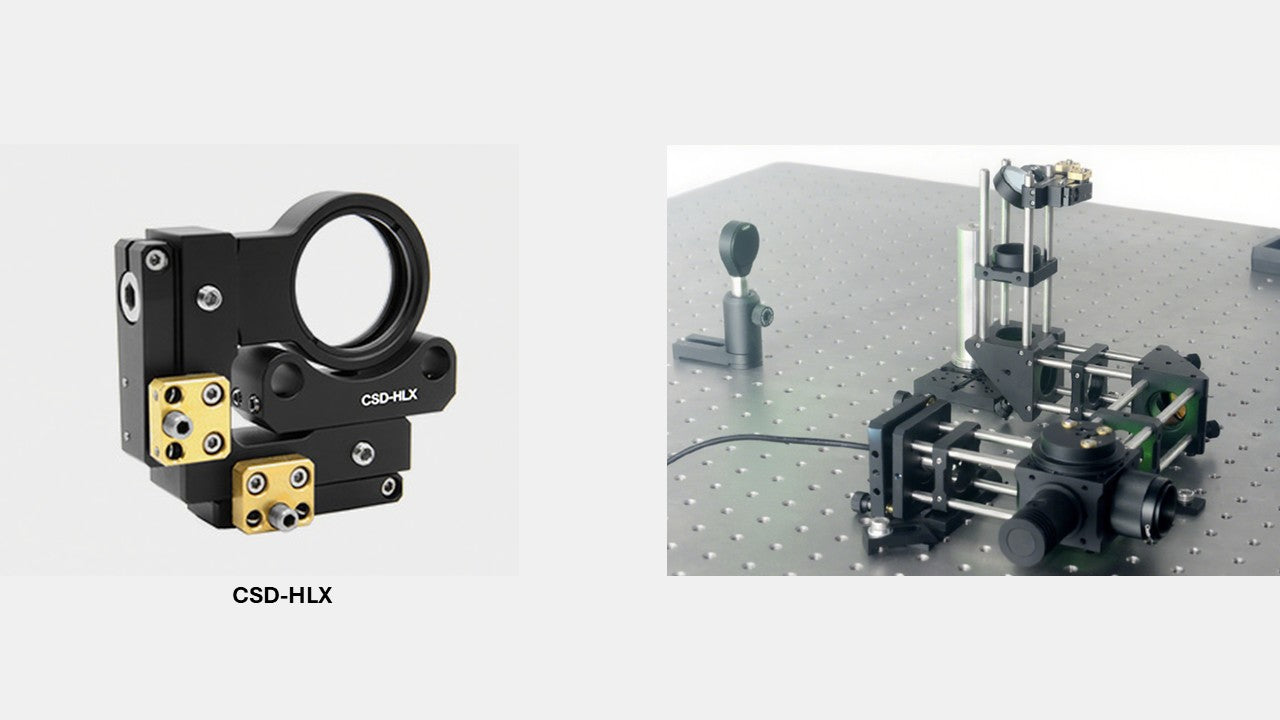

The CSD-HLX is a precision gimbal mount that allows optical components to rotate freely about a single pivot point at the center of the cage system—delivering true universal (gimbal) motion.
Model
CSD-HLX
Dimensions
59.2 mm × 12.9 mm × 55.0 mm
Adjustment Range
360° coarse rotation;
Fine tuning via 100 TPI adjuster, 13 mrad per turn
