• Pure rotational motion around a virtual pivot point.
• Edge markings with 1° graduation.
• Backlash-free, spring-loaded design with interchangeable actuators.
• The platform can be fully locked using side-mounted locking screws.

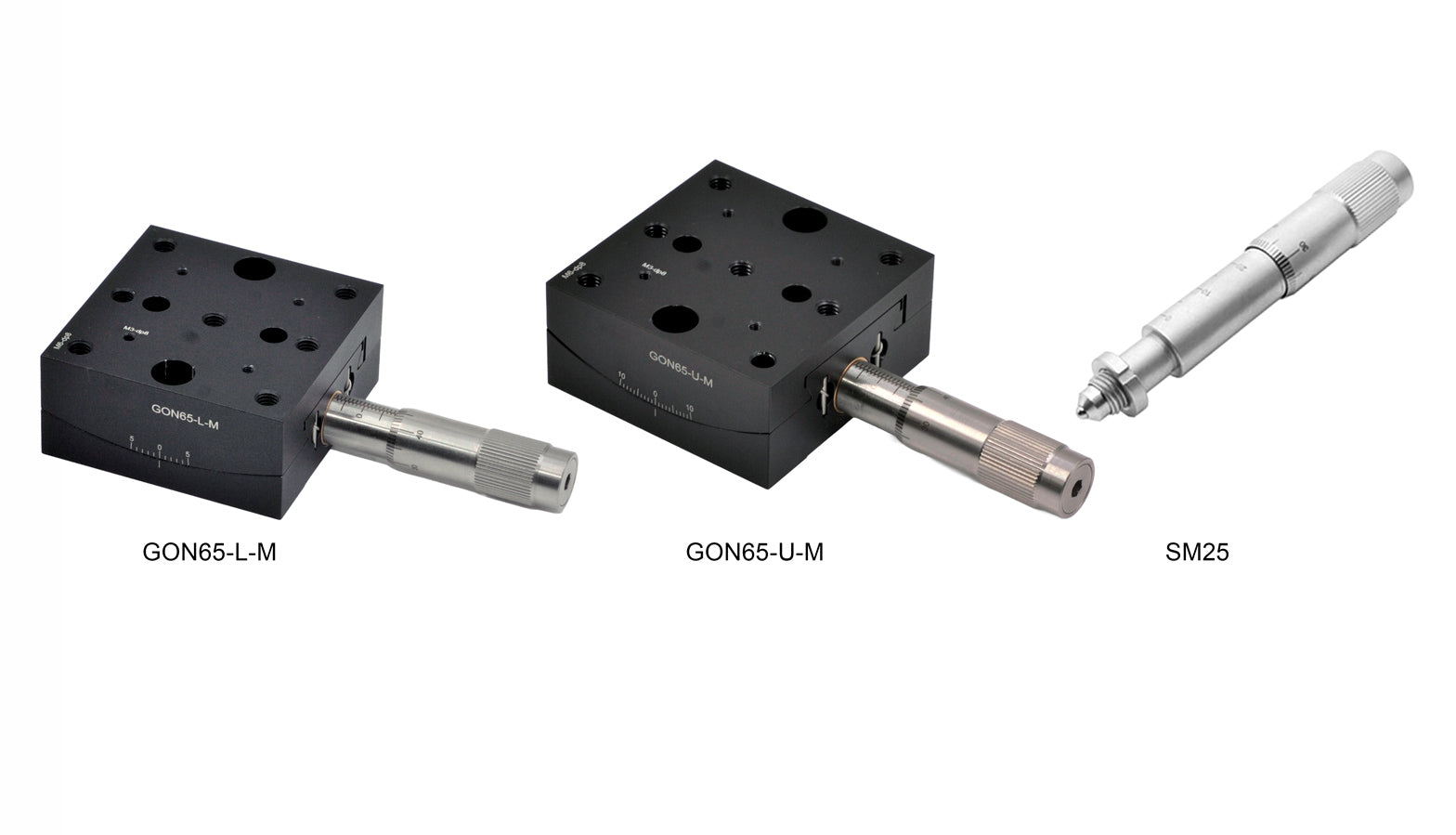

• When used with a 20mm micrometer head, the GON65-L-M provides ±5° of rotation; the GON65-U-M provides ±10° of rotation.

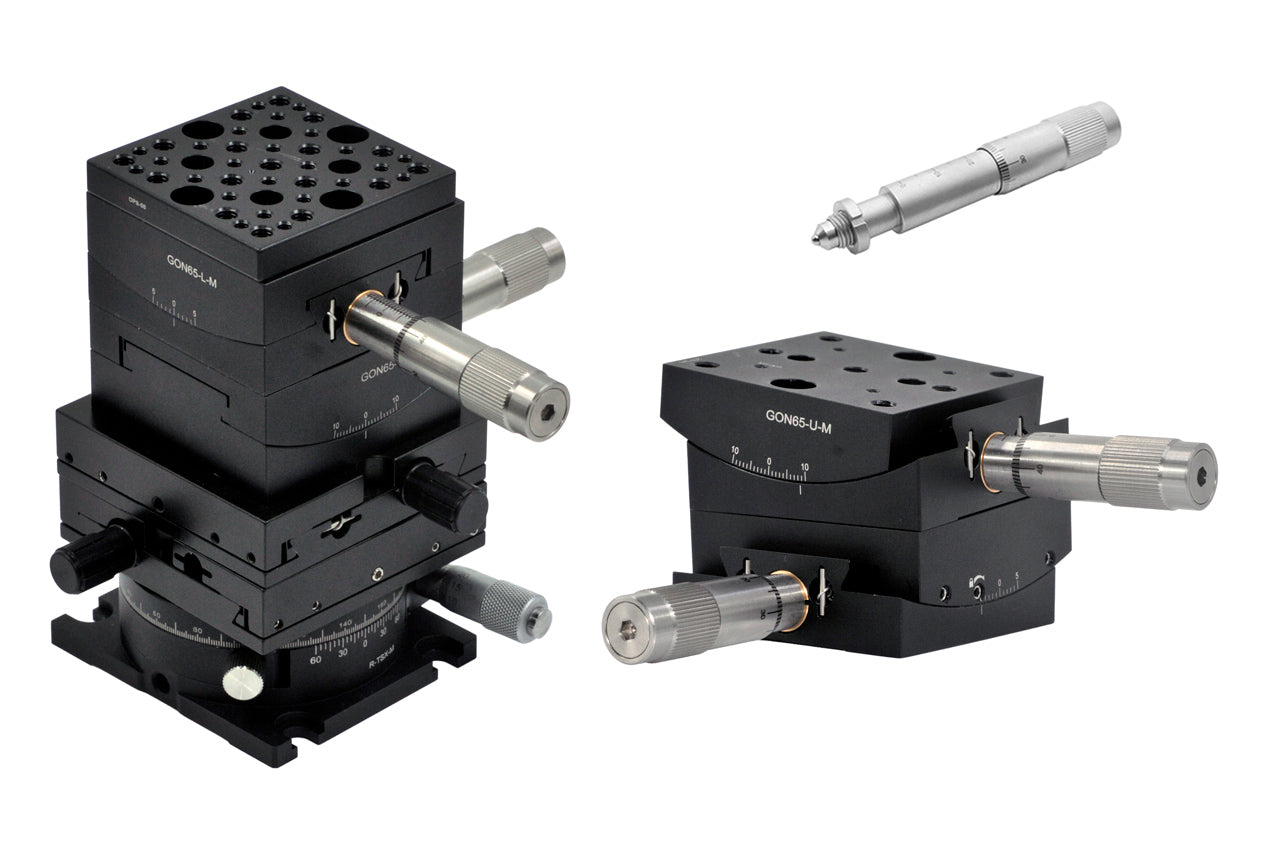

The GON65 Series Goniometric Stage is designed for precise angular rotation over a small range, rotating about a fixed virtual point in space.

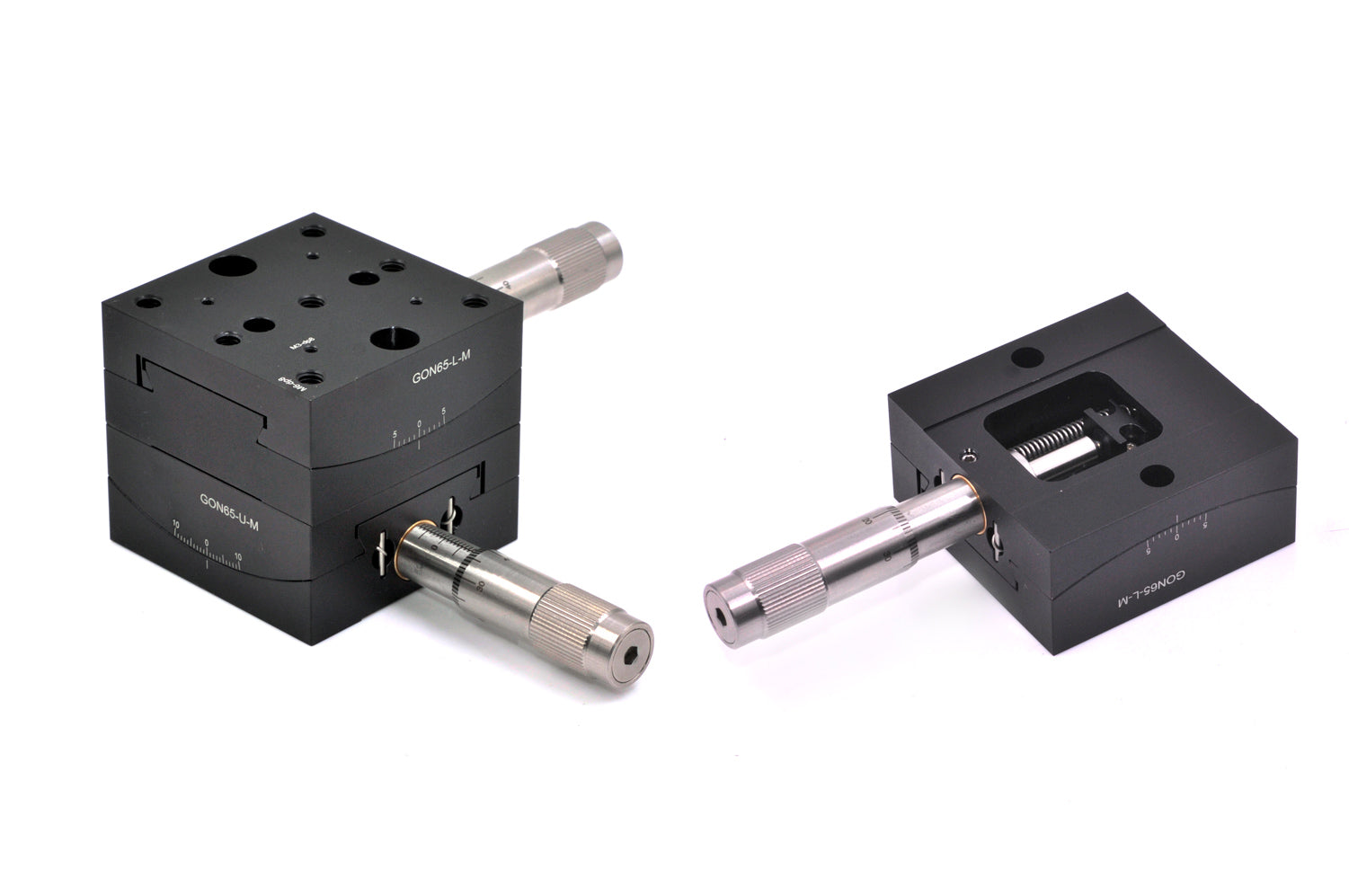

The GON65 stages use a precision dovetail slide driven by an actuator and spring-loaded mechanism, which reduces backlash typically seen in worm gear-driven stages.
The spring-loaded design also offers the benefit of interchangeable actuators, allowing users to select from various options—such as precision adjustment screws, differential micrometers, or motorized actuators—depending on the desired adjustment sensitivity.
