- High-density M6 threaded hole array with 12.5 mm spacing
- Black anodized aluminum finish to minimize reflections
- Countersunk holes for downward mounting
- Available in multiple sizes

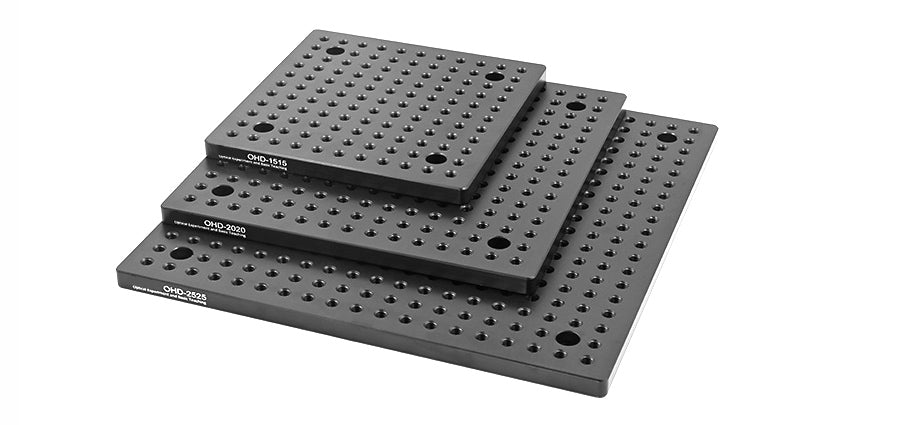

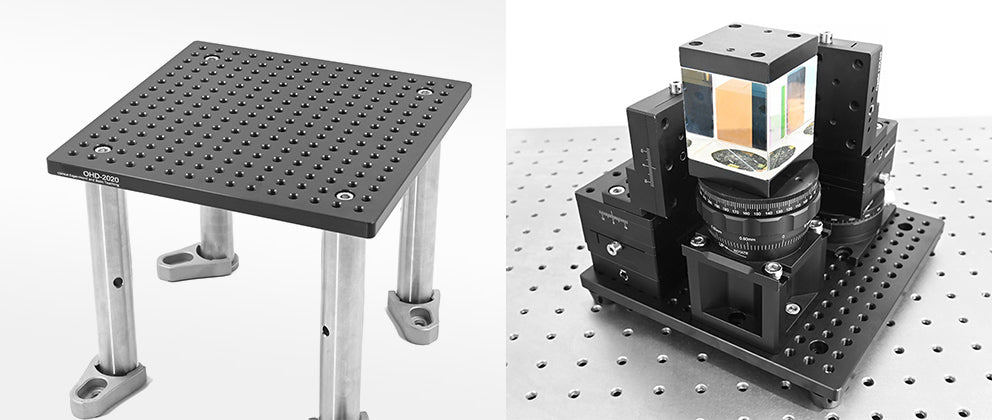

This series of optical breadboards is specifically designed for setups with limited space. The high-density threaded holes allow for the placement and support of various optical components, optical devices, and experimental apparatuses.
- Panel thickness: 10.2 mm
- Thread spacing: 12.5 mm
- Countersink type: M6 (4 positions)
- Material: 7075 aluminum alloy
| Specification | OHD1515 | OHD2020 | OHD2525 |
|---|---|---|---|
| Dimensions | 150mm*150mm*10.2mm | 200mm*200mm*10.2mm | 250mm*250mm*10.2mm |
| Thread type | M6 (117 positions) | M6 (221 positions) | M6 (357 positions) |
| Weight | 530.5g | 938.5g |
1469.0g |
