Product Description • Coarse rotation range: 360°; rotation disk engraved with 1° increments; • Micrometer and vernier scale enable ±5° fine adjustment; vernier scale resolution 5 arcmin; • 6 × M6 threaded holes and 1 × M4 threaded hole in a regular pattern, with a central SM1 thread (1.035"-40); • M4 threaded holes on the platform allow installation of PRK1-A / PRK2-A clamping arms; • SM1 threaded center hole supports Ø1 inch (25.4 mm) optics, up to 15 mm maximum thickness; • Load capacity: coarse adjustment 25 lbs (11.4 kg), fine adjustment 3.75 lbs (1.7 kg);

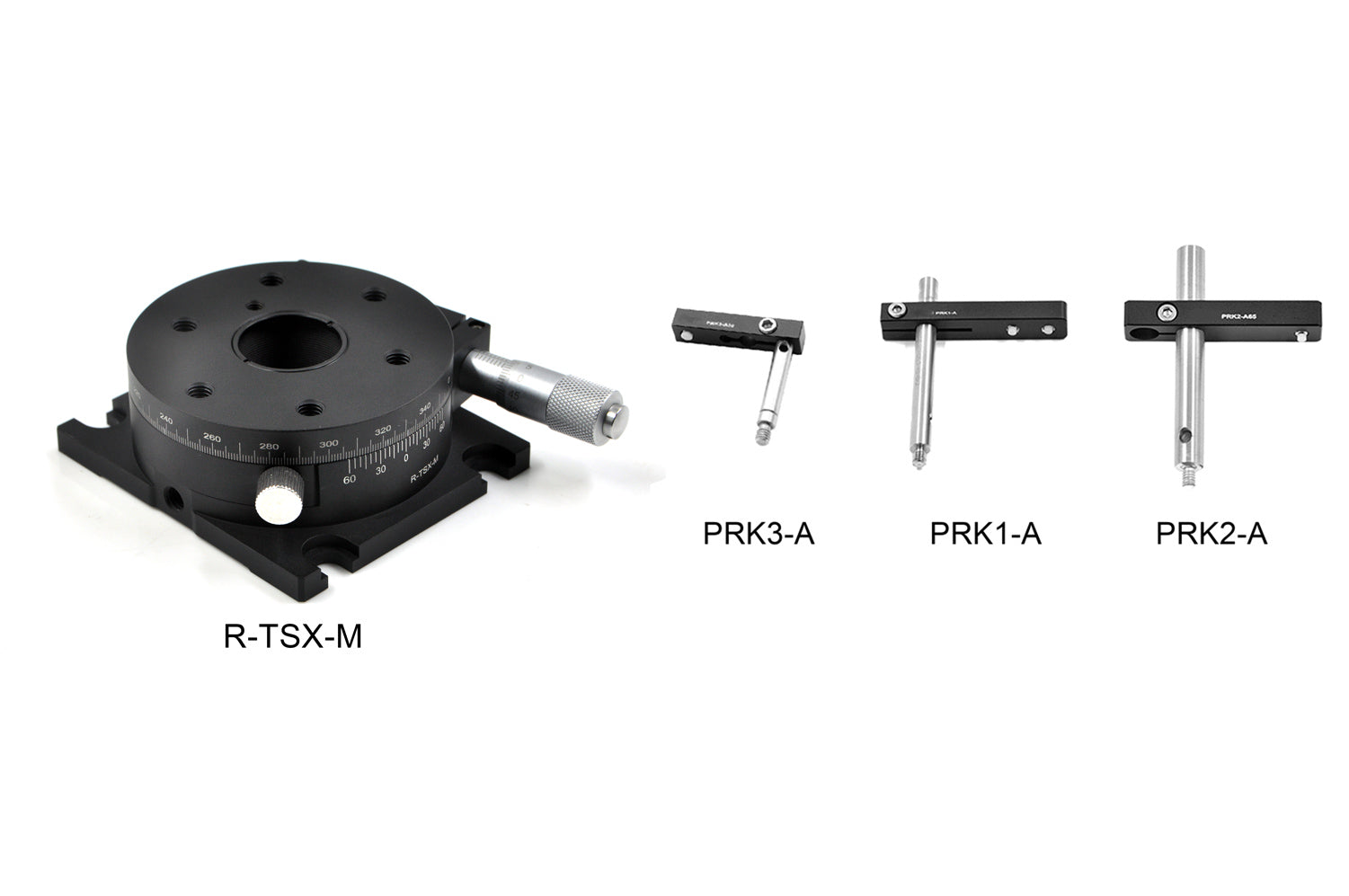

The R-TSX-M Rotary Mount is a heavy-duty rotation stage designed for fine rotational adjustment of optical components, standard opto-mechanical assemblies, and 30 mm cage systems.
Product Description - Clamping Arms
• Provides clamping force for platform-mounted adjustment holders; • Flexible clamping mechanism; • M4 threaded rod base;

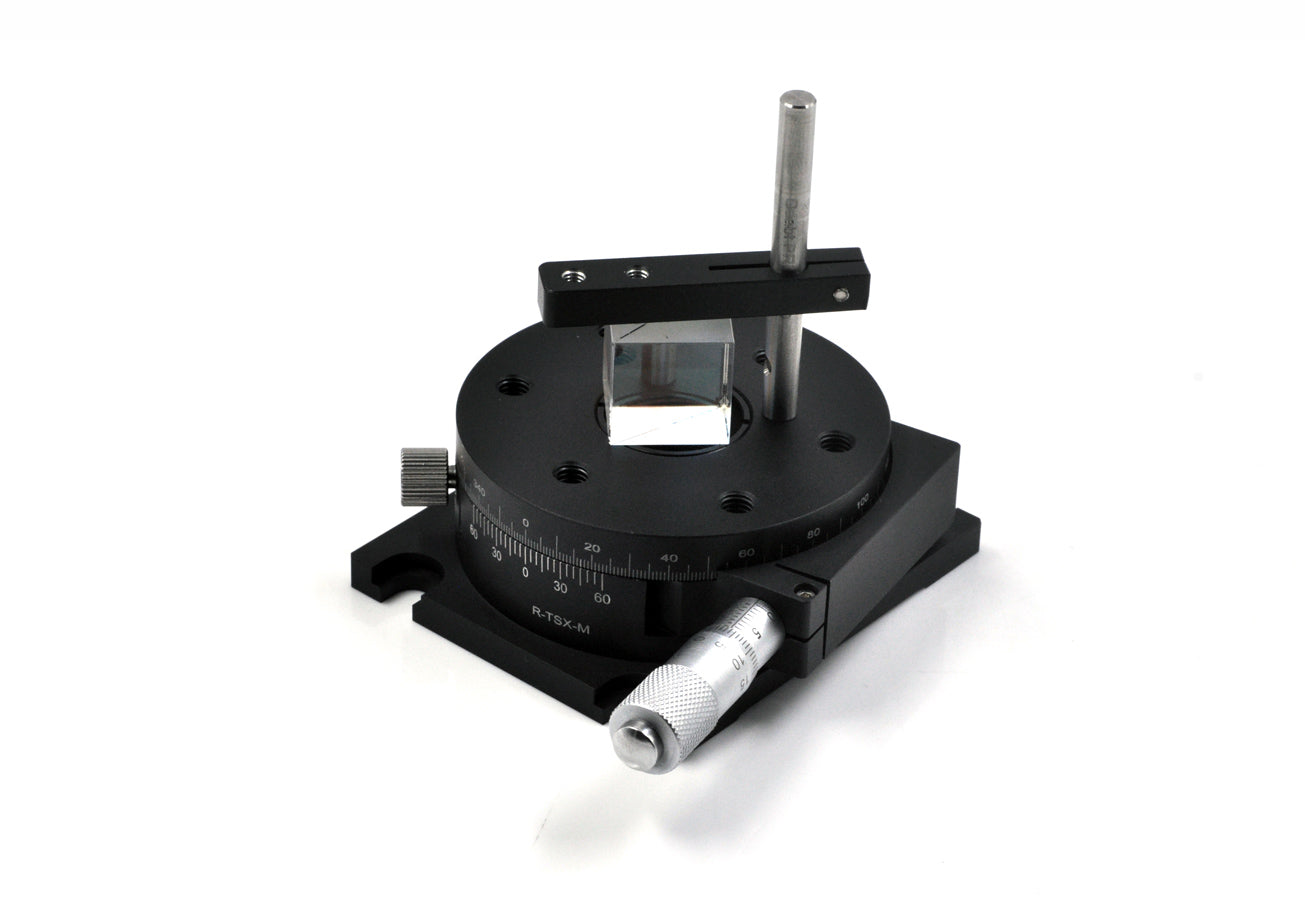

The clamping arm secures the optical element onto platform-mounted optical adjustment holders or V-groove clamps using a nylon-tipped set screw with a 2 mm hex. The flexible mechanism of the clamping arm is locked onto the mounting rod using a 2.5 mm ball driver or hex key. The mounting rod also features a through-hole for applying additional torque during tightening.
