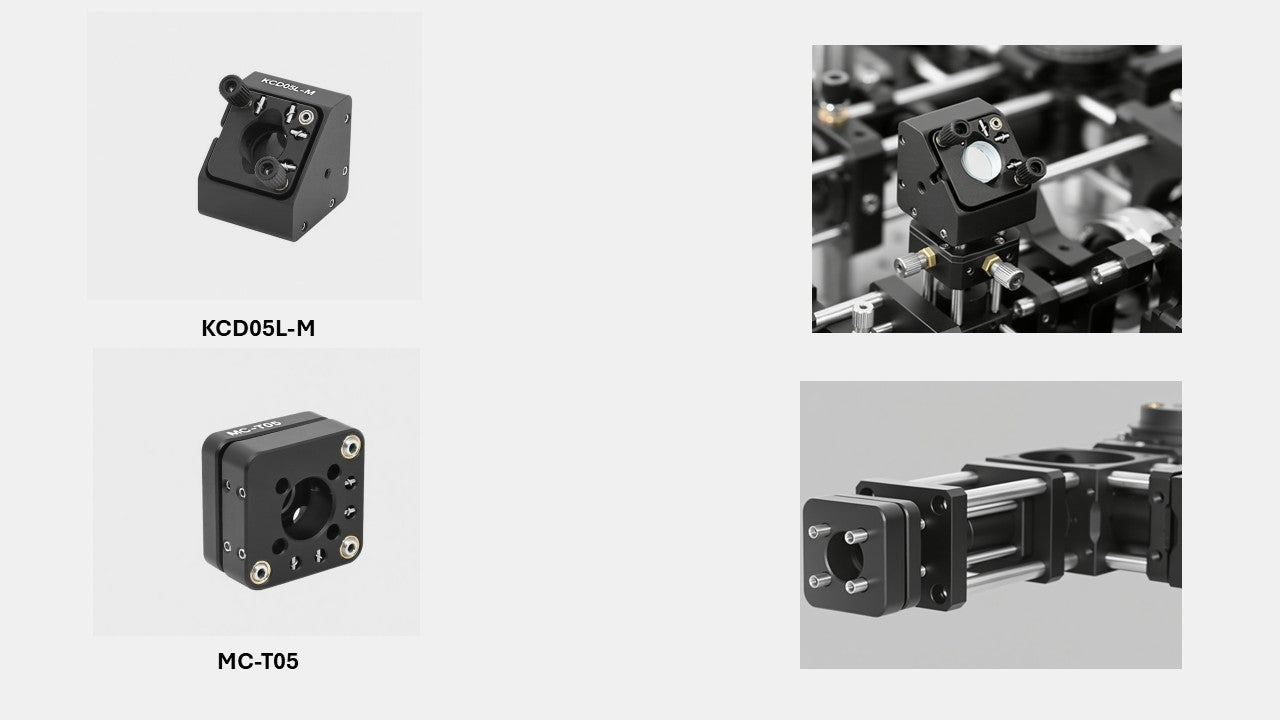

KCD05L-M 45° Adjustable Mirror Mount (for 16 mm Cage Systems, SM05-Compatible)
• Holds optical elements at a fixed 45° angle relative to the optical axis. • Provides ±3° tip and tilt adjustment for fine angular alignment. • Accepts Ø12.7 mm optics with thickness ≥ 3 mm. • Features eight smooth bore holes (depth 5.1 mm) for Ø4 mm SPCM cage rods. • SM05 (0.535"-40) internal threading for lens tube integration. • Compatible with 16 mm cage systems and Ø1/2" lens tubes.
The KCD05L-M Right-Angle Adjustable Mount is designed for mounting Ø1/2" optics at a 45° angle to the optical axis while allowing ±3° angular adjustment in both pitch and yaw. Precision alignment is achieved using fine M3 × 0.25 mm screws, offering a sensitivity of 2.30 mrad per turn. This makes the mount ideal for steering beams or inserting mirrors, filters, and beamsplitters in compact optical setups.
MC-T05 Tip/Tilt Adjustable Mount (SM05-Compatible for 16 mm Cage Systems)
• SM05 (0.535"-40) internal threading; includes two CSK05 retaining rings. • Provides ±2.5° of tip and tilt angular adjustment. • Accepts Ø12.7 mm optics up to 3.6 mm thick. • Compatible with 16 mm cage systems. • M4 tapped hole on the bottom for post mounting.
The MC-T05 is a precision angular adjustment mount specifically designed for 16 mm cage systems. It allows ±2.5° of deflection or tilt for mounted Ø1/2" optical elements, offering fine adjustment capability in compact optical assemblies. Optics are secured using the included retaining rings and adjusted via precision flexure or screw mechanisms. Ideal for aligning beamsplitters, mirrors, or other optics that require angular control.
