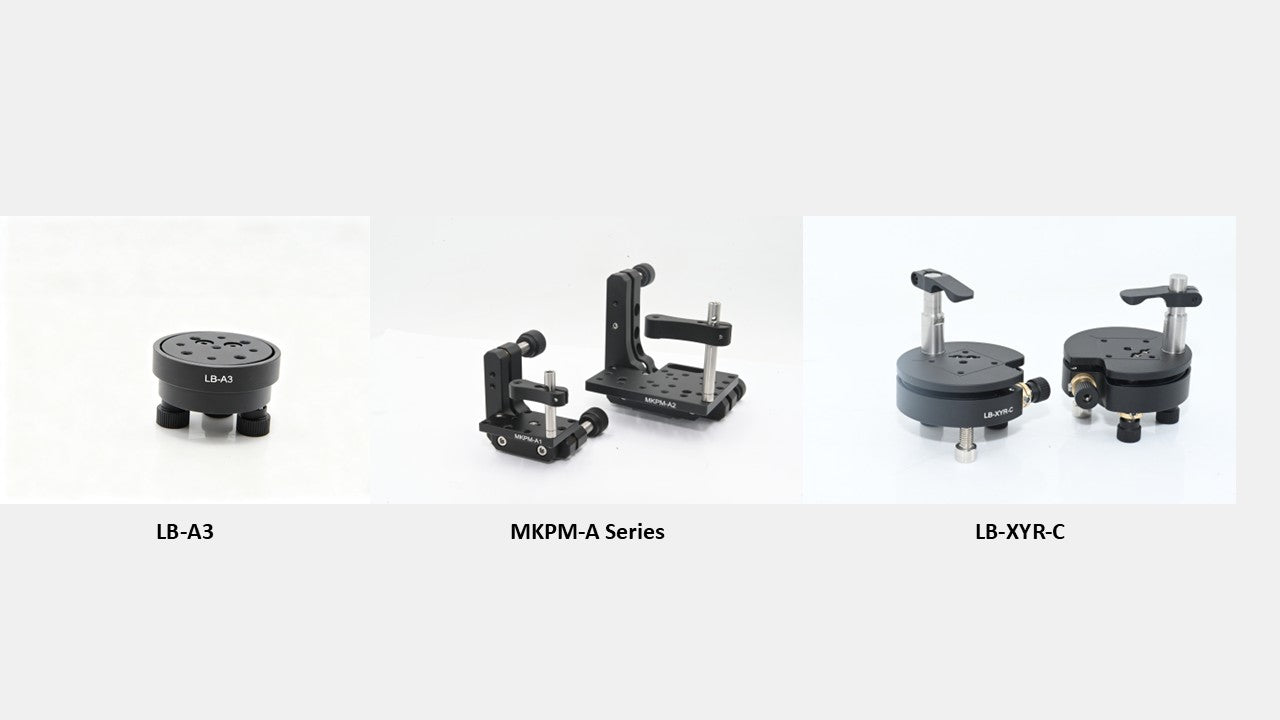

• Mount prisms, beamsplitters, and non-standard optical components • ±4° tip/tilt angular adjustment • Mounting platform parallel or perpendicular to actuator, includes retaining arm • M4 counterbore for optical post mounting

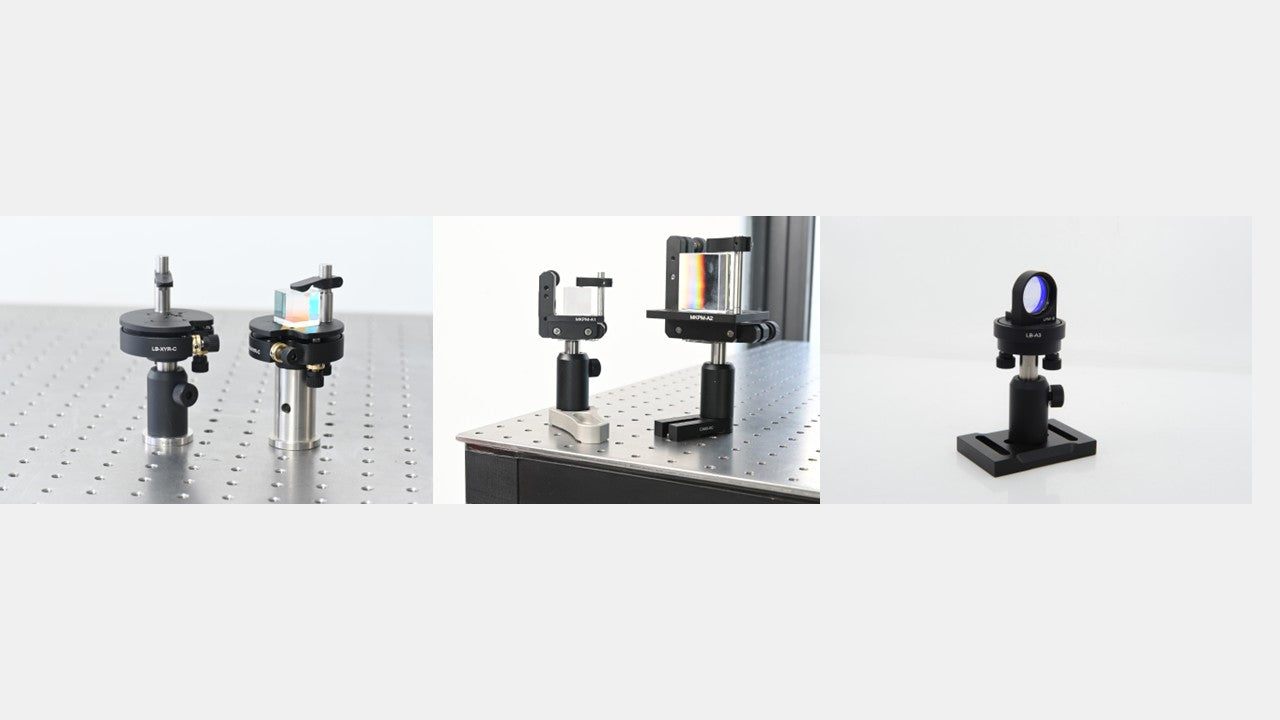

This optical platform adjustment mount includes a compact retaining arm and provides a large mounting surface with unobstructed beam paths. Ideal for prism and beamsplitter integration.
Model
MKPM-A1
MKPM-A2
Size
49.9 mm × 49.9 mm × 34.9 mm
76.4 mm × 76.5 mm × 53.8 mm
Holding Height
≤24.6 mm
≤40.9 mm
Mounting Platform
41.1 mm × 25.4 mm, 8 × M4 threads
69.9 mm × 54.4 mm, 21 × M4 threads, 2 × Ø4.8 mm through holes
Adjustment Range
±4° tilt/pitch
±4° tilt/pitch
Adjustment Precision
0.5° per turn (8 mrad)
0.5° per turn (8 mrad)
Counterbore Type
2 × M4
6 × M4
Weight
88.0 g
184.3 g
Material
7075 Aluminum Alloy
7075 Aluminum Alloy
LB-XYR-C Prism Adjustment Mount
• Three-axis tilt adjustment, ±5° pitch and yaw • Supports prism, beamsplitter, or non-standard optics with mounting height 17.5–28.0 mm • Lockable M5×0.25 fine-pitch adjustment screws
The LB-XYR-C prism mount is designed with a rotation axis intersecting the center of the reflective surface of the mounted optic. This design eliminates unwanted linear beam translation during alignment, making it ideal for precision alignment of prisms and beamsplitting optical components.
Model
LB-XYR-C
Size
Ø57.2 mm × 68.9 mm
Adjustment Range
±5° pitch/yaw
Holding Height
17.5 mm – 28.0 mm
Thread Types
Platform: 4 × M3, 1 × M4Base: 1 × M4
Weight
139.2 g
Material
Aluminum Alloy + Stainless Steel
LB-A3 Tilt & Z-Axis Adjustment Mount
• Provides ±4° tilt adjustment and ±2 mm Z-axis translation • Ideal for mounting prisms, rectangular, or circular optics using clamp arm or optic holder • Multiple threaded holes on the top surface for flexible component mounting • Bottom M4 threaded hole for post mounting in free-space setups
The LB-A3 tilt mount features three precision actuators on the rear side to provide stable tilt control and fine height adjustments. It supports both tilt and vertical displacement for a wide range of optical alignment needs.
