• Designed for clamping square or rectangular optical elements • Optical elements with thickness ≥ 1 mm can be fixed to the front plate via nylon-tipped screws • Provides ±4° of tilt/rotation adjustment • Fixed height options for 1 inch or 2 inch mounting available • RMH-X model supports adjustable height and is compatible with rectangular optics up to 32.5 mm tall and 65 mm wide

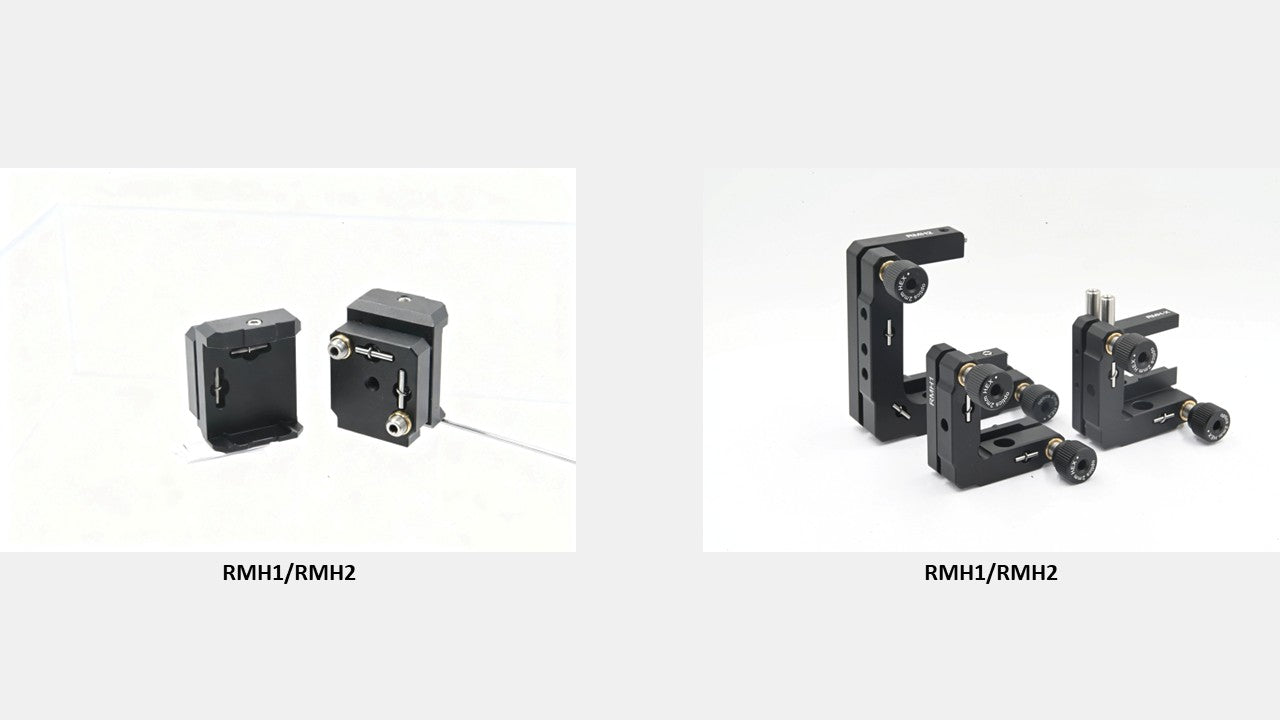

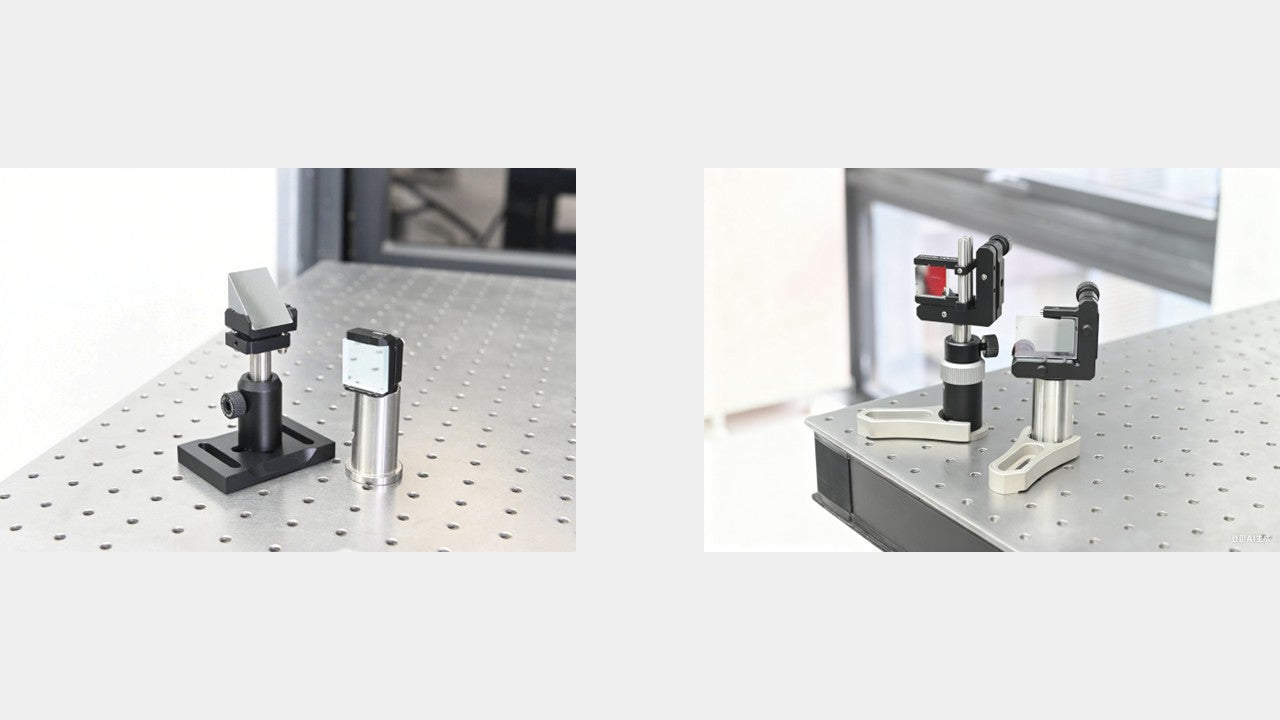

The RMH series mirror mounts are tailored for square and rectangular optical elements such as square mirrors, diffraction gratings, plate beamsplitters, and cylindrical lenses.
Model
RMH1
RMH2
RMH-X
Size
49.1 mm × 19.8 mm × 49.9 mm
78.3 mm × 22.5 mm × 76.5 mm
49.9 mm × 19.0 mm × 55.3 mm
Mounting Height
25.4 mm / 25 mm
50.8 mm / 50 mm
≤ 32.5 mm
Fixing Method
Nylon-tipped screw
Clamping arm
Clamping arm
Adjustment Range
±4° tilt/pitch
±4° tilt/pitch
±4° tilt/pitch
Adjustment Precision
10.2 mrad/rev
10.2 mrad/rev
10.2 mrad/rev
Weight
65.7 g
117.5 g
87.5 g
Material
7075 Aluminum Alloy
7075 Aluminum Alloy
7075 Aluminum Alloy
MSS-1 Rectangular Optics Tilt Mount
• Mounts square or rectangular optics with a height of 1 inch (25.4 mm) or 25 mm • Compatible with optics thickness ≥ 3.0 mm • Provides ±4° tilt/pitch adjustment • Base includes M4 threaded holes for mounting to Ø12 mm optical rods
The MSS-1 mount allows for two-axis tilt adjustment (pitch and yaw) with a range of ±4°, featuring a precision of 21.63 mrad per revolution.
