Product Description • Comes with built-in M4 mounting holes. • Directly mounts Ø1 inch mirrors; mount aperture diameter: Ø25.7 mm; compatible mirror thickness: 2–10 mm. • Manual XYZ three-axis adjustment design with ±4° tilt capability. • Constructed from high-strength stainless steel. • Differential adjustment rods equipped with adjustment knobs and locking nuts.

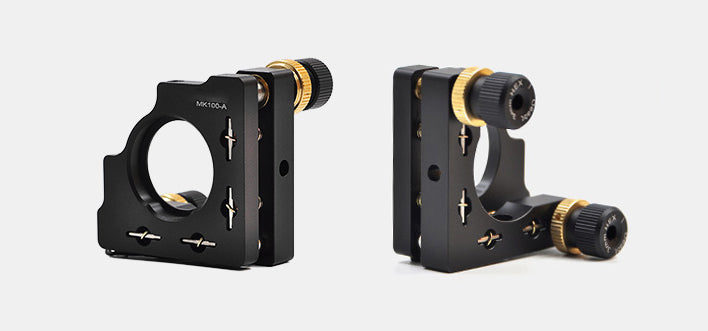

This is a standard two-axis optical mount designed for Ø1 inch optical mirrors. By adjusting the two screws, the mirror can be tilted and pitched, with an angular adjustment range of ±4° per axis. The mount is adaptable for both left- and right-handed operation. It can be securely fixed to various post holders using the M4 threaded holes. Compared to typical optical mounts, this precision mount features a thicker back plate and stronger springs, significantly enhancing stability.
