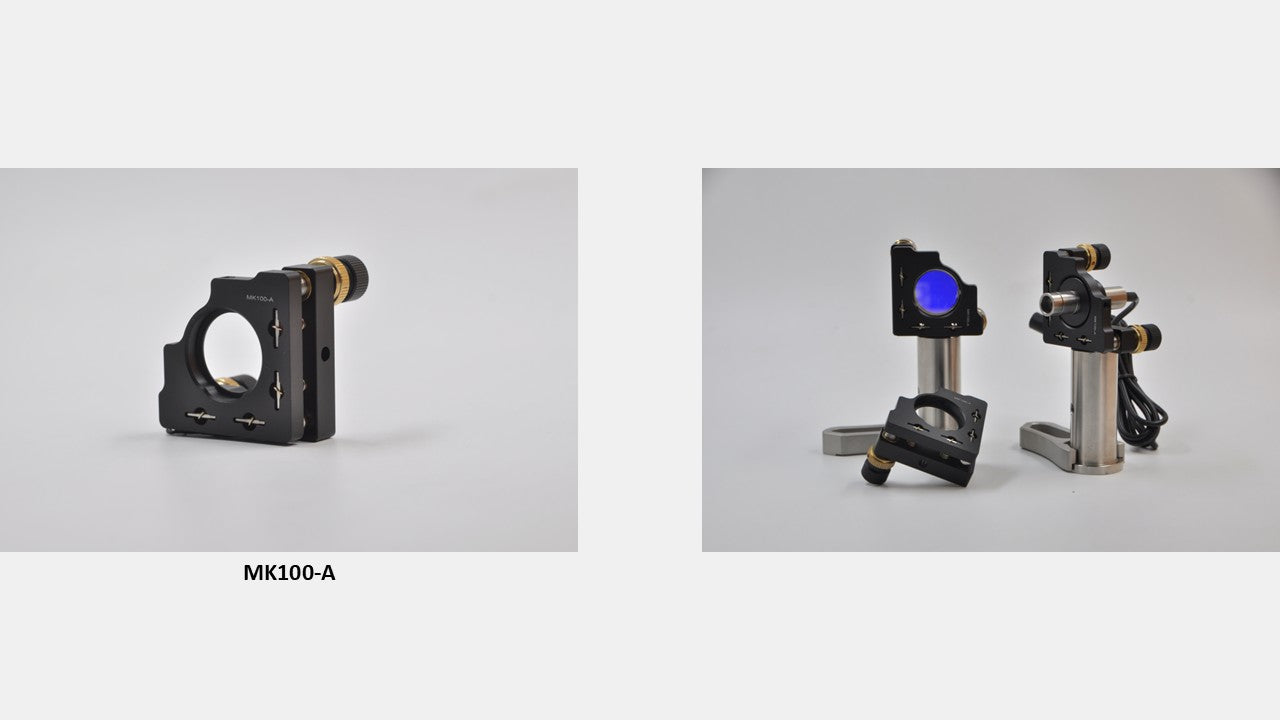

Precision Two-Axis Optical Mount – Ø1" Optics Compatible
• Integrated M4 mounting holes • Directly mounts Ø1" optics; clear aperture: Ø25.7 mm; supports thickness: 2–10 mm • Manual micrometer adjustment for tilt/pitch: ±4° • Built with high-strength stainless steel • Equipped with differential micrometer screws, adjustment knobs, and locking nuts
This standard two-axis precision mount is designed for Ø1" optics and allows fine angular adjustment via two micrometers—each providing ±4° of tilt or pitch. The mount is compatible with both left- and right-handed configurations and can be securely attached to standard Ø12 mm post holders using the integrated M4 mounting holes. Compared to conventional mounts, this version features a thicker rear plate and stronger springs, ensuring enhanced mechanical stability.
