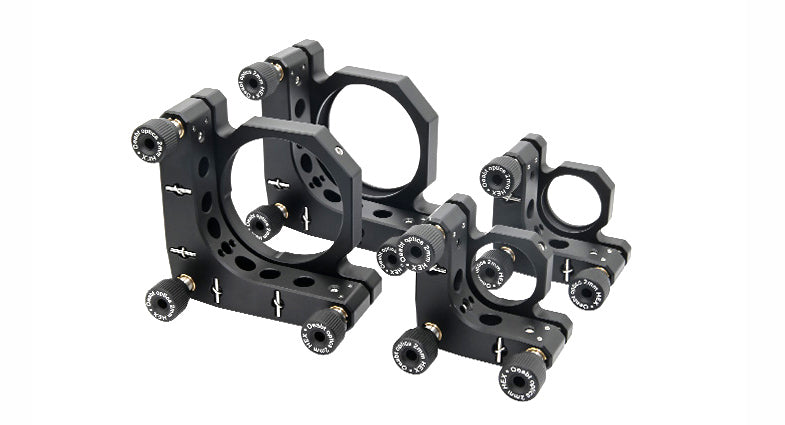

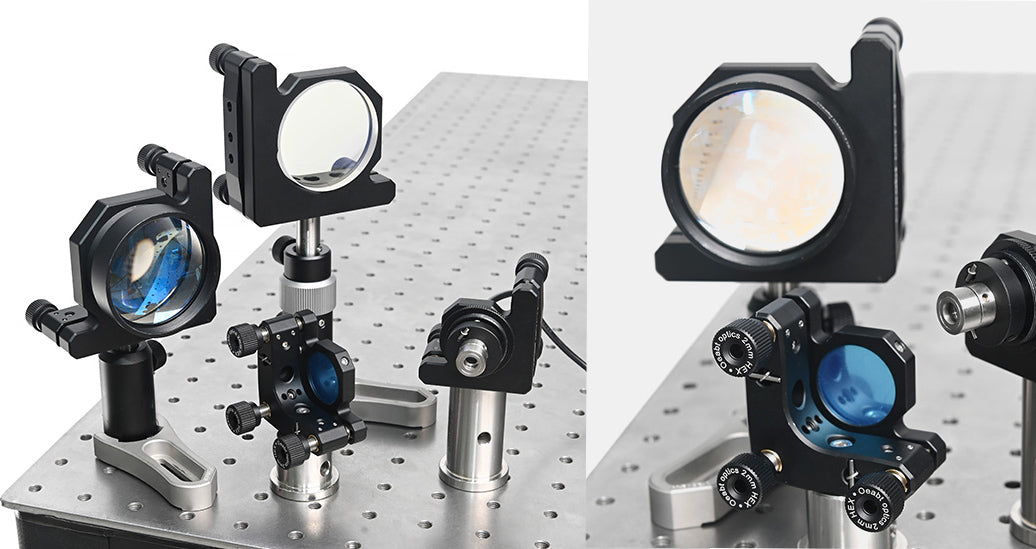

Kinetic Mounts for Round Optics, 3 Adjusters

Kinetic Mounts for Round Optics, 3 Adjusters

Product Description
• Compared to conventional mounts, this mount features a thicker back plate and tighter springs, offering superior stability.
• Optical elements are secured either with nylon-tipped screws in positioning holes or via SM-threaded optical element holders.
• Suitable for Ø1 inch or Ø2 inch optical elements.
• Equipped with 3 adjusters; angular adjustment range: ±4°.
•T-series compatible with lens tube system.
• M4 threaded holes on the base allow for flexible mounting orientation.

This series of optical mounts provides ±4° pitch and yaw adjustment. When using all three adjusters, the mount also allows up to 6.4 mm of Z-axis translation.

Adjustment Range: Tilt and pitch: ±4°; Z-axis translation: max. 6.4 mm (with 3 adjusters used simultaneously)
Adjustment Precision: 0.5° (8 mrad) per rev
Material: Aluminum alloy

Specification HPB254-3T HPB508-3T HPB254-3 HPB508-3
Dimensions 50.3 × 50.3 × 23.7 mm3 (excluding adjusters) 76.4 × 76.4 × 27.5 mm3 (excluding adjusters) 50.3 × 50.3 × 23.7 mm3 (excluding adjusters) 76.4 × 76.4 × 27.5 mm3 (excluding adjusters)
Mounting Aperture SM1 (1.035”-40) internal thread SM2 (2.035”-40) internal thread Ø25.6 mm smooth bore Ø51.1 mm smooth bore
Compatible Elements Ø1 inch (25 mm), thickness ≤4 mm Ø2 inch (50 mm), thickness ≤6.3 mm Ø1 inch (25 mm), thickness >3.5 mm Ø2 inch (50 mm), thickness >5.0 mm
Counterbore Type 2 × M4 6 × M4 2 × M4 6 × M4
Weight 94.8 g 170.0 g 94.3 g 168.9 g
View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total
MKTA-S1
MKTA-S1
$90.00/ea		 $0.00 Ø1" Kinematic Mirror Mounts, 3 Adjusters pdf No file 2 weeks
$90.00/ea $0.00
MKTA-S2
MKTA-S2
$142.00/ea		 $0.00 Ø2" Kinematic Mirror Mounts, 3 Adjusters pdf No file 2 weeks
$142.00/ea $0.00
MKTA-T1
MKTA-T1
$116.00/ea		 $0.00 SM1-Threaded Kinematic Mirror Mounts pdf No file 2 weeks
$116.00/ea $0.00
MKTA-T2
MKTA-T2
$153.00/ea		 $0.00 SM2-Threaded Kinematic Mirror Mounts pdf No file 2 weeks
$153.00/ea $0.00
