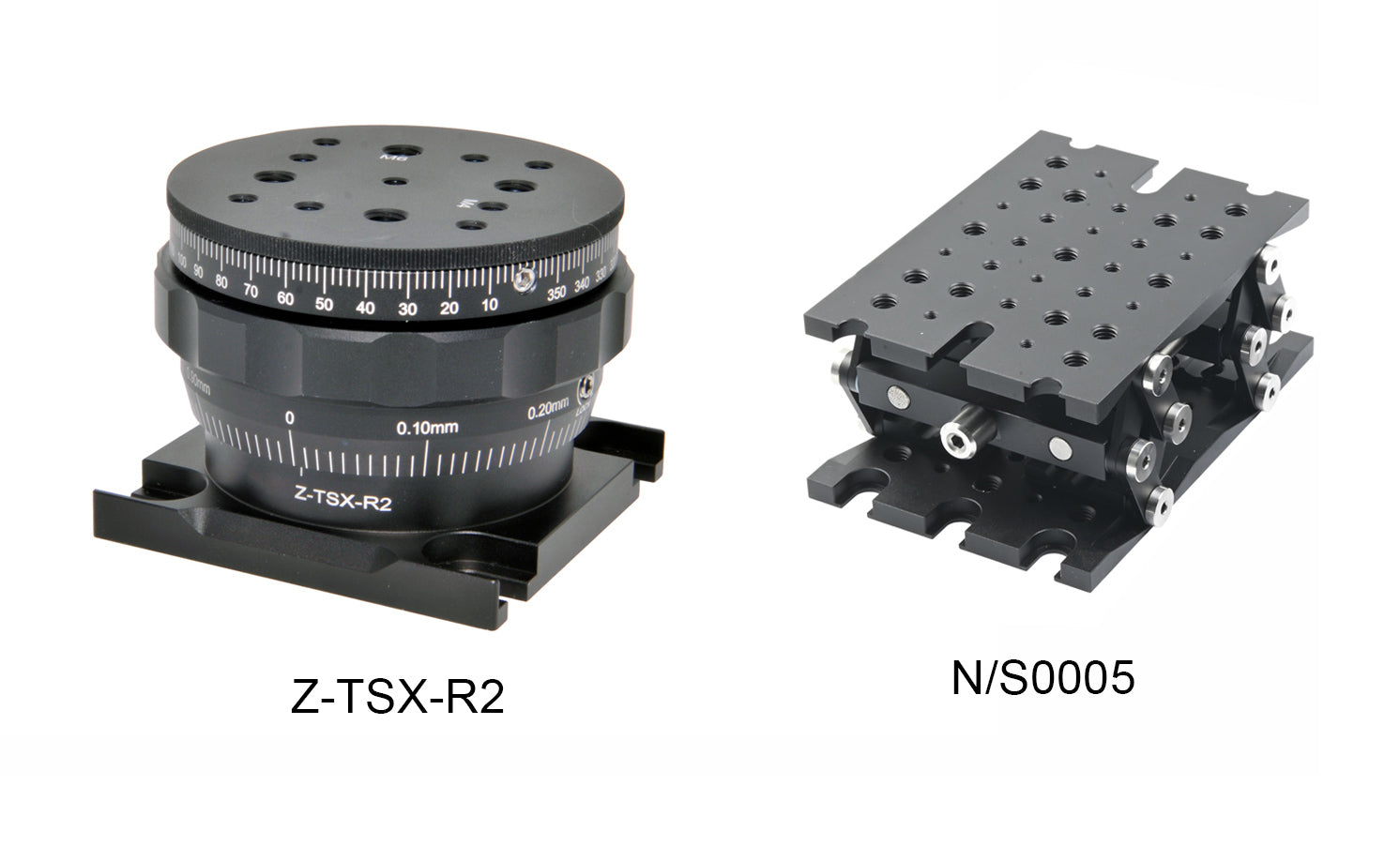

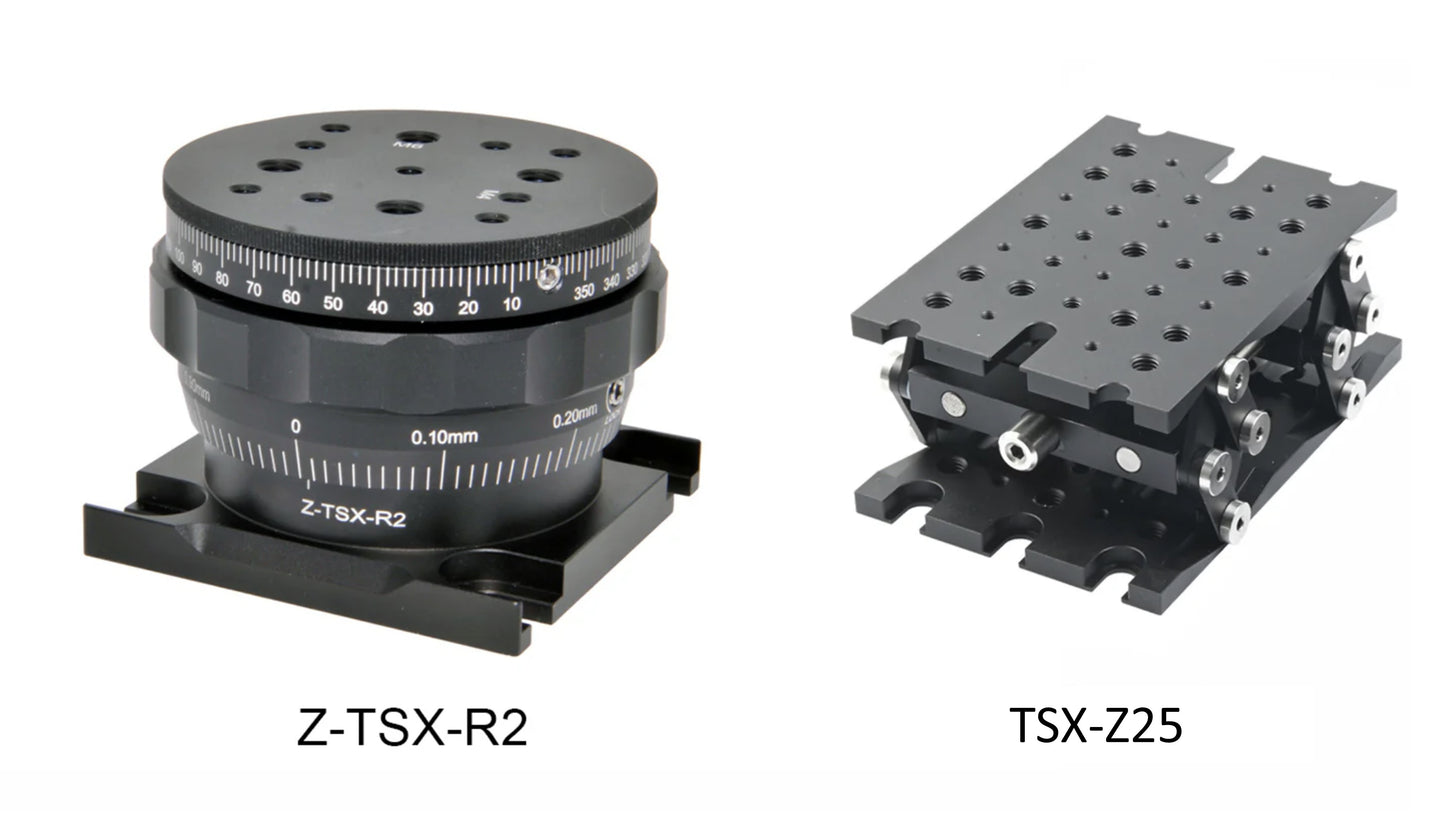

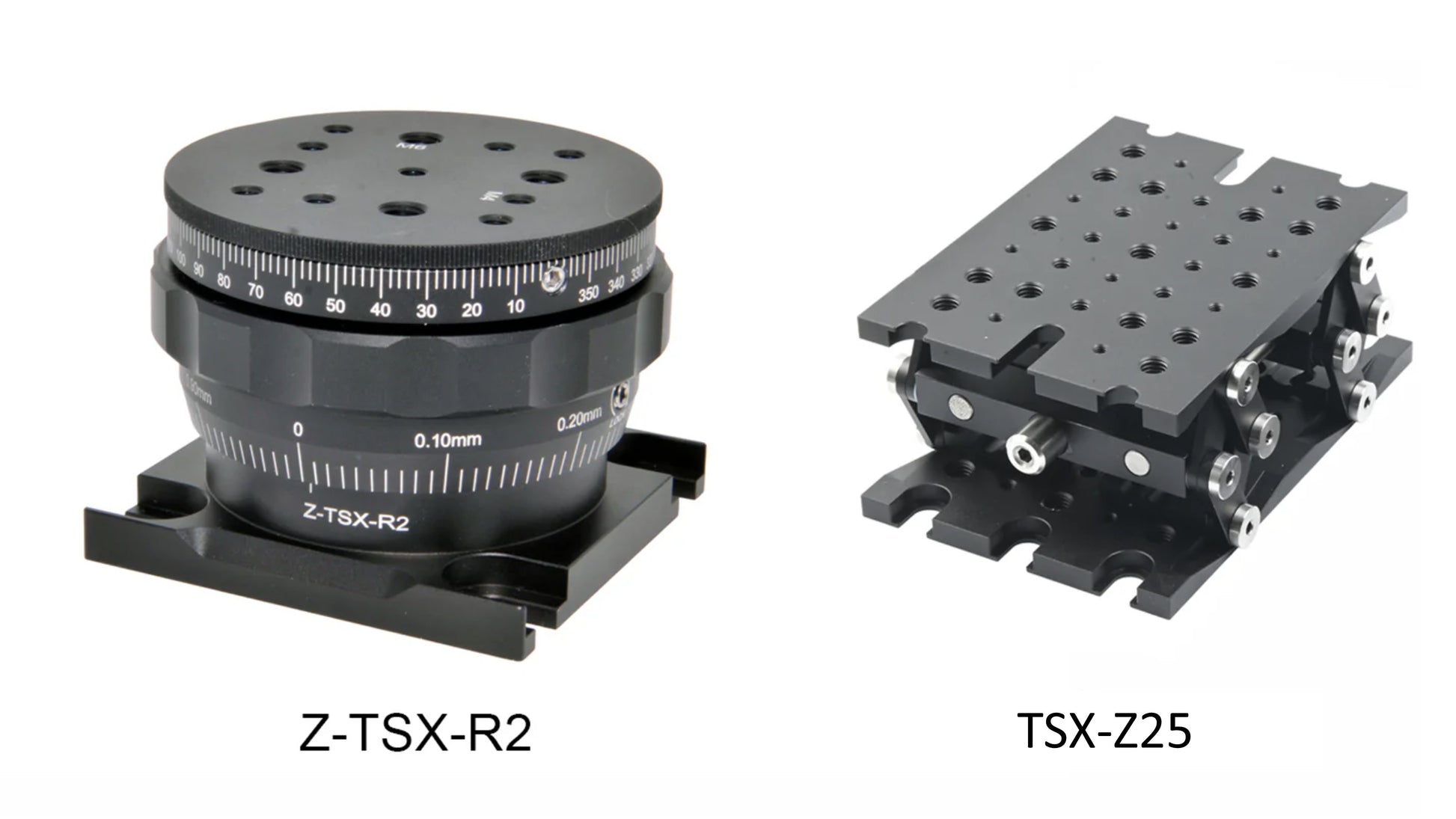

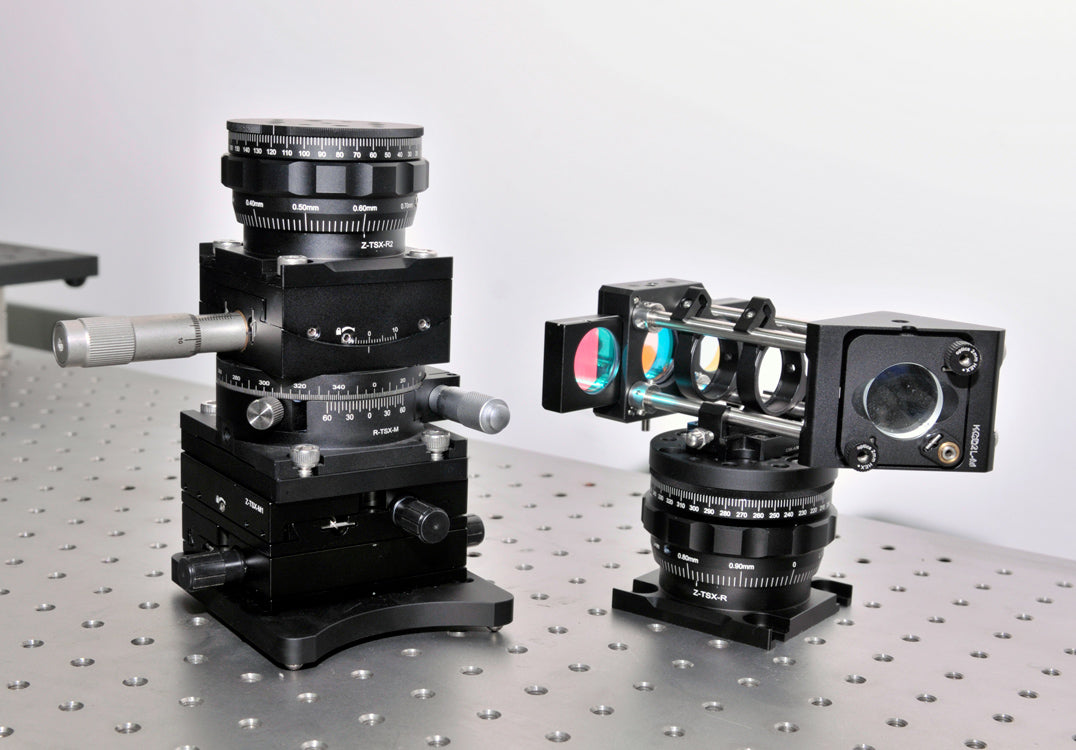

Product Description - Ø2.64" (Ø67.0 mm) Compact Lab Jack • High-stability, lockable vertical and rotational adjustment stage; • Ø67.0 mm top platform surface, 360° coarse rotational adjustment with position lock; • Vertical adjustment range of 26 mm, from 50.8 mm to 76.8 mm height; • Static and dynamic load capacity of 5 kg (110.2 lbs);
The height-adjustable rotation stage is a compact mounting platform that allows height and rotation adjustments with locking capability. It provides a stable, non-wobbling mount for optical components at any height. The sector-shaped adjustment ring offers 26 mm of non-rotating vertical travel, while the platform can be coarse rotated 360° and locked in position.
Model
Z-TSX-R2
Dimensions
Ø71.3 × 51.1 mm
Top Platform Surface
Ø67.0 mm
Rotational Travel
360° coarse adjustment, 2° scale
Vertical Travel
26.0 mm vertical adjustment, 0.01 mm scale
Load Capacity
5 kg (110.2 lbs)
Thread Type
9 × M4, 4 × M6
Weight
562.7 g
Material
7075 Aluminum Alloy

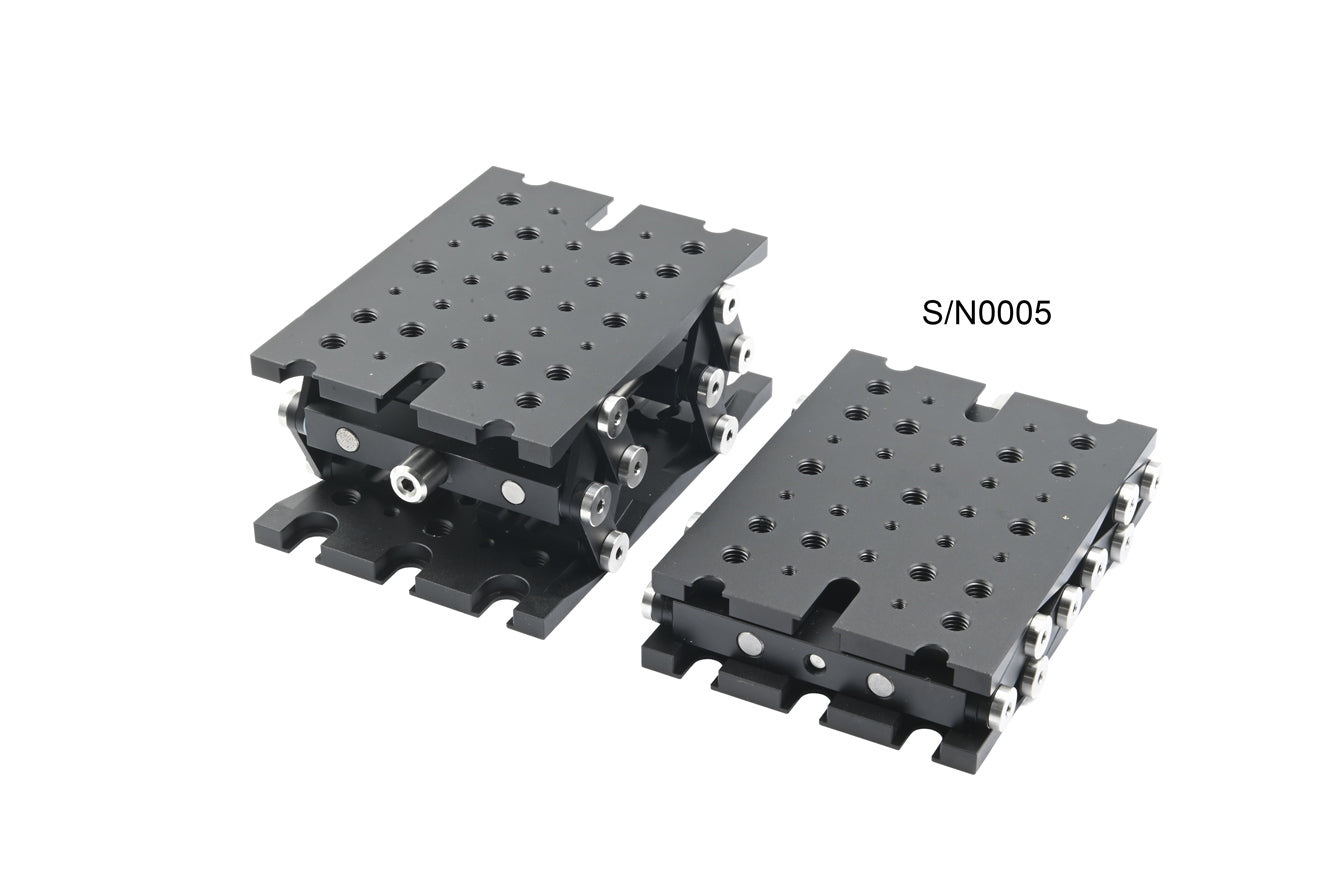

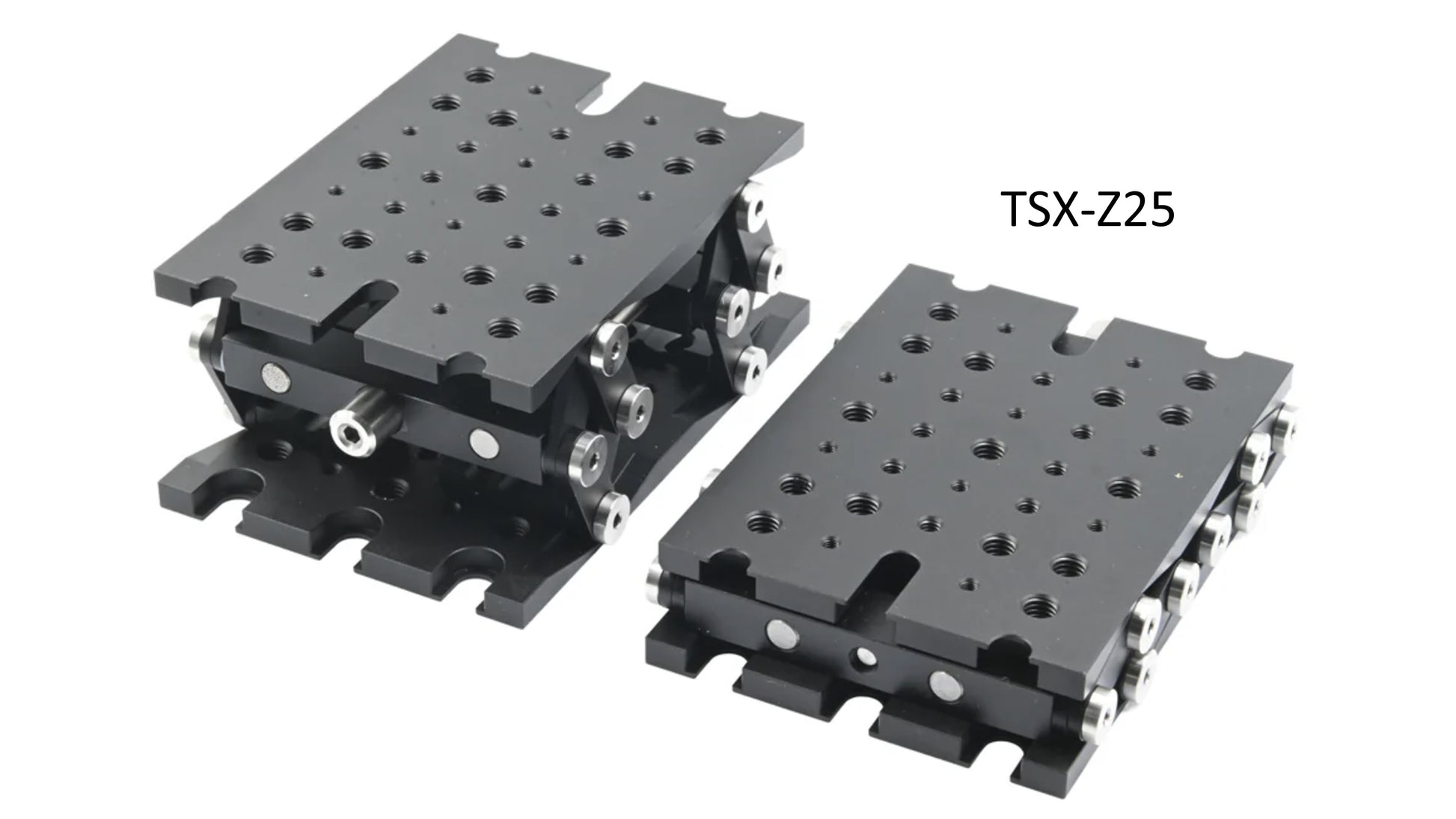

Product Description - 4" x 3" (101.6 mm x 76.2 mm) Lab Jack • Z-axis height adjustment range of 25 mm, platform height from 21.3 mm to 46.8 mm; • Mounting surface: 101.6 × 76.2 mm; • Vertical load capacity: 55.1 lbs (25 kg); • Multiple threaded holes and mounting slots on both top and bottom surfaces;
The Z-axis scissor lift stage is ideal for mounting opto-mechanical subassemblies that require height adjustment. Its rigid scissor design ensures high stability and excellent parallelism.
