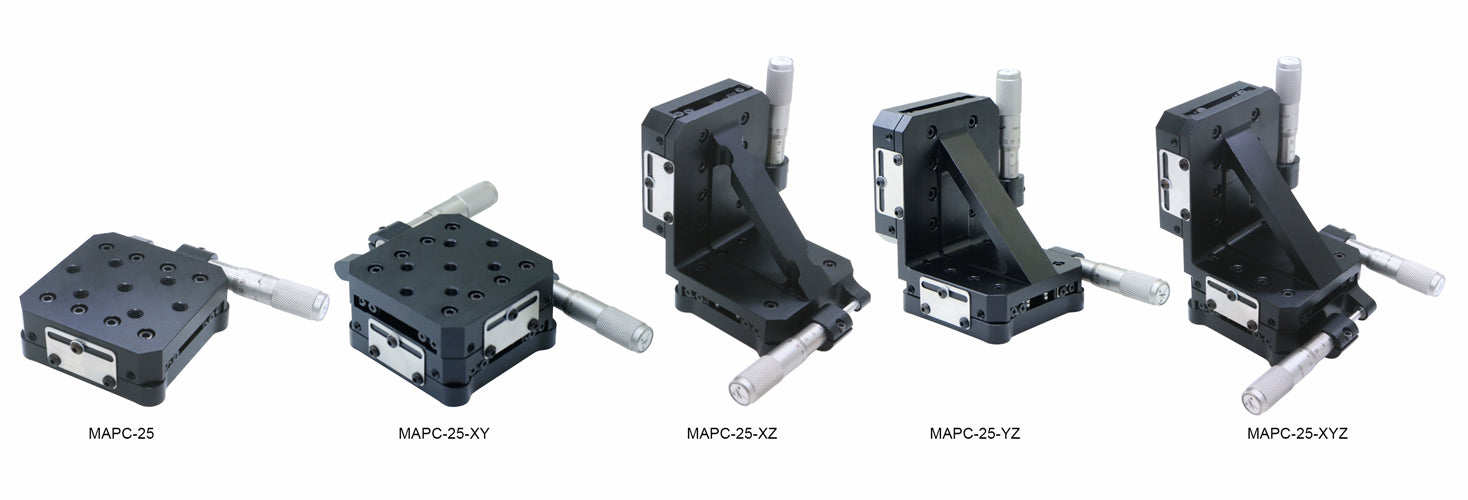

Crossed-Roller Bearings Linear Stages, Travel Range 25 mm

Crossed-Roller Bearings Linear Stages, Travel Range 25 mm

Features

• Integrated one-piece translation stage with built-in micrometer mount
• Crossed roller bearings for high load capacity and minimal angular deviation
• Available in 1-axis, 2-axis, and 3-axis versions
• M6 x 1.0 mounting holes on the platform
• Side-mounted metric micrometer
• Mounts to optical breadboards via four M6 countersunk holes
• Optional slotted mounting plate available for stage accessories

This series of compact translation stages provides 25 mm linear travel per axis. The compact design incorporates crossed-roller steel bearings, offering precise motion and high load capacity. The integrated one-piece upper and lower plate is machined from cast aluminum, ensuring excellent stability with minimal internal stress.


View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total
MAPC-25
MAPC-25
$330.00/ea		 $0.00 Linear Translation Stage, Side Micrometer, M6 x 1.0 Taps pdf Download 2 weeks
$330.00/ea $0.00
MAPC-25-XY
MAPC-25-XY
$660.00/ea		 $0.00 XY Linear Translation Stage, Side Micrometer, M6 x 1.0 Taps pdf Download 2 weeks
$660.00/ea $0.00
MAPC-25-XZ
MAPC-25-XZ
$660.00/ea		 $0.00 XZ Linear Translation Stage, Side Micrometer, M6 x 1.0 Taps No pdf No file 2 weeks
$660.00/ea $0.00
MAPC-25-YZ
MAPC-25-YZ
$660.00/ea		 $0.00 YZ Linear Translation Stage, Side Micrometer, M6 x 1.0 Taps No pdf No file 2 weeks
$660.00/ea $0.00
MAPC-25-XYZ
MAPC-25-XYZ
$956.00/ea		 $0.00 XYZ Linear Translation Stage, Side Micrometer, M6 x 1.0 Taps pdf No file 2 weeks
$956.00/ea $0.00
