Manual 360° Rotation Stage with Two Hard Stops

Manual 360° Rotation Stage with Two Hard Stops

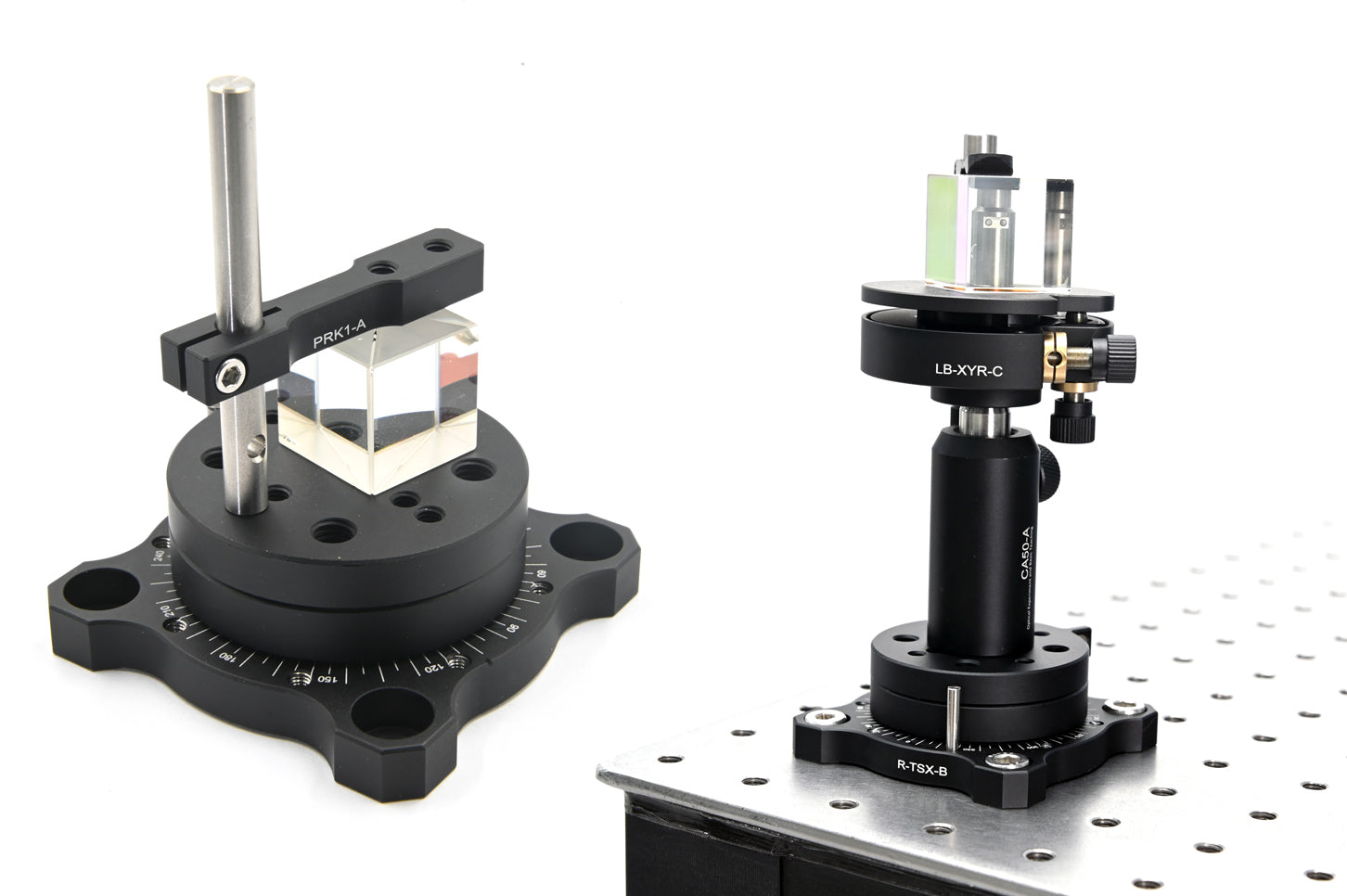

Product Description
• 360° continuous manual rotation with dual stop-pin design;
• 5° increment scale on base, with numeric markings every 30°;
• Load Capacity: 20 kg with Stage Mounted on a Horizontal Surface; 1 kg with Stage Mounted on a Vertical Surface;
• Multiple threaded holes for flexible mounting options;

The rotary stage offers 360° continuous manual rotation. The base is engraved with 5° increment markings, with numeric labels every 30° for easy positioning.

Model R-TSX-B
Dimensions 64.8 × 64.6 × 25.4 mm
Adjustment Range 360° rotation, 5° scale increments
Load Capacity Horizontal surface mounting: 20 kg; Vertical surface mounting: 1 kg
Thread Type 8 × M4, 5 × M6, 4 × M6 countersunk holes
Weight 159.5 g
Material 7075 Aluminum Alloy

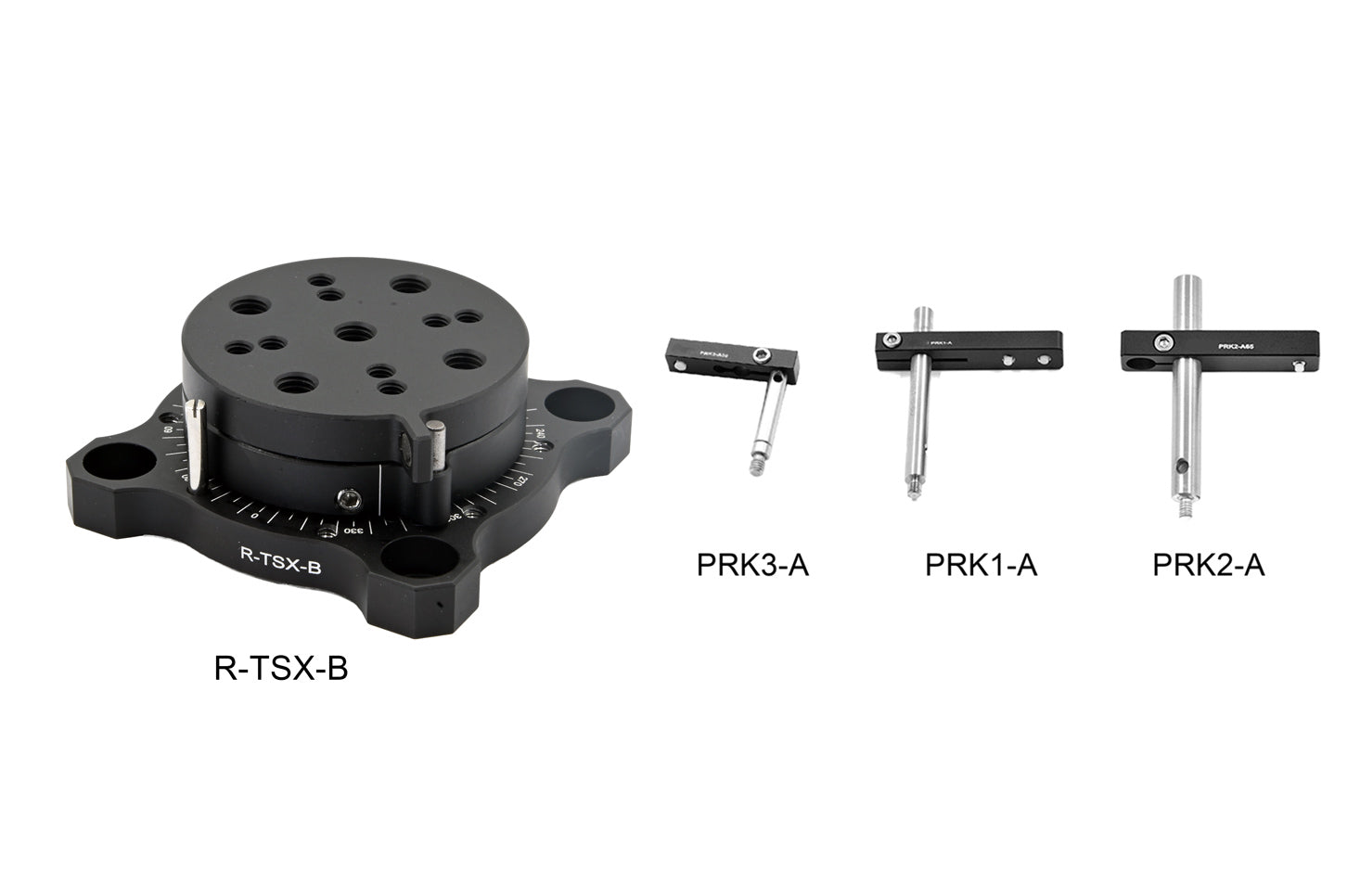

Specifications - Clamping Arms

Model PRK1-A PRK2-A PRK3-A
Rod Specifications Ø6 × 65 mm Ø8 × 70.6 mm Ø5 × 36.6 mm
Clamping Height 52.5 mm 56 mm 25.4 mm
Thread Type M4 M4 M4
Weight 22.8 g 36.3 g 8.5 g
Material Aluminum Alloy + Stainless Steel Aluminum Alloy + Stainless Steel Aluminum Alloy + Stainless Steel
