DINGLUN

Mirrors

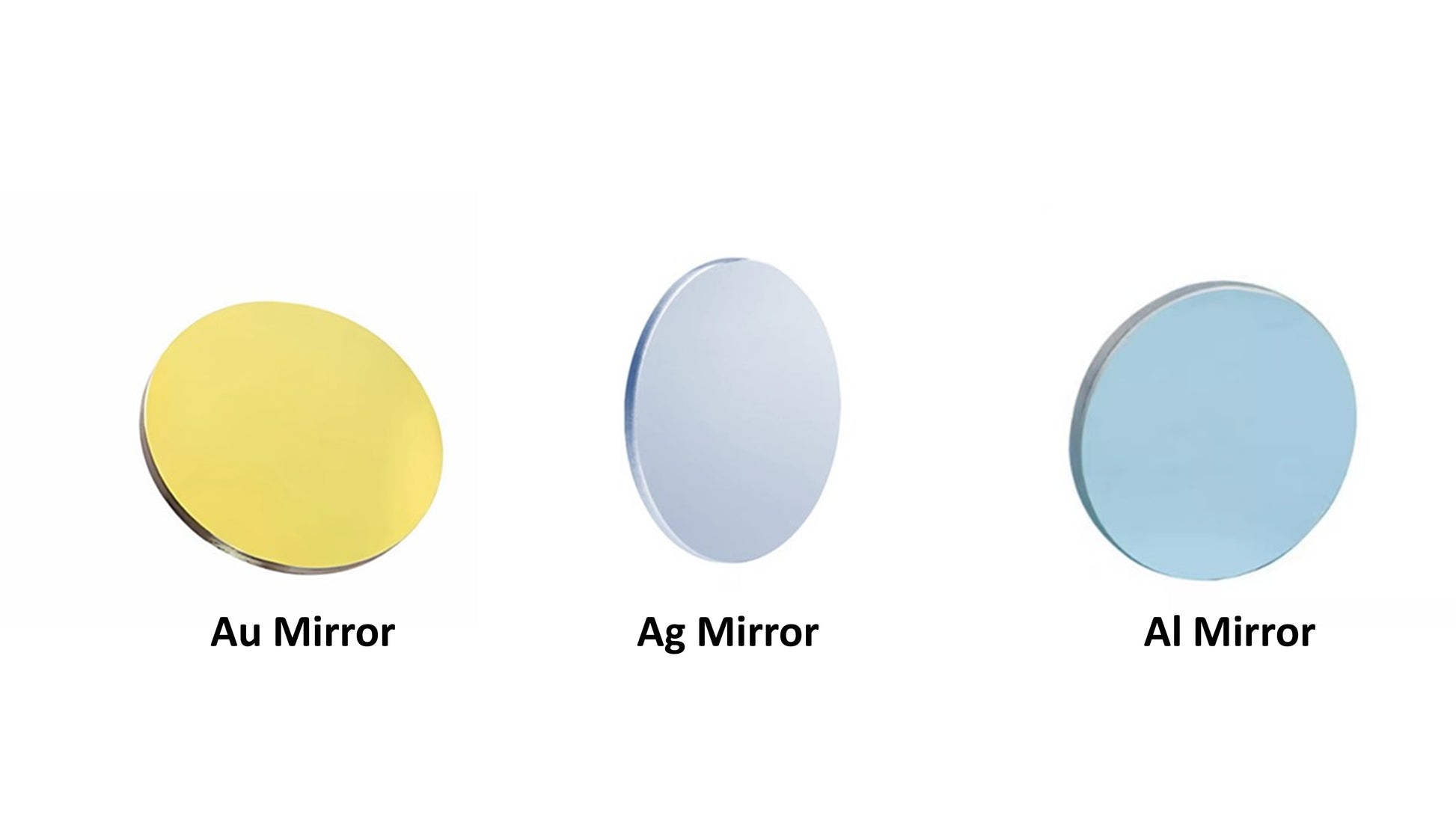

Mirror Specifications

Part Number	Coating	Diameter (mm)	Thickness (mm)

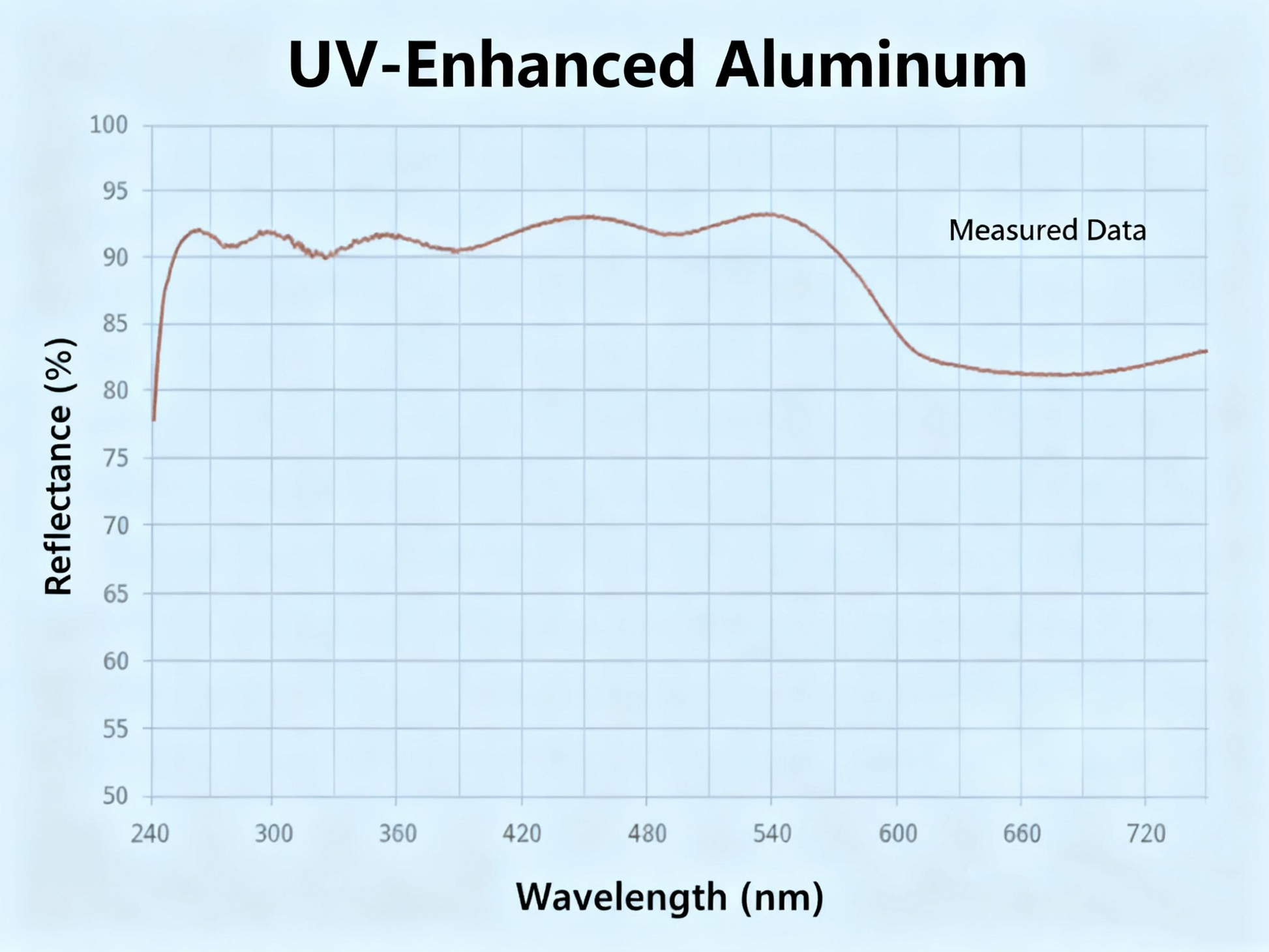

MA12702	UV-Al Coated Mirror	12.7	2
MA15002	UV-Al Coated Mirror	15	2
MA20003	UV-Al Coated Mirror	20	3
MA25403	UV-Al Coated Mirror	25.4	3
MA30003	UV-Al Coated Mirror	30	3
MA50804	UV-Al Coated Mirror	50.8	4

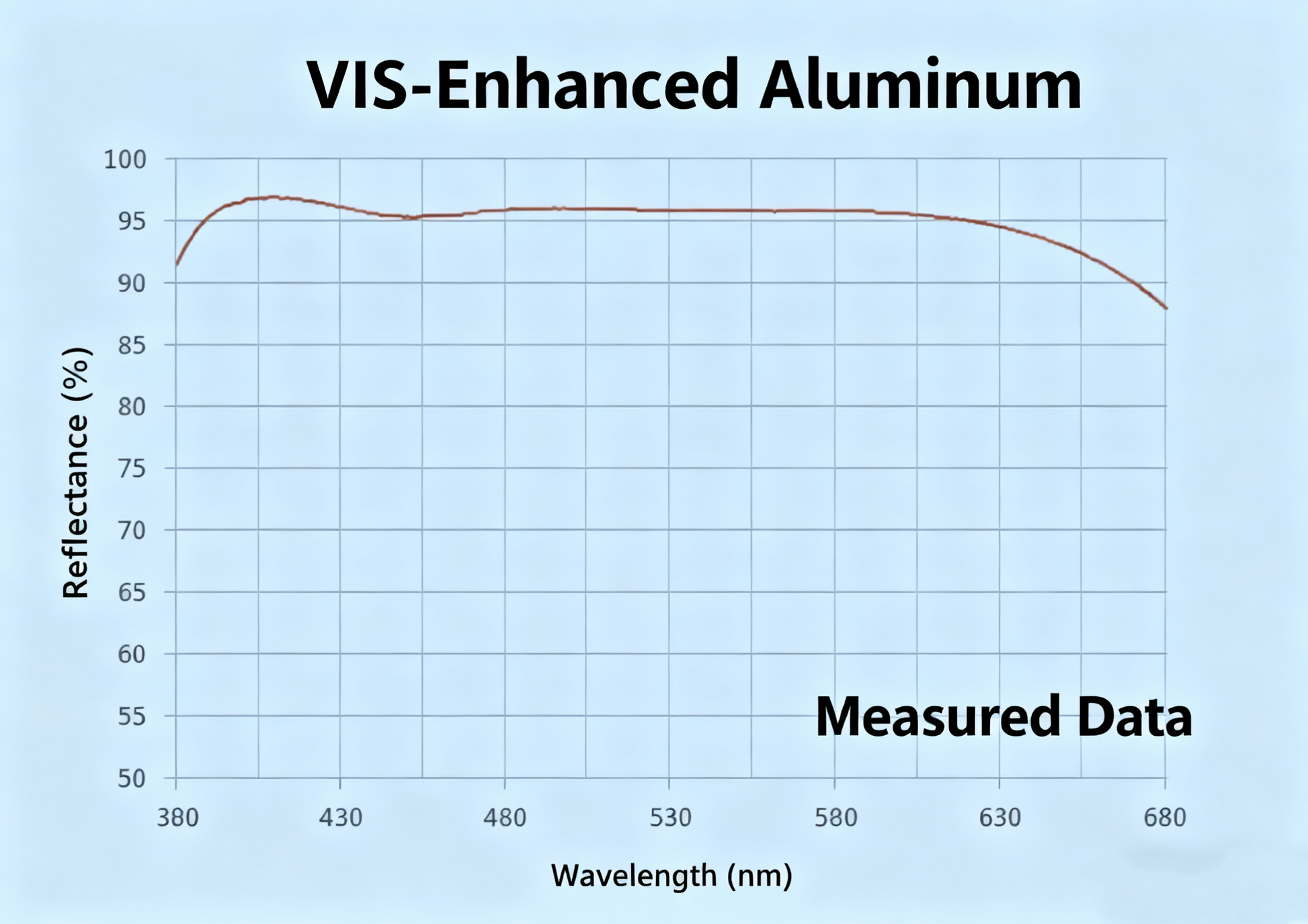

MB12702	VIS-Al Coated Mirror	12.7	2
MB15002	VIS-Al Coated Mirror	15	2
MB20003	VIS-Al Coated Mirror	20	3
MB25403	VIS-Al Coated Mirror	25.4	3
MB30003	VIS-Al Coated Mirror	30	3
MB50804	VIS-Al Coated Mirror	50.8	4

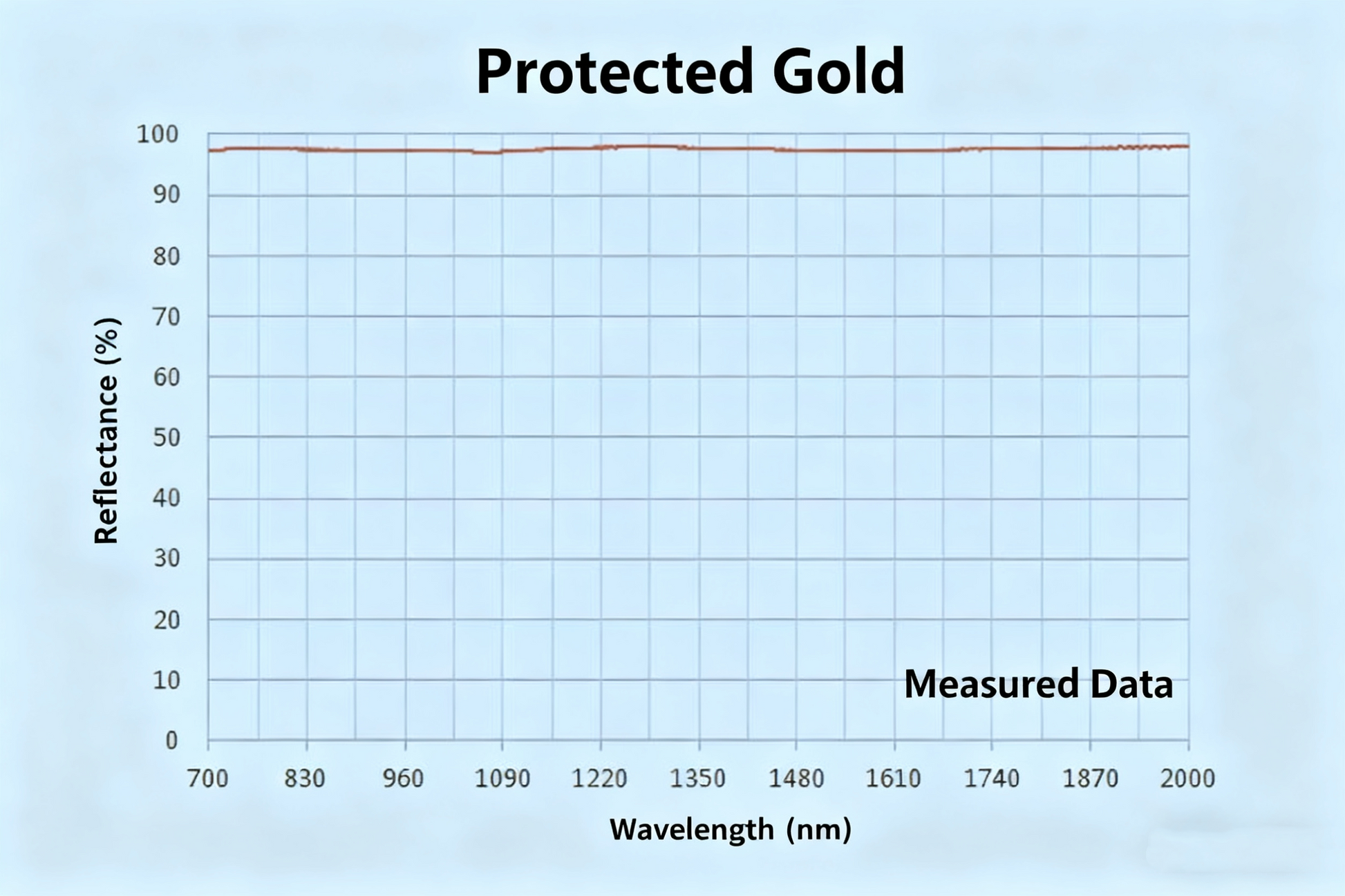

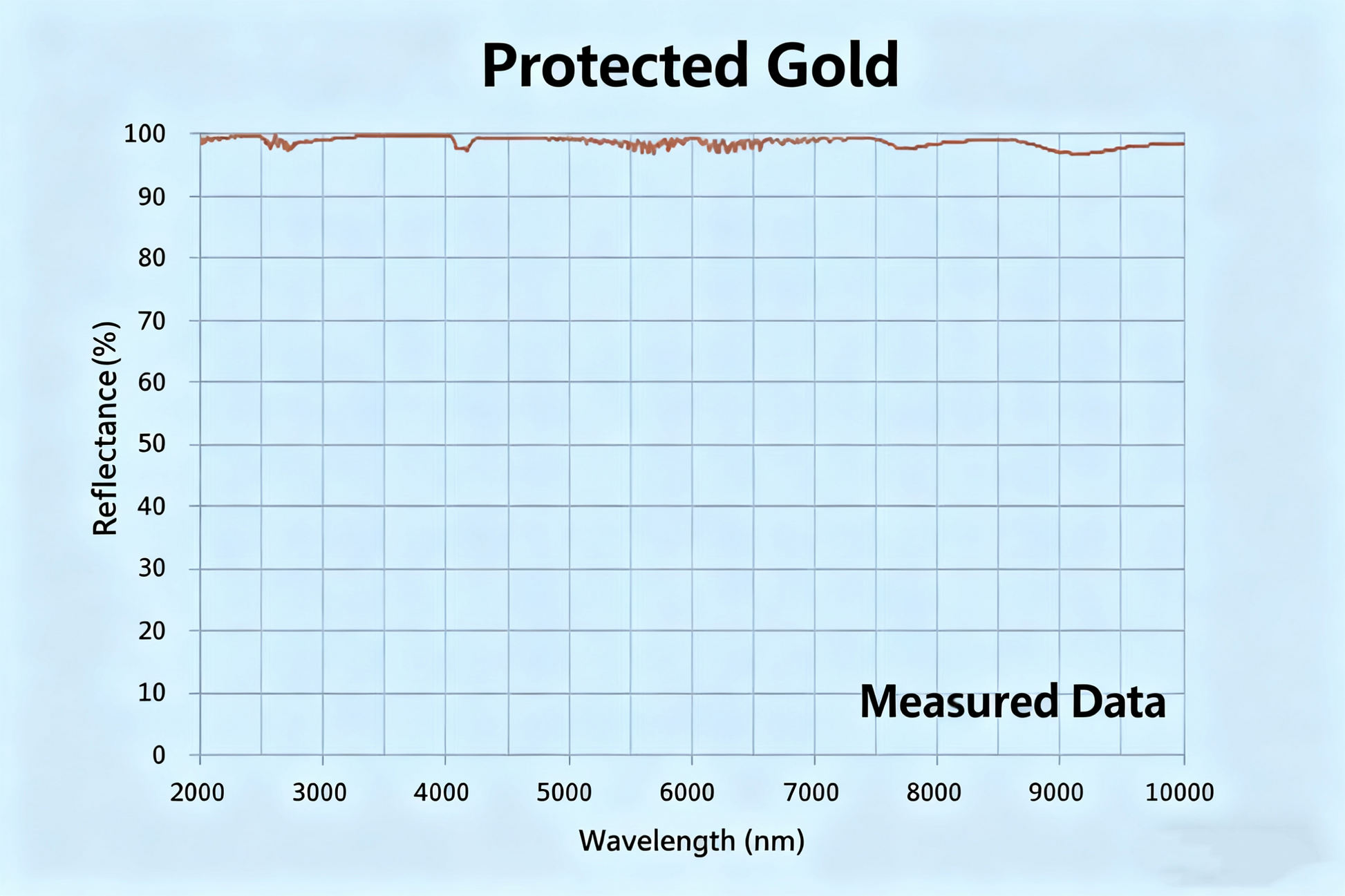

MD12702	Au Coated Mirror	12.7	2
MD15002	Au Coated Mirror	15	2
MD20003	Au Coated Mirror	20	3
MD25403	Au Coated Mirror	25.4	3
MD30003	Au Coated Mirror	30	3
MD50804	Au Coated Mirror	50.8	4

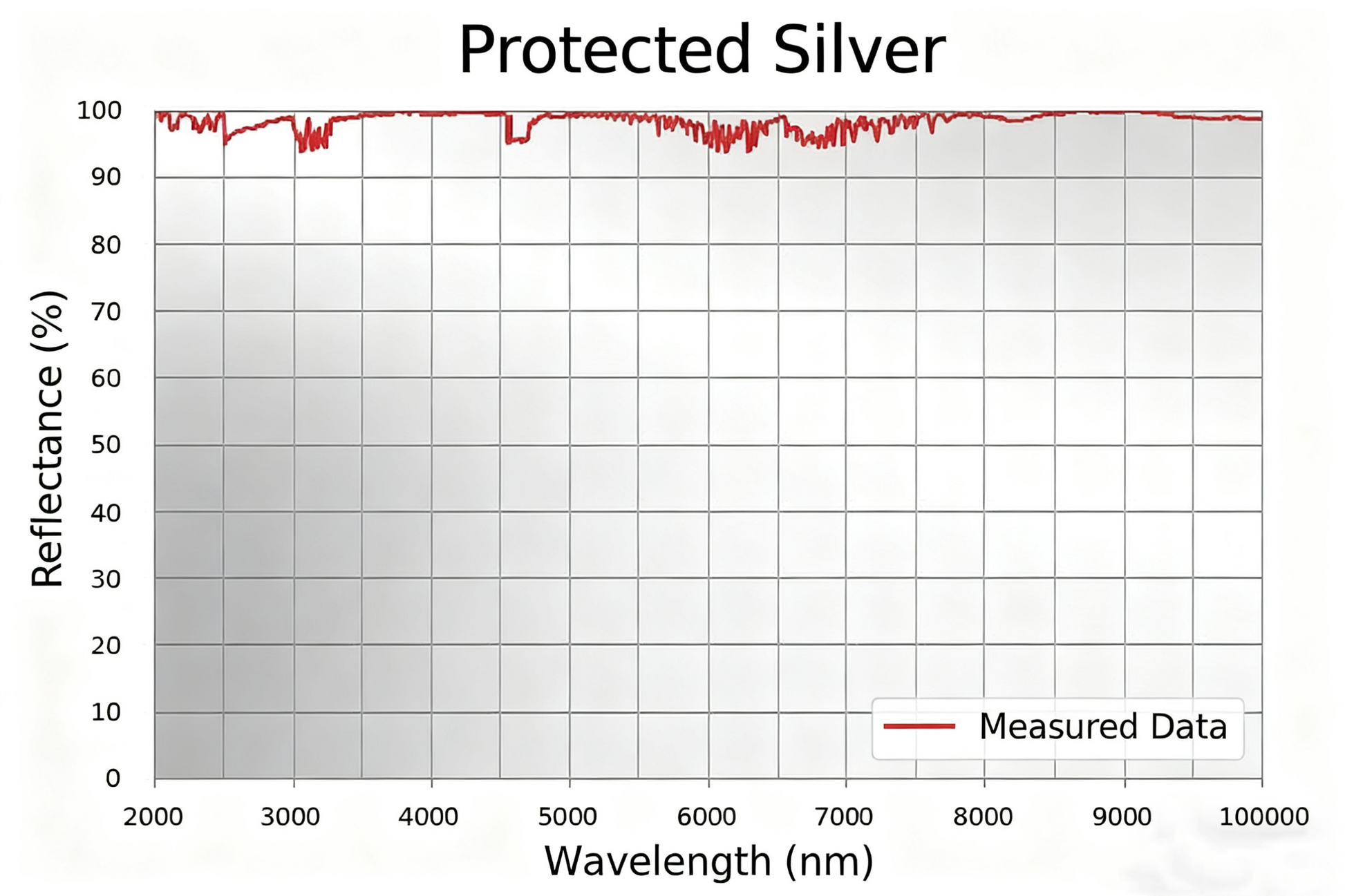

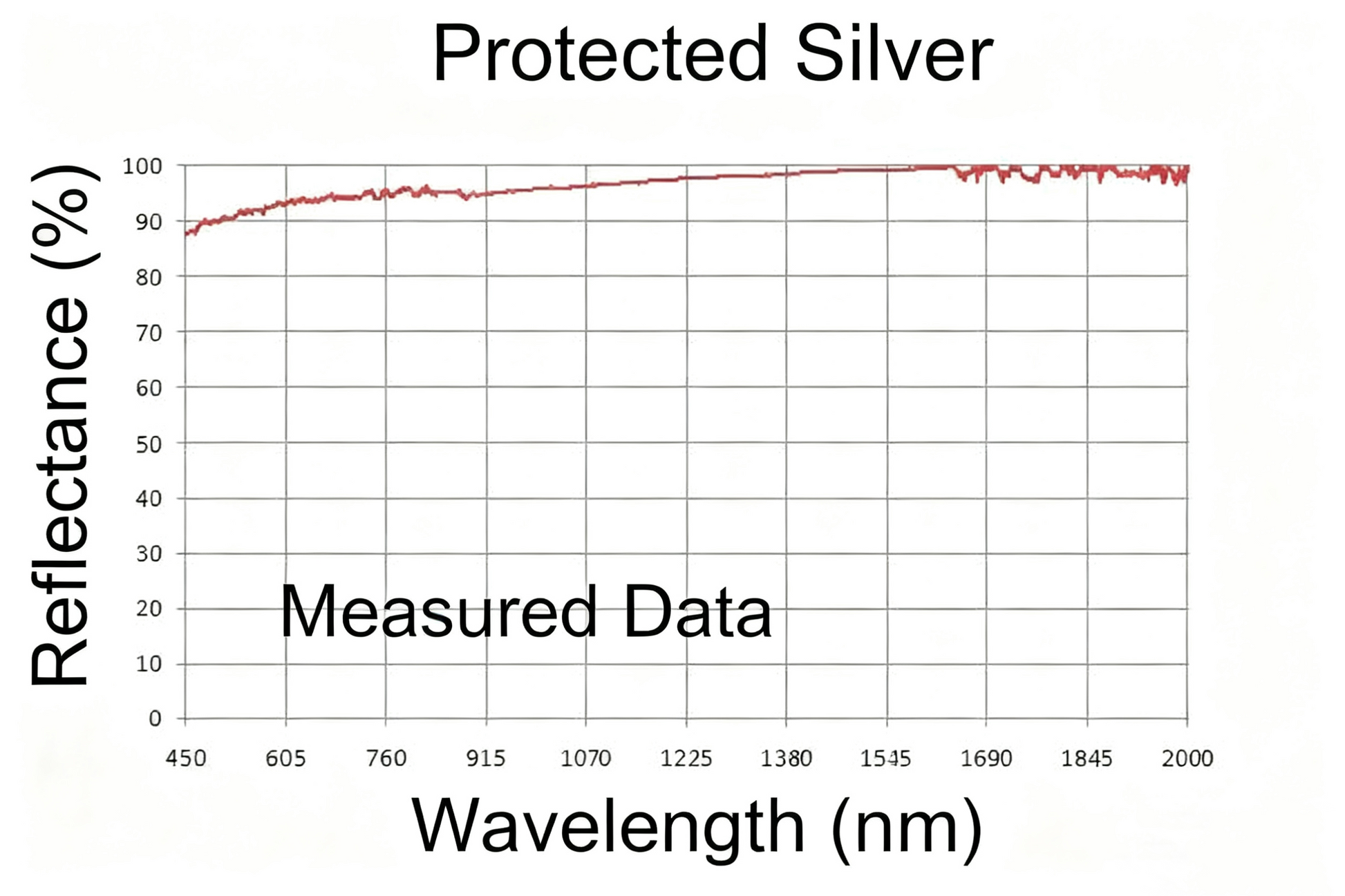

MC12702	Ag Coated Mirror	12.7	2
MC15002	Ag Coated Mirror	15	2
MC20003	Ag Coated Mirror	20	3
MC25403	Ag Coated Mirror	25.4	3
MC30003	Ag Coated Mirror	30	3
MC50804	Ag Coated Mirror	50.8	4

Tolerance Table

Material	N-BK7
Diameter Tolerance	+0 / -0.1 mm
Thickness Tolerance	±0.1 mm
Surface Figure	λ/4 @ 633 nm
Surface Quality	60-40 S/D
Parallelism	< 3 arc minutes
Back Surface	Fine Ground
Chamfer	0.2 mm – 0.4 mm × 45°

View full details
