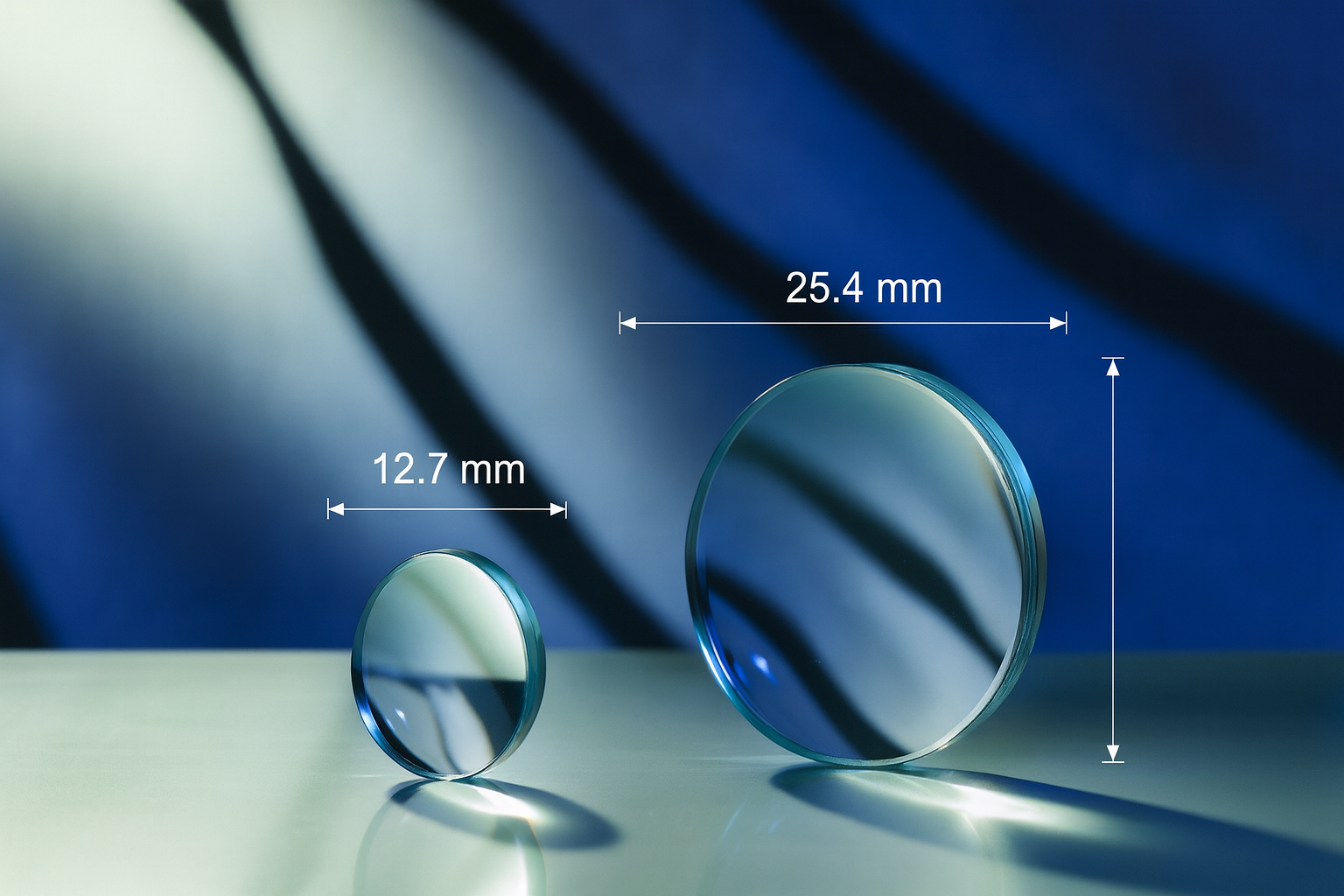

VIS Coated Series N-BK7 Plano-Convex Lenses, 400nm - 700nm

VIS Coated Series N-BK7 Plano-Convex Lenses, 400nm - 700nm

N-BK7 Visible AR Coated Plano-Convex Lenses

Product #

Dia (mm)

EFL (mm)

R (mm)

Tc (mm)

Te (mm)

BFL (mm)

SPV127020-VIS

12.7

20

10.33

4.0

1.82

17.37

SPV127025-VIS

12.7

25

12.91

3.5

1.83

22.69

SPV127030-VIS

12.7

30

15.50

3.2

1.84

27.91

SPV127050-VIS

12.7

50

25.84

2.6

1.81

48.33

SPV127100-VIS

12.7

100

51.64

2.2

1.81

98.55

SPV254025-VIS

25.4

25.4

13.11

11.7

1.87

17.69

SPV254030-VIS

25.4

30

15.5

8.6

1.99

24.35

SPV254035-VIS

25.4

35

18.08

7.2

1.99

30.27

SPV254040-VIS

25.4

40

20.66

6.4

2.04

35.79

SPV254050-VIS

25.4

50.8

26.24

5.1

1.82

47.45

SPV254060-VIS

25.4

60

31

4.7

1.98

56.93

SPV254063-VIS

25.4

63.5

32.8

4.75

2.19

60.39

SPV254075-VIS

25.4

75

38.73

4.1

1.96

72.30

SPV254100-VIS

25.4

100

51.64

3.6

2.01

97.63

SPV254125-VIS

25.4

125

64.55

3.3

2.04

122.83

SPV254150-VIS

25.4

150

77.46

3.1

2.05

147.96

SPV254200-VIS

25.4

200

103.28

2.8

2.02

198.16

SPV254250-VIS

25.4

250

129.1

2.6

1.97

248.30

SPV254300-VIS

25.4

300

154.92

2.5

1.98

298.37

SPV254400-VIS

25.4

400

206.56

2.4

2.00

398.44

SPV254500-VIS

25.4

500

258.19

2.3

1.99

498.49



Tolerance Table

Material N-BK7
Design Wavelength 587.6 nm
Diameter Tolerance +0.0 / -0.1 mm
Center Thickness Tolerance ±0.2 mm
Focal Length Tolerance ±1%
Centration < 3 arc minutes
Surface Quality 40-20 S/D
Surface Figure λ/4 @ 632.8 nm
Chamfer 0.2 mm × 45°
