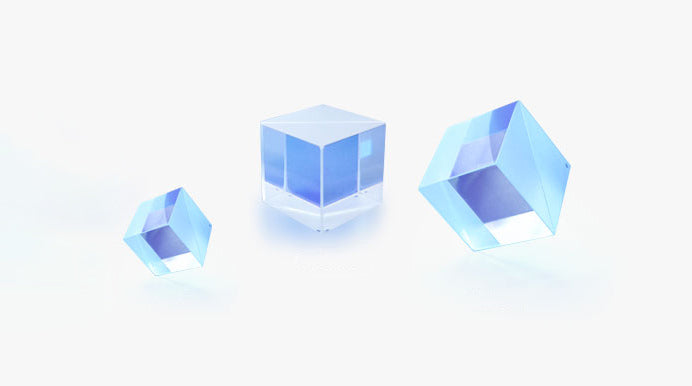

Non-Polarizing Cube Beamsplitters, D25.4mm Cube

Non-Polarizing Cube Beamsplitters, D25.4mm Cube

Parameter Specification
Optical Material H-K9L
Dimensions 25.4 × 25.4 × 25.4 mm

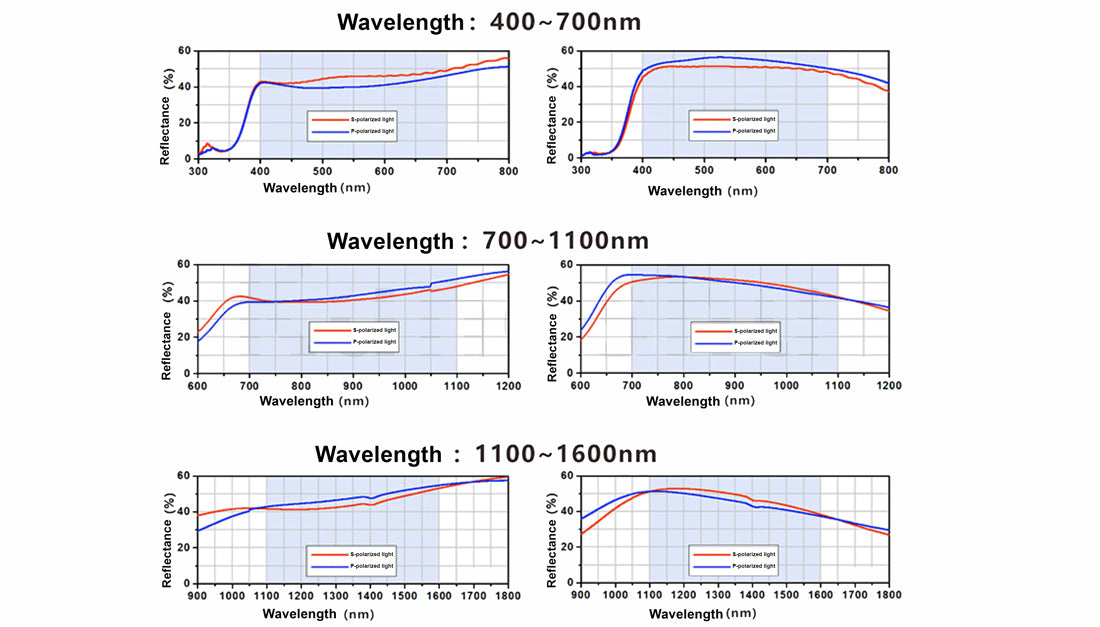

Operating Wavelength 450–650 nm
Beam Split Ratio T/R = 50/50
Beam Splitter Coating Tabs = 46% ±10%, Rabs = 46% ±10% @ 450–650 nm
Exit Beam Deflection Angle 0° ±3′ (Transmitted), 90° ±5′ (Reflected)
Incident Angle 0° ±2°
Surface Quality 60/40
Surface Flatness λ/4 @ 632.8 nm
Anti-Reflection Coating

Multilayer AR coating on all four outer surfaces, Rave < 0.5%



View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total
BS5050-254-VIS
BS5050-254-VIS
$221.00/ea		 $0.00 50:50 (R:T) Cube Beamsplitters, 400 - 700 nm pdf No file 2 weeks
$221.00/ea $0.00
BS5050-254-NIR
BS5050-254-NIR
$224.00/ea		 $0.00 50:50 (R:T) Cube Beamsplitters, 700 - 1100 nm pdf No file 2 weeks
$224.00/ea $0.00
BS5050-254-NIR2
BS5050-254-NIR2
$228.00/ea		 $0.00 50:50 (R:T) Cube Beamsplitters, 1100 - 1600 nm pdf No file 2 weeks
$228.00/ea $0.00
