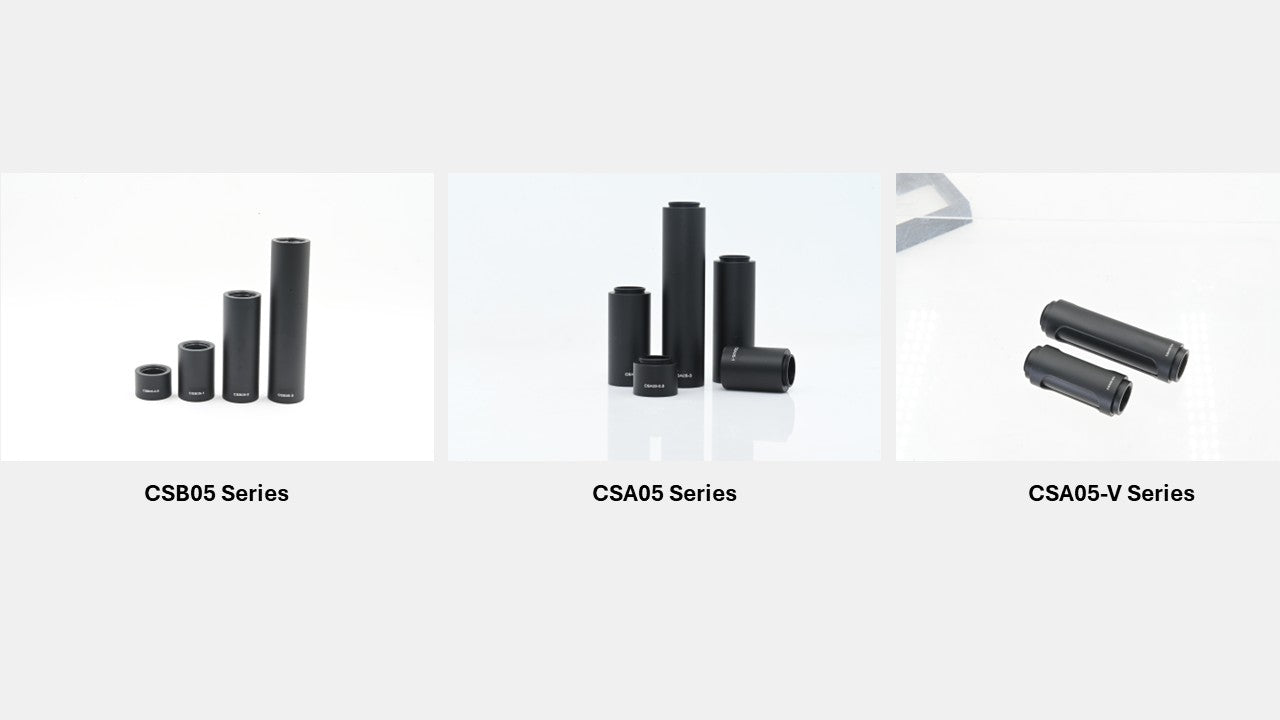

CSB05 Series Ø1/2" Lens Tubes – Flangeless, SM05 Internal Thread
• Flangeless Design for Bi-Directional Access
The CSB05 series features a smooth, unflanged cylindrical body without external threading. This allows optics to be loaded or removed from either end of the tube, providing flexible access during assembly or alignment.
• Compatible with Ø1/2" (12.7 mm) Optics
Each tube includes two CSK05 retaining rings to securely hold optics in place. The SM05 (0.535"-40) internal threading supports mounting of Ø1/2 inch optical components.
• Connects to SM05 External Threaded Components
Both ends feature internal SM05 threading, allowing the CSB05 tubes to interface with any SM05 externally threaded components (e.g., adapters, mounts, couplers).
• Compatible with 16 mm Cage Systems
With a tube body diameter of Ø17.8 mm, the CSB05 series is fully compatible with 16 mm cage systems for compact, modular optical setups.
| Model |
CSB05-0.5 |
CSB05-1 |
CSB05-2 |
CSB05-3 |
| Tube Height |
12.7 mm |
25.4 mm |
50.8 mm |
76.2 mm |
| Tube Diameter |
Ø17.8 mm (fixed) |
|
|
|
| Thread Type |
SM05 (0.535"-40) Internal |
|
|
|
| Included Retaining Rings |
2 × CSK05 |
|
|
|
| Material |
7075 Aluminum Alloy |
|
|
|
| Weight |
3.9 g |
7.8 g |
15.2 g |
22.3 g |
CSA05-V Series Visual Access Lens Tubes – SM05 Compatible
• Easy Optical Element Access Without Disassembly
The CSA05-V series features a side-slot opening that allows direct manual adjustment of mounted optics from the outside. There's no need to use a retaining ring spanner or disassemble the system, making alignment and tuning more efficient.
• Sliding Cover Protects Optical Components
A rotatable sliding cover can be opened or closed over the side window. This mechanism protects sensitive optical surfaces from dust or accidental touch when not in use.
• Dual-Threaded – SM05 (0.535”-40) Internal & External Threads
Supports stacking with other SM05 threaded components and secure mounting of Ø1/2 inch (12.7 mm) optics.
• Compatible with 16 mm Cage Systems
The tube body diameter is optimized for integration with 16 mm cage systems for compact optical setups.
| Model |
CSA05-45V |
CSA05-70V |
| Outer Dimensions |
Ø21.6 × 51.3 mm |
Ø21.6 × 79.0 mm |
| Viewing Window |
12.7 × 33.0 mm |
12.7 × 58.4 mm |
| Thread Depth |
51.3 mm |
79.0 mm |
| Thread Type |
SM05 (0.535”-40), Internal & External |
|
| Weight |
19.3 g |
27.7 g |
| Material |
7075 Aluminum Alloy |
same |
CSA05 Series – SM05 Stackable Lens Tubes (for Ø1/2" Optics)
• Stackable External Thread Design for Multi-Element Optical Systems
CSA05 series lens tubes feature an SM05 (0.535”-40) internal and external thread, allowing multiple units to be directly connected to build compact and modular optical systems.
• SM05 Thread – Compatible with Ø1/2" (Ø12.7 mm) Optics
Designed to securely mount standard 1/2" optics. Each lens tube includes one CSK05 retaining ring for positioning and securing the optical element inside the tube.

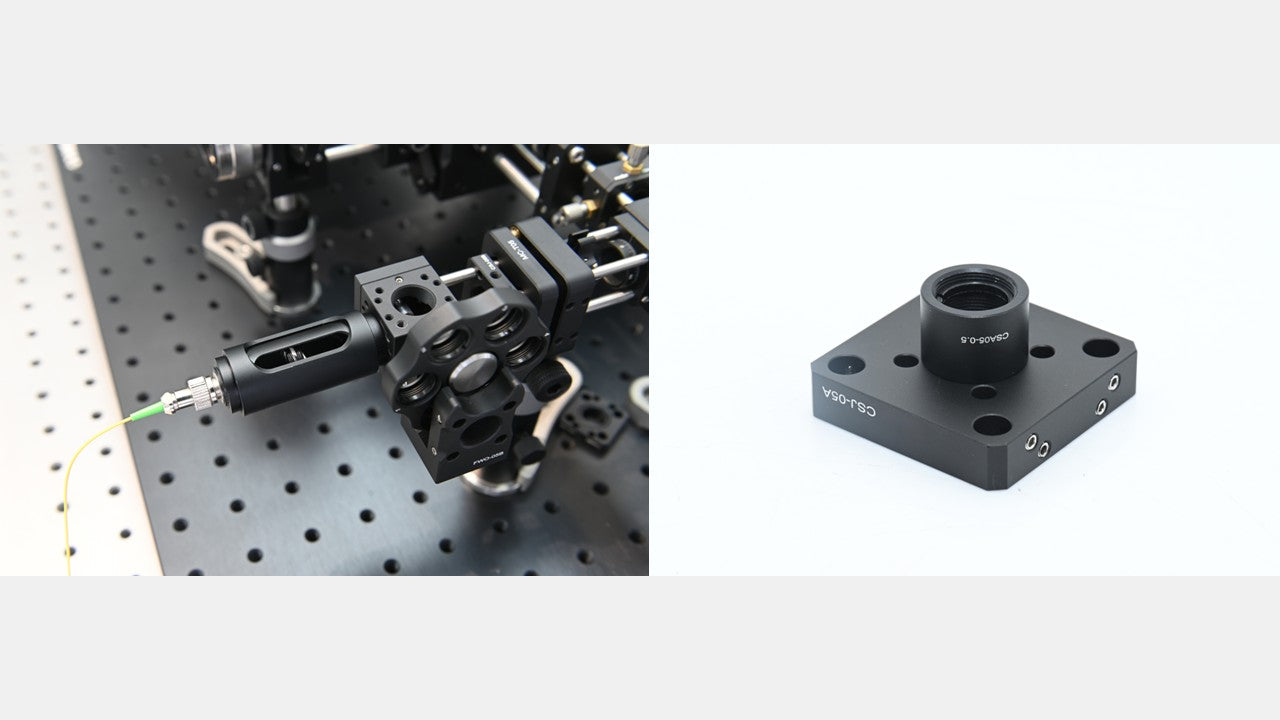

• Optional Locking Accessory Plates for Stable Mounting
These lens tubes can be securely locked in cage systems or optical setups using compatible mounting plates or retaining rings (optional).
• Vertical Height Adjustability
Can be used with compatible posts or adjustable mounts for achieving desired vertical positioning. Maximum adjustment travel: 23.8 mm.
| Model |
CSA05-0.5 |
CSA05-1 |
CSA05-1.5 |
CSA05-2 |
CSA05-3 |
| Tube Height |
12.7 mm |
25.4 mm |
38.1 mm |
50.8 mm |
76.2 mm |
| Tube Diameter |
Ø17.8 mm |
same |
same |
same |
same |
| Thread Type |
SM05 (0.535”-40), Internal & External Threads |
same |
same |
same |
same |
| Weight |
4.1 g |
7.7 g |
11.4 g |
15.3 g |
22.0 g |
| Material |
075 Aluminum Alloy |
same |
same |
same |
same |
