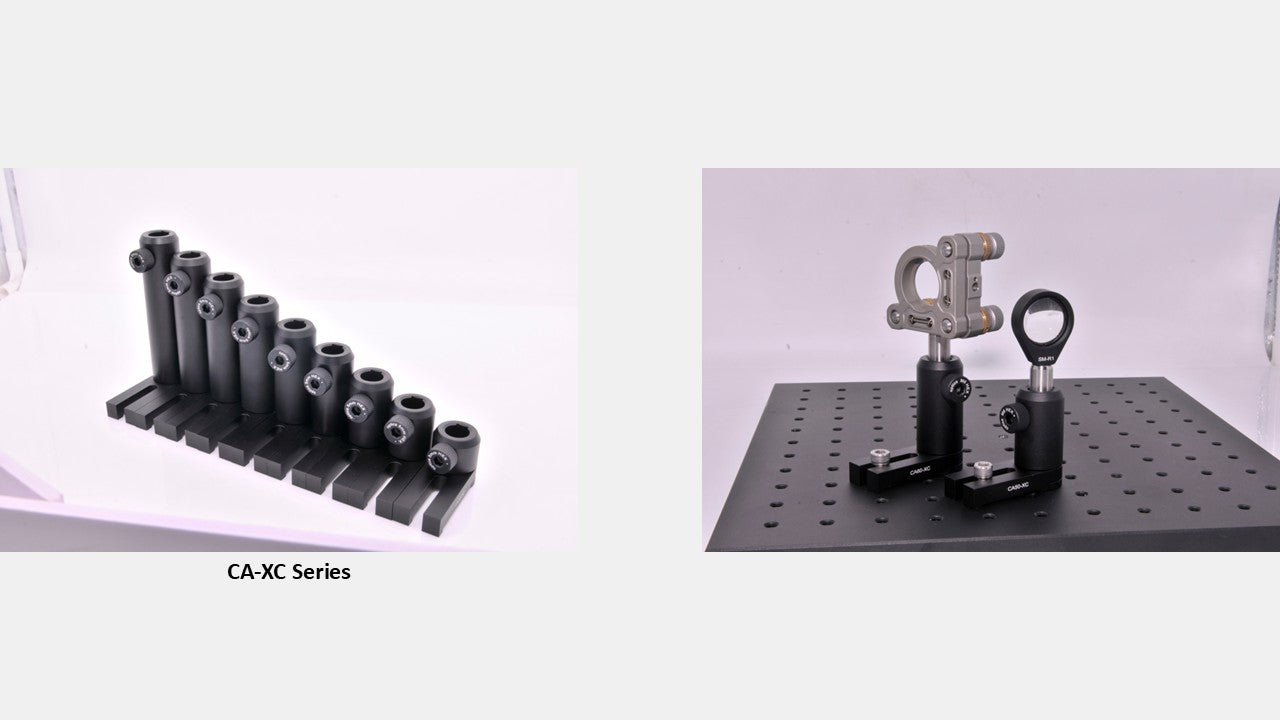

Product Description • Universal post holders feature a swivel fork clamp and magnetic base for easy alignment; • Spring-loaded thumbscrew holds the post in place before final tightening; • 360° rotating base allows convenient installation; • Posts can be raised or lowered through the holder base to minimize beam height; • Magnet in the base provides holding force before being secured to the optical table;
These post holders use a rotating base that allows selection among multiple mounting holes on a breadboard. The magnet at the bottom of the base helps provide holding force for coarse optical alignment before final locking, keeping it collinear with the mounting holes on the optical platform. The 360° rotating base adds rotational and magnetic positioning capabilities to the post holder, helping to reduce the time needed for users to assemble optical systems.
Post Holder Diameter: Ø25 mm Material: 7075 Aluminum Alloy + Magnet
Swivel Magnetic Base Size: 62.5 mm × 25.0 mm × 10.9 mm Slot Distance: 6.7 mm × 34.3 mm Material: Aluminum Alloy + Magnet
