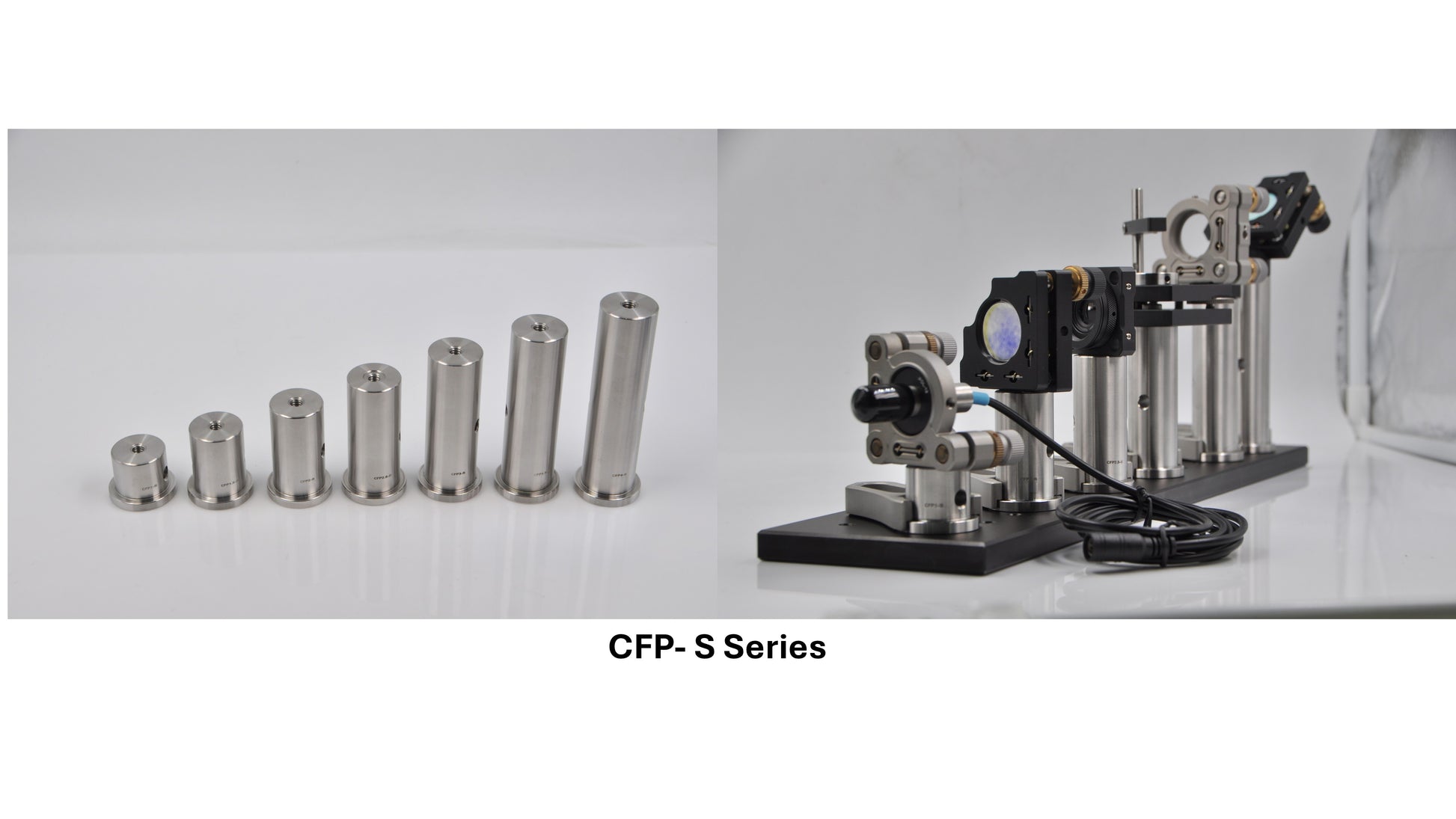

CFP-S Series Ø1 Inch Stainless Steel Posts (Both Ends M6 Threaded Holes)
• Available in various post lengths from 0.5 inch (12.7 mm) to 4 inches (101.6 mm); posts can be stacked using M6 threaded holes to increase height;
• Base compatible with M-BASE-C fork clamp;
• Solid stainless steel construction with a polished, precision-ground surface finish;
• Can be used with adapter screws such as M6 male to M4 female or M6 female to M4 male for flexible conversion;
• A 6 mm through-hole in the center of the post allows additional torque to be applied with a tool when mounting directly to an optical table;
The integrated solid non-magnetic stainless steel base post offers excellent strength and rigidity. This version features M6 threaded holes on both ends. A wide groove around the threaded region helps secure the post when clamped in optical mounts or on optical tables. These base-style posts are available in heights ranging from 0.5 inch (12.7 mm) to 4 inches (101.6 mm). Additional posts can be stacked onto the standard base post to further increase the overall height.
CFP-S4M Series Ø1 Inch Stainless Steel Posts (Both Ends M4 Threaded Holes)
• Available in various post lengths from 0.5 inch (12.7 mm) to 4 inches (101.6 mm); posts can be stacked using M4 threaded holes to increase height;
• Base compatible with M-BASE-C fork clamp;
• Solid stainless steel construction with a polished, precision-ground surface finish;
• Can be used with adapter screws such as M6 male to M4 female or M6 female to M4 male for flexible conversion;
• A 6 mm through-hole in the center of the post allows additional torque to be applied with a tool when mounting directly to an optical table;
The integrated solid non-magnetic stainless steel base post offers excellent strength and rigidity. This version features M4 threaded holes on both ends. A wide groove around the threaded region helps secure the post when clamped in optical mounts or on optical tables. These base-style posts are available in heights ranging from 0.5 inch (12.7 mm) to 4 inches (101.6 mm). Additional posts can be stacked onto the standard base post to further increase the overall height.
