Product Description • 360° continuous rotation; • Scale with 2° increments and alignment line; • Platform height: 16.1 mm; • Position locking mechanism via side set screw;

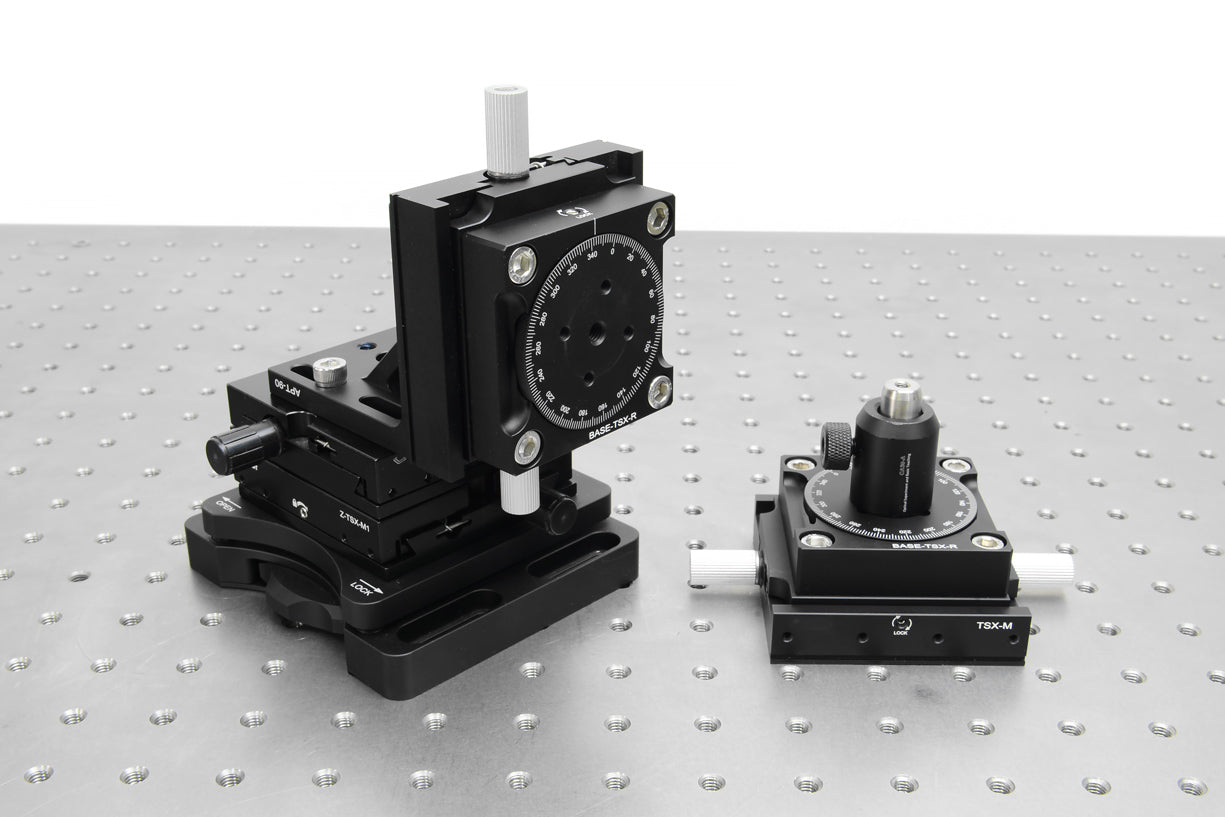

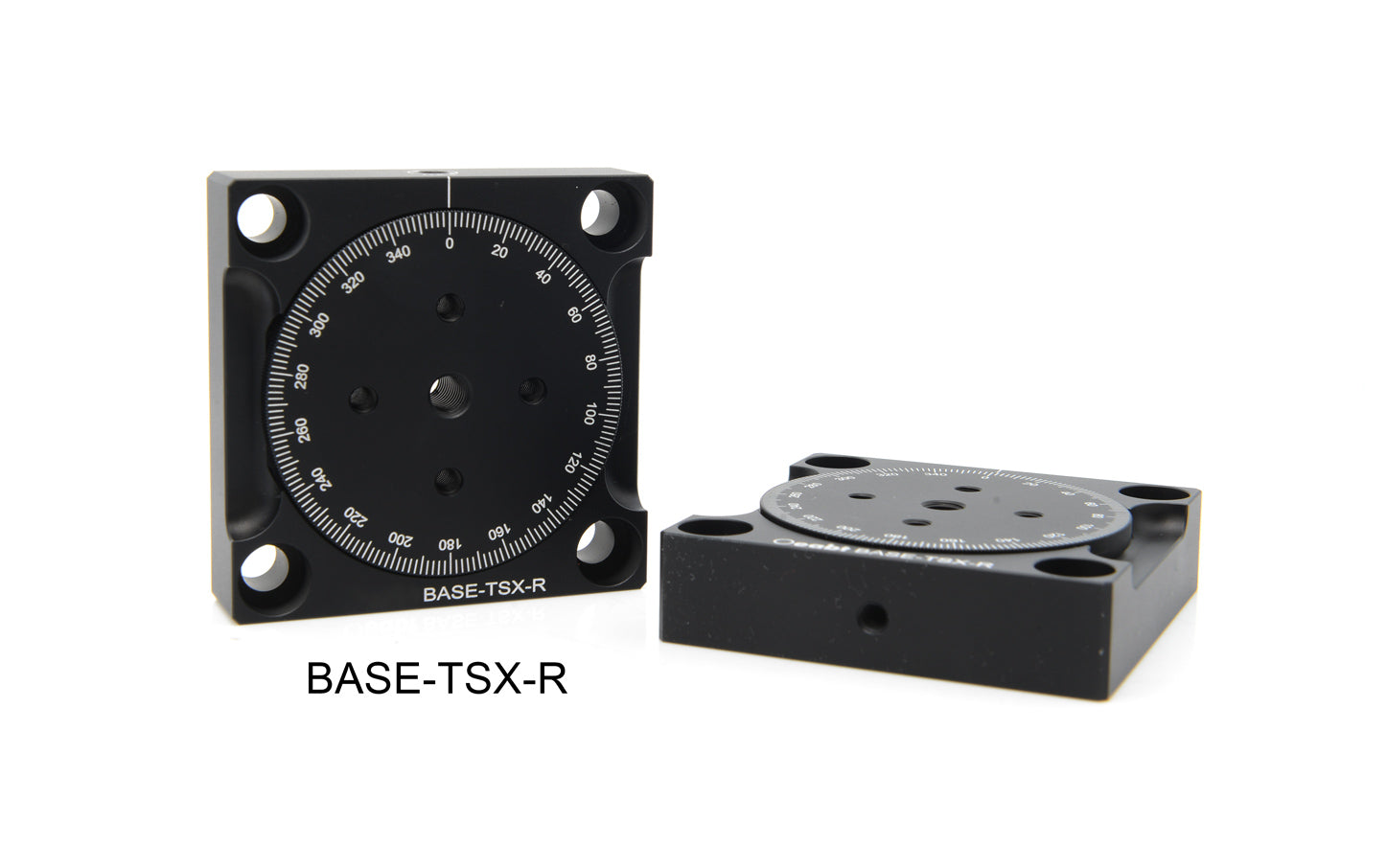

The rotary base offers 360° continuous rotation, ideal for opto-mechanical assemblies requiring smooth, backlash-free rotation. The platform features a 2° increment angular scale, with numeric markings every 20° for easy angle setting and alignment.
Model
BASE-TSX-R
Dimensions
62.2 mm × 62.2 mm × 16.1 mm
Travel Range
360° rotation, 2° scale increments
Load Capacity
Load on horizontal surface: 110 lbs (50 kg); Load on vertical surface: 9 lbs (4 kg)
