Ø25.0 mm Pedestal Pillar Post

Ø25.0 mm Pedestal Pillar Post

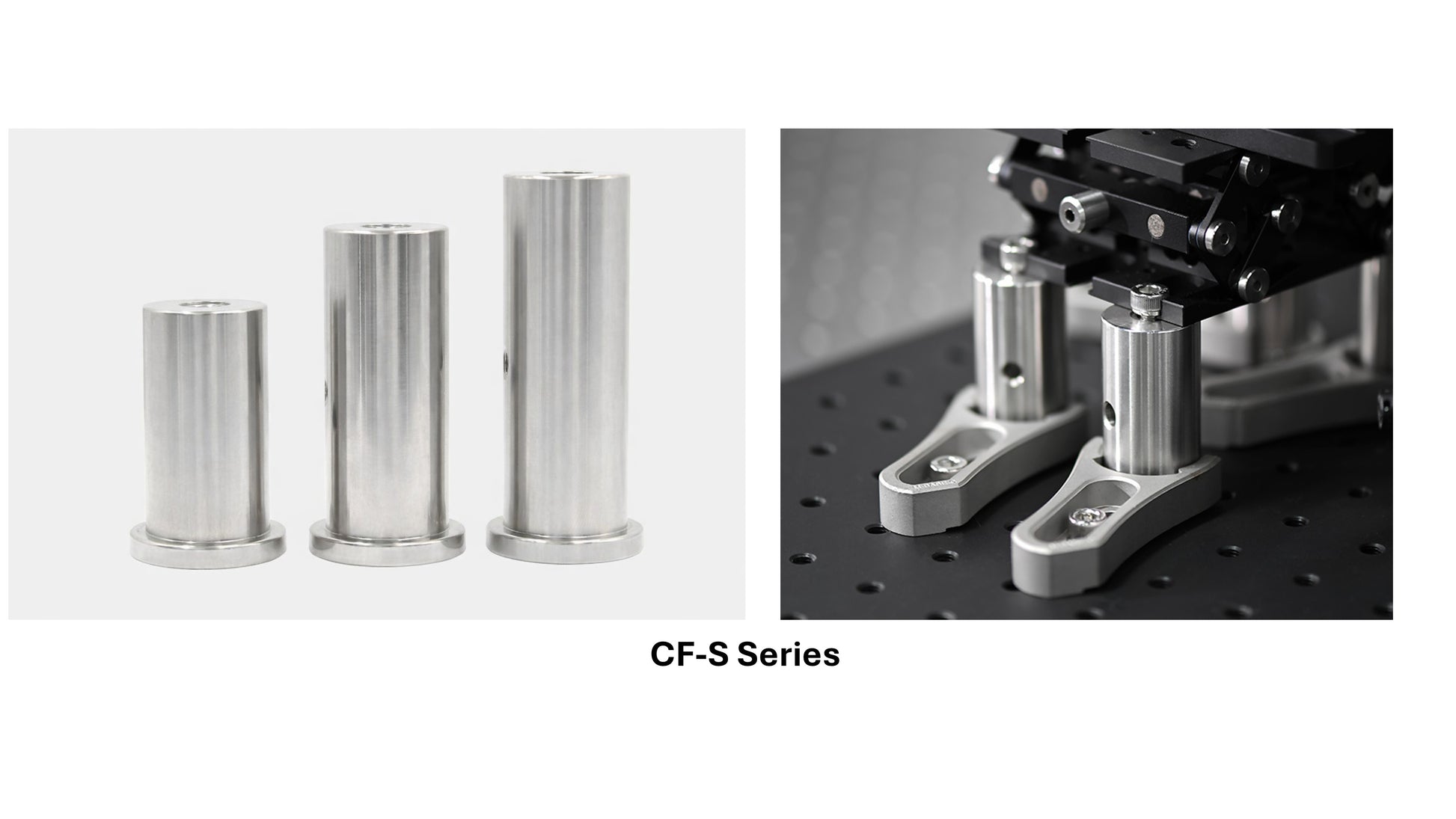

CF-S Series Ø25 mm Stainless Steel Posts

• Ø25 mm post, solid stainless steel construction;
• Base compatible with clamping forks;
• Available in rod lengths of 50–75 mm;
• M6 threaded holes on both ends allow for stacked installation;

The Ø25 mm post is made from high-quality non-magnetic stainless steel, offering excellent strength and rigidity.



Model Specifications Base Dimensions Thread Type Weight Material
CF50-S Ø25 mm × 50 mm Ø31.6 mm × 4.8 mm 2 × M6 (depth 16 mm); 1 × Ø5 mm through hole 191.7 g 304 Stainless Steel
CF65-S Ø25 mm × 65 mm Ø31.6 mm × 4.8 mm 2 × M6 (depth 16 mm); 1 × Ø5 mm through hole 251.6 g 304 Stainless Steel
CF75-S Ø25 mm × 75 mm Ø31.6 mm × 4.8 mm 2 × M6 (depth 16 mm); 1 × Ø5 mm through hole 288.0 g 304 Stainless Steel
View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total
CF50-S
CF50-S
$28.89/ea		 $0.00 Ø25.0 mm Pedestal Pillar Post, M6 Taps, L = 50 mm pdf No file 2 weeks
$28.89/ea $0.00
CF65-S
CF65-S
$30.52/ea		 $0.00 Ø25.0 mm Pedestal Pillar Post, M6 Taps, L = 65 mm pdf No file 2 weeks
$30.52/ea $0.00
CF75-S
CF75-S
$31.60/ea		 $0.00 Ø25.0 mm Pedestal Pillar Post, M6 Taps, L = 75 mm pdf No file 2 weeks
$31.60/ea $0.00
