Periscope Assembly

Periscope Assembly

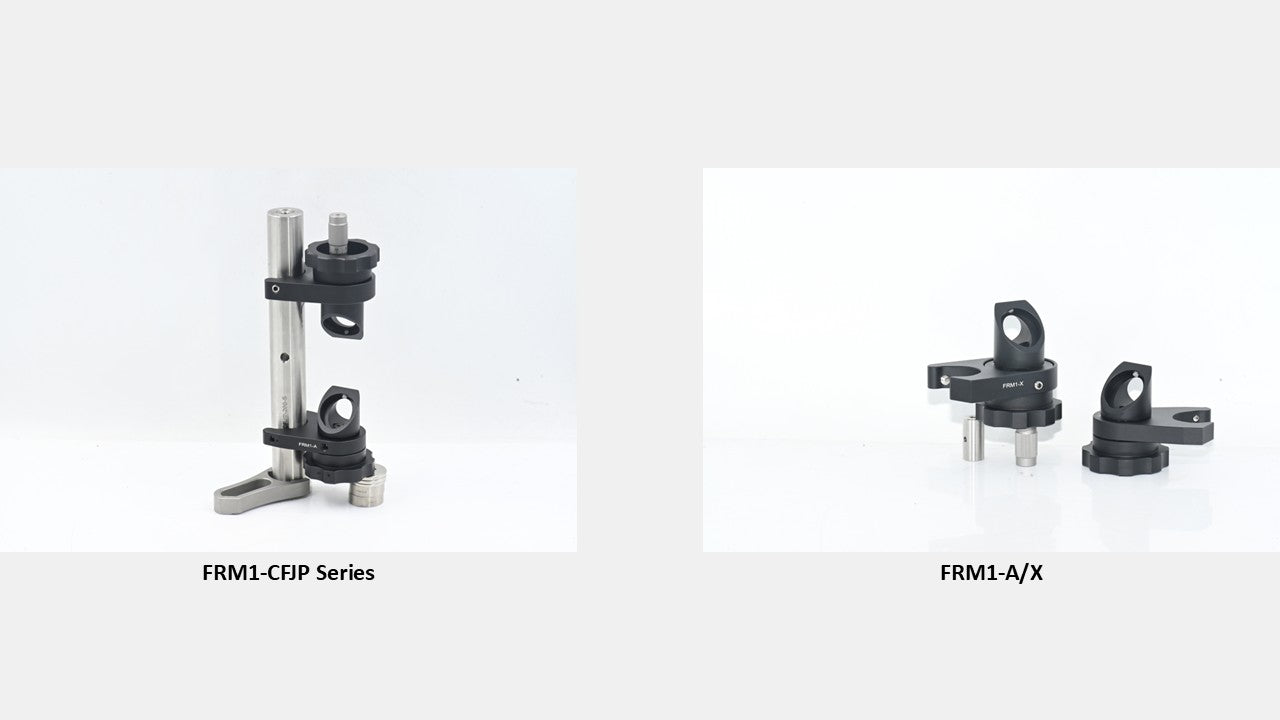

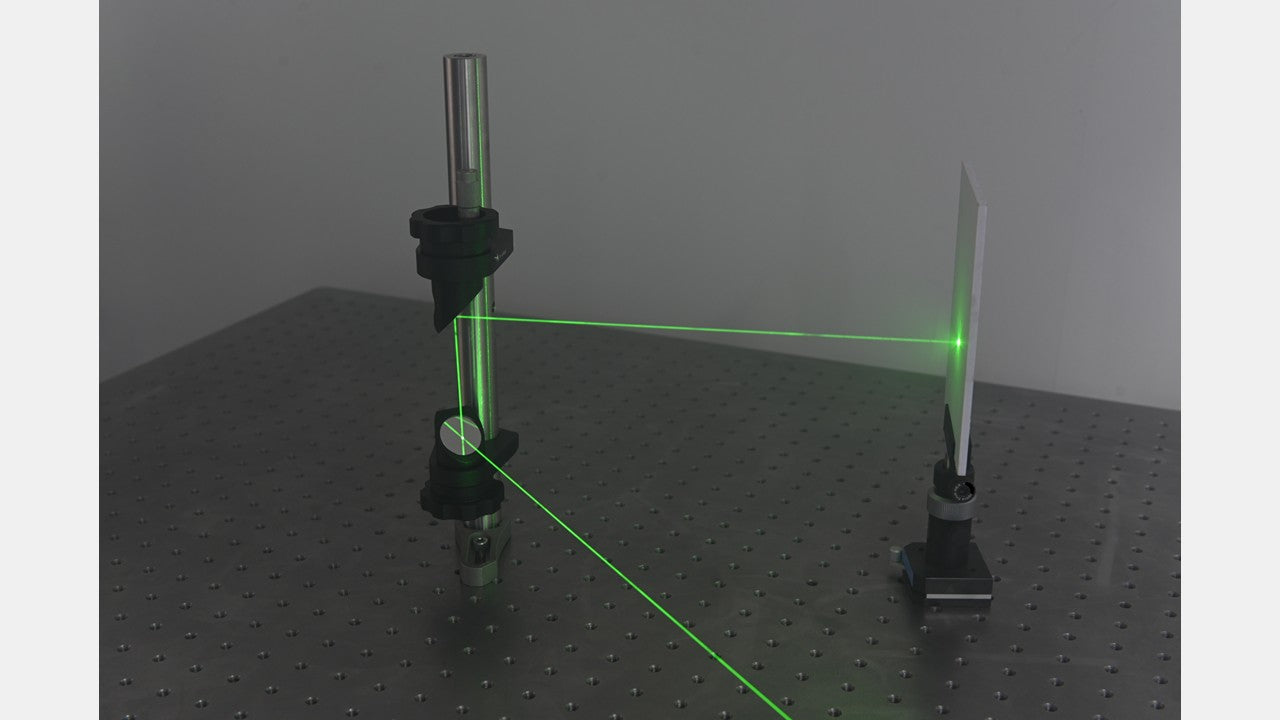

FRM1-A / FRM1-X Beam Redirecting and Tilting Mount

• Redirect beams or change beam height in optical systems
• Designed to be mounted on Ø25 mm or Ø1 inch optical posts
• Provides 360° continuous rotation, and ±10° pitch adjustment (FRM1-X)
• Minimum beam height: 46.2 mm
• Maximum beam height: Post height − 50.3 mm

The FRM1-A bottom mount and FRM1-X top tilting mount can be used independently or in combination. The clamping block allows attachment to posts of any length, enabling custom beam redirection setups.

Model Adjustment Range Optic Mounting Clear Aperture Weight Material
FRM1-A 360° continuous rotation Ø1 inch, thickness ≥ 3.3 mm Ø16.66 mm 160.0 g 7075 Aluminum Alloy
FRM1-X 360° continuous rotation; ±10° pitch (9.43 mrad/rev) Ø1 inch, thickness ≥ 3.3 mm Ø16.66 mm 201.2 g 7075 Aluminum Alloy
