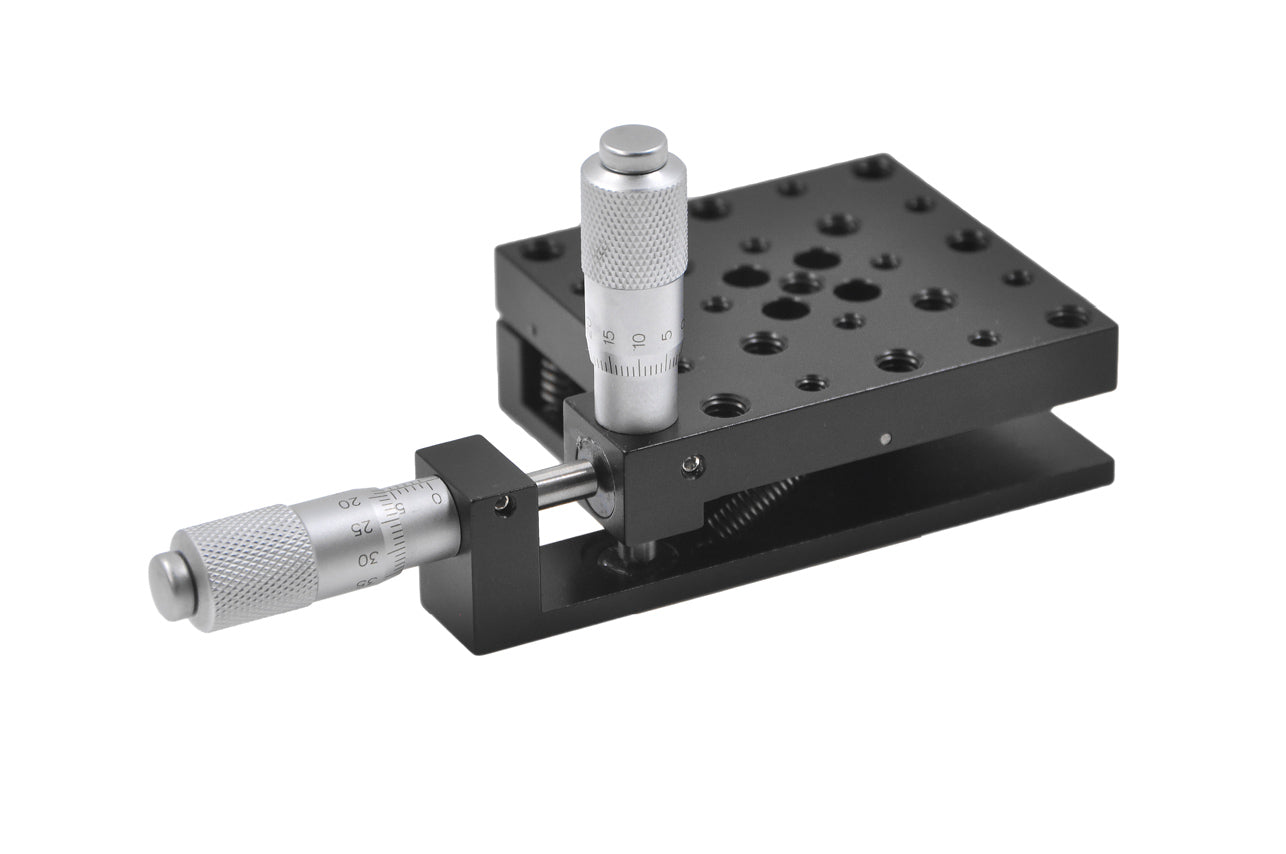

Pitch and Yaw Tilt Platforms

Pitch and Yaw Tilt Platforms

Product Description

• Provides ±2.5° small-angle rotation and ±5° pitch/tilt adjustment.

• Working surface features a regular array of M6–M4 threaded holes.

• Compatible with mounting various types of laser sources and optical components.

• Differential adjustment axis allows for precise angular tuning; spring-loaded return enhances flexibility.

• Constructed from industrial-grade 7075 aluminum alloy with black anodized finish.

The stage enables fine angular adjustments within a small range and can be conveniently operated using a screw mechanism or micrometer head.

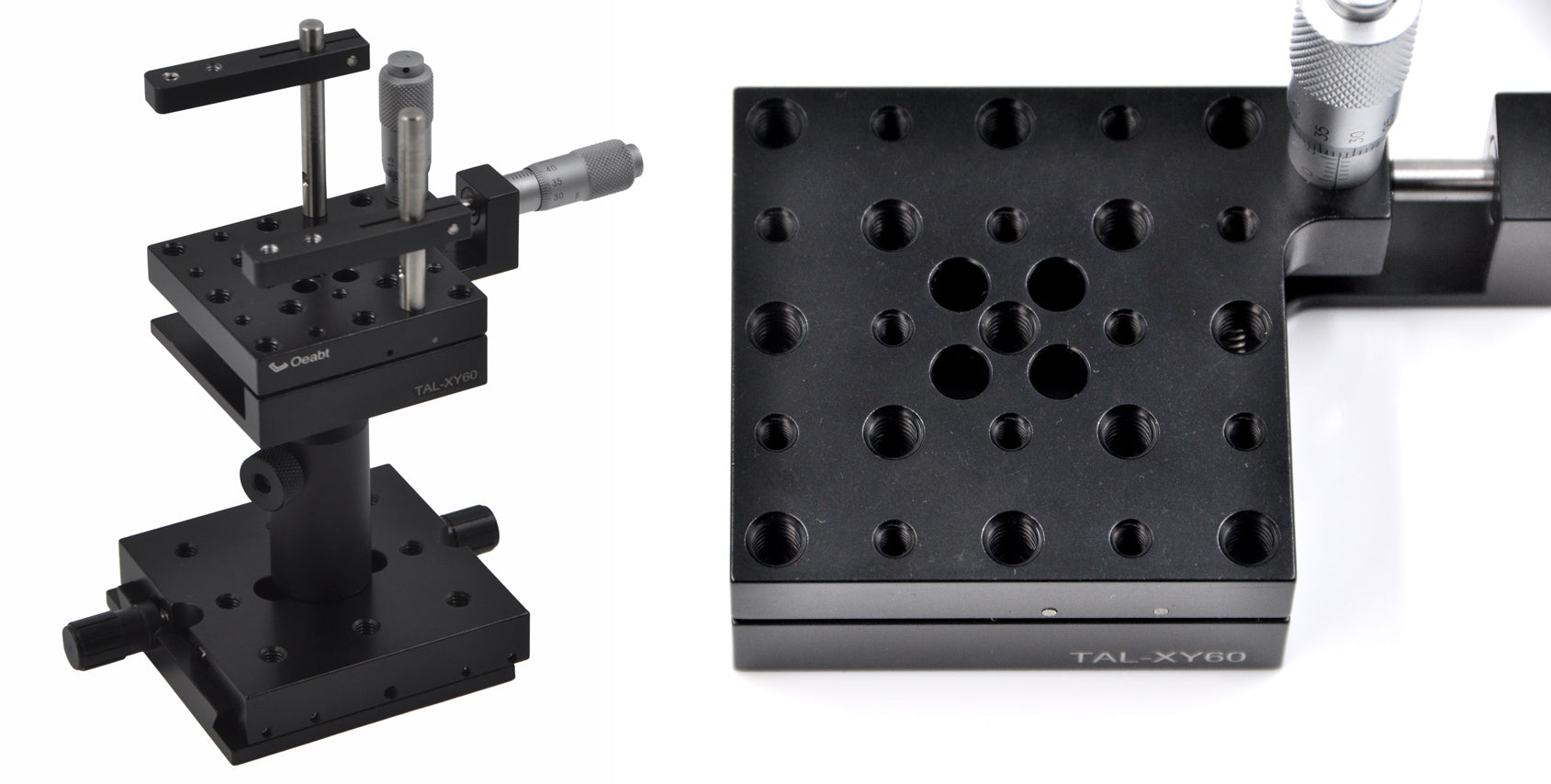

Mounting holes on the bottom of the product allow for direct integration with other stages, while threaded holes on the top platform make it easy for users to mount components.

View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total

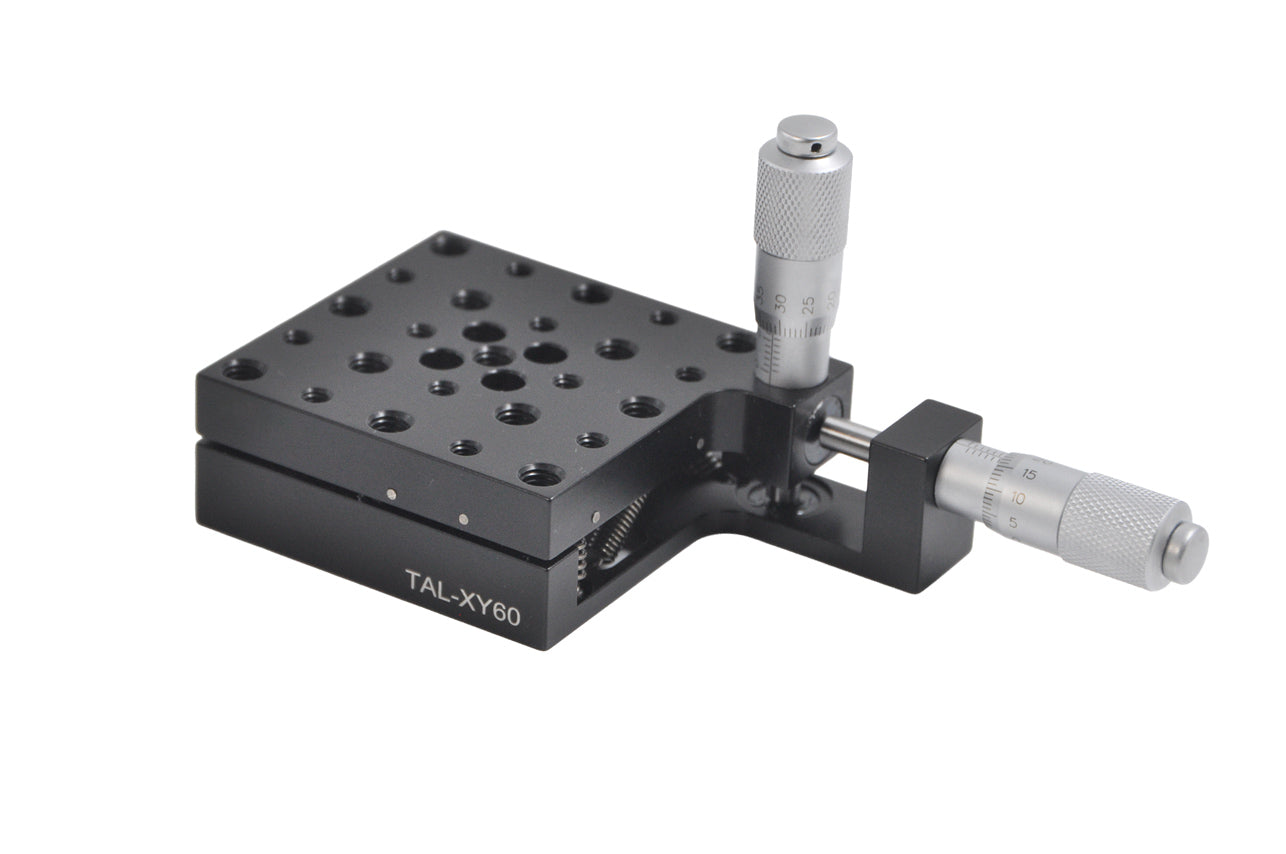

TAL-XY60
TAL-XY60
$240.00/ea		 $0.00 Pitch and Yaw Accessory Tilt Platform with Micrometers pdf No file 2 weeks
$240.00/ea $0.00
