DINGLUN

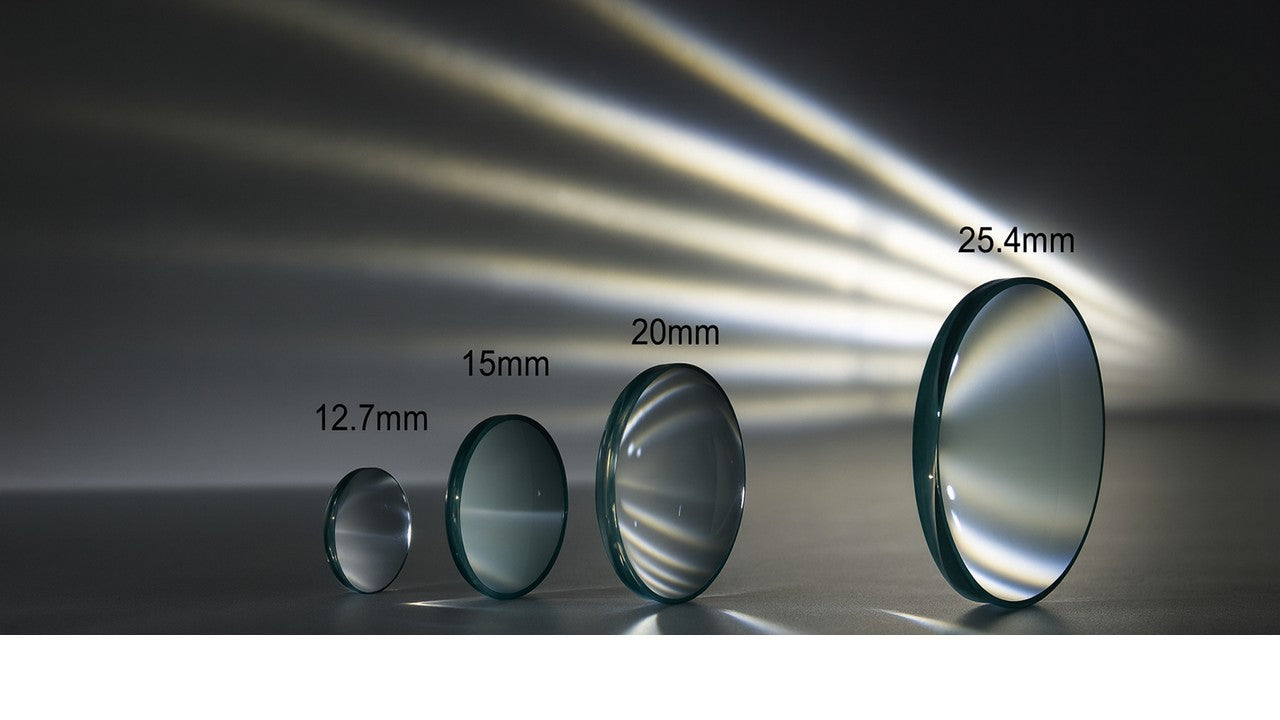

Plano-Convex Lens

Plano-Convex Lens

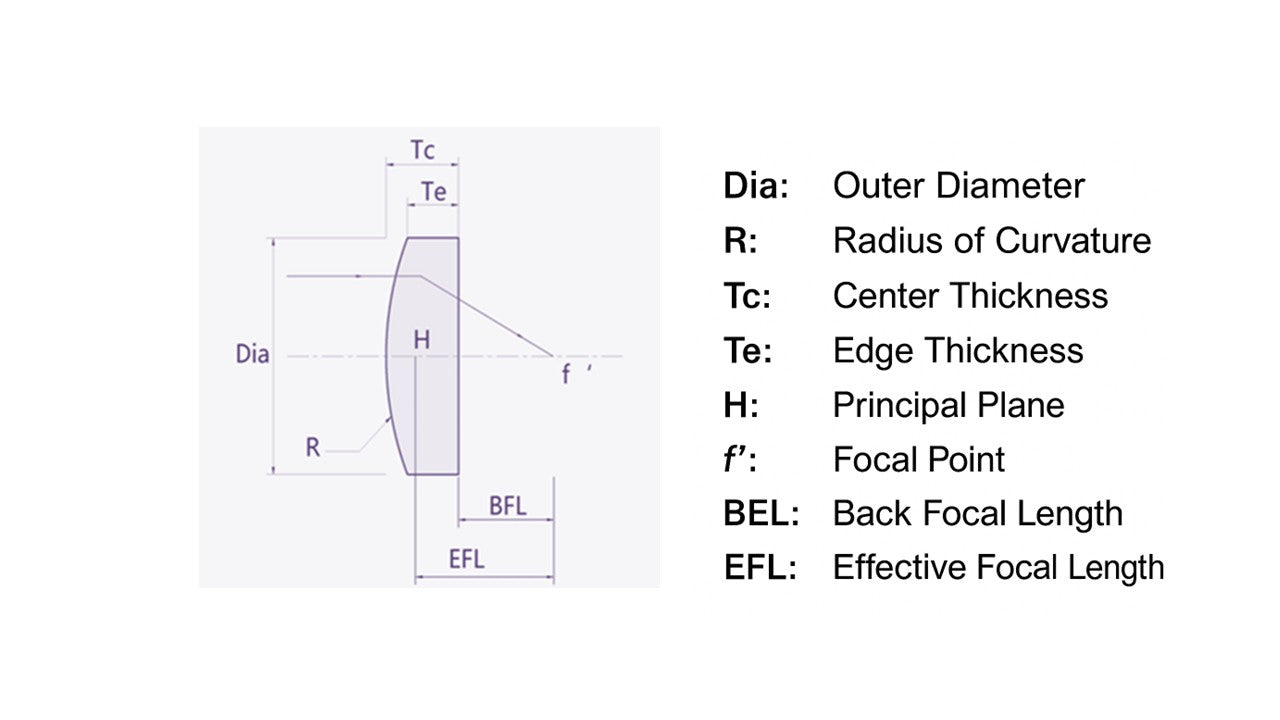

Product # Dia (mm) EFL (mm) R (mm) Tc (mm) Te (mm) BFL (mm)
PK127015 12.7 15 7.75 5.1 1.80 11.64
PK127020 12.7 20 10.33 4.0 1.82 17.37
PK127025 12.7 25 12.91 3.5 1.83 22.69
PK127030 12.7 30 15.50 3.2 1.84 27.91
PK127040 12.7 40 20.66 2.8 1.80 38.16
PK127050 12.7 50 25.84 2.6 1.81 48.33
PK127100 12.7 100 51.64 2.2 1.81 98.55
PK15020 15 20 10.33 5.2 1.97 16.58
PK15030 15 30 15.50 3.2 1.27 27.91
PK15035 15 35 18.08 3.0 1.37 33.04
PK15040 15 40 20.66 3.5 2.09 37.70
PK15050 15 50 25.84 2.5 1.39 48.40
PK15075 15 75 38.73 1.85 1.12 73.78
PK15100 15 100 51.64 3.0 2.45 98.03
PK20025 20 25 12.91 6.25 1.51 20.88
PK20030 20 30 15.50 5.7 2.04 26.26
PK20035 20 35 18.08 5.0 1.98 31.72
PK20040 20 40 20.66 4.6 2.02 36.98
PK20050 20 50 25.84 4.0 1.99 42.87
PK20060 20 60 31 4.7 2.04 56.93
PK20070 20 70 36.16 3.4 1.99 67.48
PK20080 20 80 41.31 3.2 1.97 77.89
PK20100 20 100 51.64 3.0 2.02 98.03
PK254025 25.4 25.4 13.11 11.7 1.87 17.69
PK254030 25.4 30 15.5 8.6 1.99 24.35
PK254035 25.4 35 18.08 7.2 1.99 30.27
PK254040 25.4 40 20.66 6.4 2.04 35.79
PK254050 25.4 50.8 26.24 5.1 1.82 47.45
PK254060 25.4 60 31 4.7 1.98 56.93
PK254063 25.4 63.5 32.8 4.75 2.19 60.39
PK254075 25.4 75 38.73 4.1 1.96 72.30
PK254100 25.4 100 51.64 3.6 2.01 97.63
PK254125 25.4 125 64.55 3.3 2.04 122.83
PK254150 25.4 150 77.46 3.1 2.05 147.96
PK254200 25.4 200 103.28 2.8 2.02 198.16
PK254250 25.4 250 129.1 2.6 1.97 248.30
PK254300 25.4 300 154.92 2.5 1.98 298.37
PK254400 25.4 400 206.56 2.4 2.00 398.44
PK254500 25.4 500 258.19 2.3 1.99 498.49
View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total
PK127015
PK127015
$22.95/ea		 $0.00 No info No pdf No file 2 weeks
$22.95/ea $0.00
PK127020
PK127020
$22.59/ea		 $0.00 No info No pdf No file 2 weeks
$22.59/ea $0.00
PK127025
PK127025
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
PK127030
PK127030
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
PK127040
PK127040
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
PK127050
PK127050
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
PK127100
PK127100
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
PK15020
PK15020
$23.80/ea		 $0.00 No info No pdf No file 2 weeks
$23.80/ea $0.00
PK15030
PK15030
$22.95/ea		 $0.00 No info No pdf No file 2 weeks
$22.95/ea $0.00
PK15035
PK15035
$22.10/ea		 $0.00 No info No pdf No file 2 weeks
$22.10/ea $0.00
PK15040
PK15040
$22.10/ea		 $0.00 No info No pdf No file 2 weeks
$22.10/ea $0.00
PK15050
PK15050
$22.10/ea		 $0.00 No info No pdf No file 2 weeks
$22.10/ea $0.00
PK15075
PK15075
$22.10/ea		 $0.00 No info No pdf No file 2 weeks
$22.10/ea $0.00
PK15100
PK15100
$22.10/ea		 $0.00 No info No pdf No file 2 weeks
$22.10/ea $0.00
PK20025
PK20025
$28.05/ea		 $0.00 No info No pdf No file 2 weeks
$28.05/ea $0.00
PK20030
PK20030
$26.35/ea		 $0.00 No info No pdf No file 2 weeks
$26.35/ea $0.00
PK20035
PK20035
$25.50/ea		 $0.00 No info No pdf No file 2 weeks
$25.50/ea $0.00
PK20040
PK20040
$25.50/ea		 $0.00 No info No pdf No file 2 weeks
$25.50/ea $0.00
PK20050
PK20050
$23.80/ea		 $0.00 No info No pdf No file 2 weeks
$23.80/ea $0.00
PK20060
PK20060
$23.80/ea		 $0.00 No info No pdf No file 2 weeks
$23.80/ea $0.00
PK20070
PK20070
$23.80/ea		 $0.00 No info No pdf No file 2 weeks
$23.80/ea $0.00
PK20080
PK20080
$23.80/ea		 $0.00 No info No pdf No file 2 weeks
$23.80/ea $0.00
PK20100
PK20100
$21.25/ea		 $0.00 No info No pdf No file 2 weeks
$21.25/ea $0.00
PK254025
PK254025
$24.65/ea		 $0.00 No info No pdf No file 2 weeks
$24.65/ea $0.00
PK254030
PK254030
$24.06/ea		 $0.00 No info No pdf No file 2 weeks
$24.06/ea $0.00
PK254035
PK254035
$23.46/ea		 $0.00 No info No pdf No file 2 weeks
$23.46/ea $0.00
PK254040
PK254040
$23.12/ea		 $0.00 No info No pdf No file 2 weeks
$23.12/ea $0.00
PK254050
PK254050
$22.36/ea		 $0.00 No info No pdf No file 2 weeks
$22.36/ea $0.00
PK254060
PK254060
$22.19/ea		 $0.00 No info No pdf No file 2 weeks
$22.19/ea $0.00
PK254063
PK254063
$22.10/ea		 $0.00 No info No pdf No file 2 weeks
$22.10/ea $0.00
PK254075
PK254075
$22.10/ea		 $0.00 No info No pdf No file 2 weeks
$22.10/ea $0.00
PK254100
PK254100
$21.25/ea		 $0.00 No info No pdf No file 2 weeks
$21.25/ea $0.00
PK254125
PK254125
$21.25/ea		 $0.00 No info No pdf No file 2 weeks
$21.25/ea $0.00
PK254150
PK254150
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
PK254200
PK254200
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
PK254250
PK254250
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
PK254300
PK254300
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
PK254400
PK254400
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
PK254500
PK254500
$22.00/ea		 $0.00 No info No pdf No file 2 weeks
$22.00/ea $0.00
