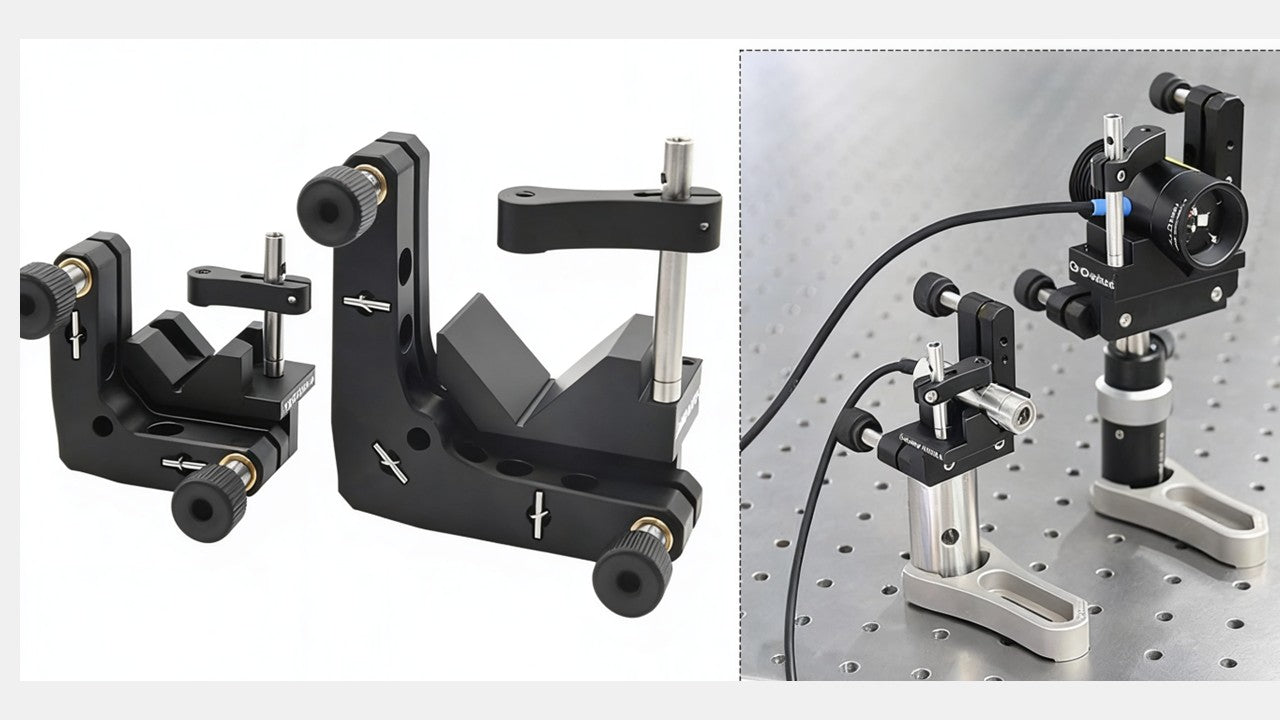

• Uses a clamping arm to hold cylindrical components securely • Compatible with Ø2 mm to Ø41.7 mm cylindrical components such as fiber collimators, laser modules • Provides ±4° pitch and yaw adjustment • Height can be adjusted via optical post mounting position • Equipped with M6×0.35 fine adjustment screws, offering 0.84° per turn precision
Model
Dimensions (W×D×H)
Clamping Diameter Range
Tilt Range
Weight
Material
VBTM-A
51.3 mm × 38.1 mm × 50.4 mm
Ø2 mm – Ø20.8 mm
±4°, 0.84°/turn
96.1 g
Aluminum Alloy + Stainless Steel
VBTM-B
78.0 mm × 39.6 mm × 82.6 mm
Ø7.4 mm – Ø41.7 mm
±4°, 0.84°/turn
196.4 g
Aluminum Alloy + Stainless Steel

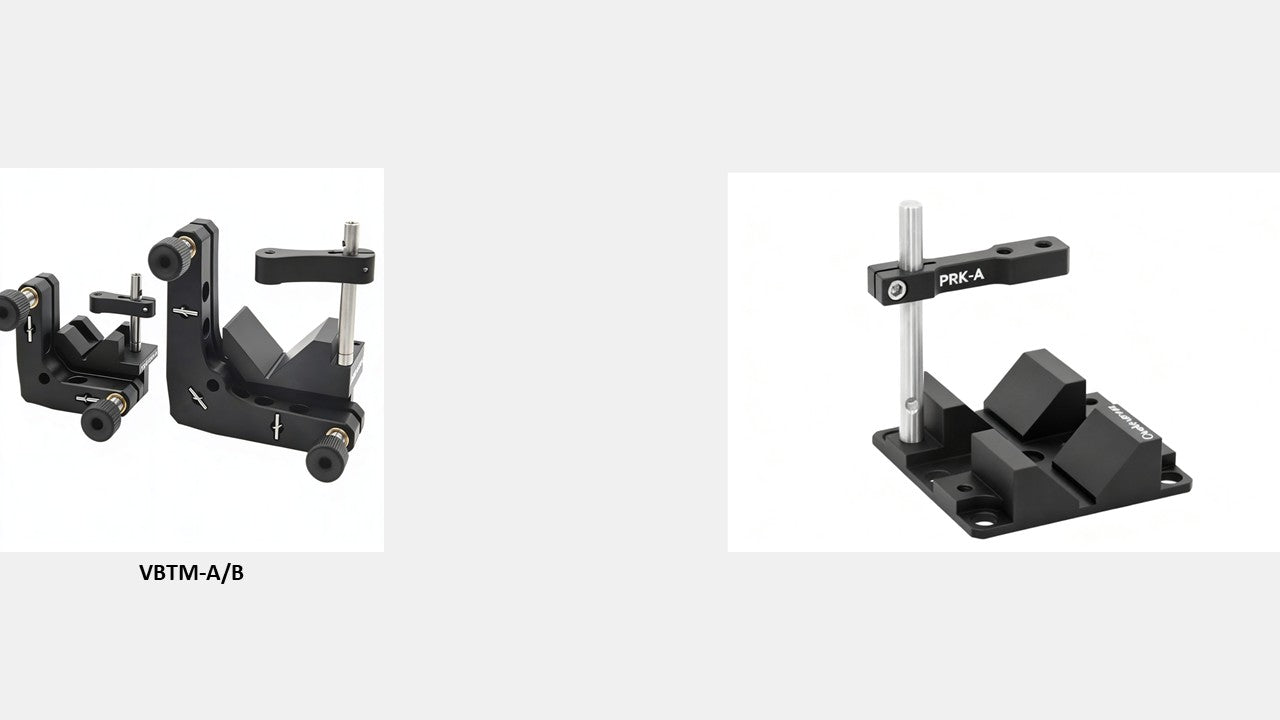

MPV-60K1 V-Groove Mount with Clamping Arm
• Compatible with Ø13.5 mm – Ø42.0 mm cylindrical components • V-block and pressure arm create stable 3-point contact • Each unit includes one PRK1-A pressure arm with nylon-tipped set screw (2.0 mm hex) • Multiple mounting threaded and countersunk holes on the V-block for flexible integration • Compatible with Ø12 mm posts and platform-based adjustment mounts
