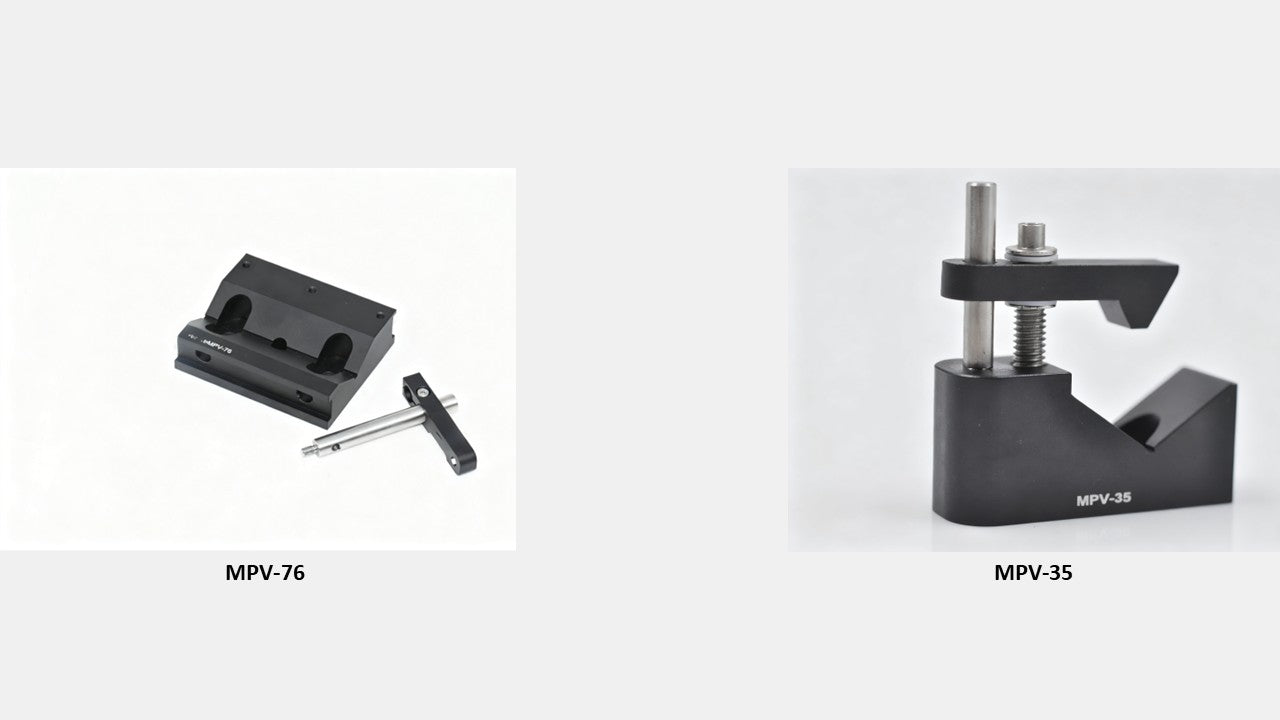

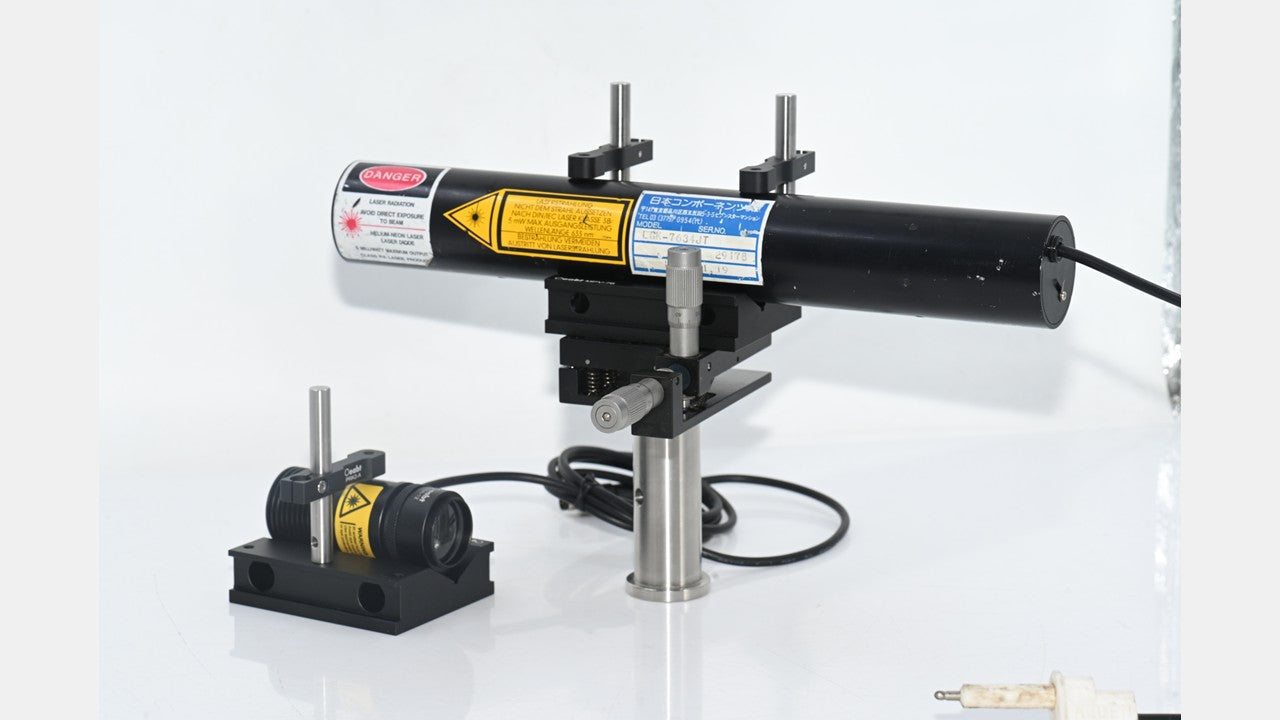

• Supports Ø9.0 mm – Ø51.5 mm cylindrical components • V-block and pressure arm provide stable 3-point contact • Includes one PRK2-A pressure arm with nylon-tipped locking screw • Multiple threaded and countersunk holes for flexible mounting • Compatible with Ø12 mm posts and platform-mounted setups • 76 mm long V-block ideal for large cylindrical components like HeNe lasers
Model
Product
Size (L×W×H)
Clamping Range
Weight
Material
MPV-76K2
V-block + PRK2-A
76.2 mm × 62.9 mm × 20.3 mm
Ø9.0 mm – Ø51.5 mm
210.0 g
7075 Aluminum Alloy
MPV-76
V-block only
76.2 mm × 62.9 mm × 20.3 mm
N/A
175.5 g
7075 Aluminum Alloy
MPV-38 Miniature V-Groove Mount
• Compact V-groove clamp for Ø6 mm – Ø12 mm cylindrical components • Ideal for short-length, small-diameter cylindrical components • Space-saving design perfect for small-scale experiments and OEM systems • Can be mounted via M4 countersunk hole on the bottom • 2 mm hex key for tightening or loosening the locking screw
The Miniature V-Groove Mount is perfect for securing small cylindrical components such as fiber collimators. Each base includes a clamping arm with a nylon-tipped locking screw, which can be tightened using a 2 mm ball driver or hex wrench. The base features M4 threaded holes on both the bottom and side surfaces for flexible post mounting.
