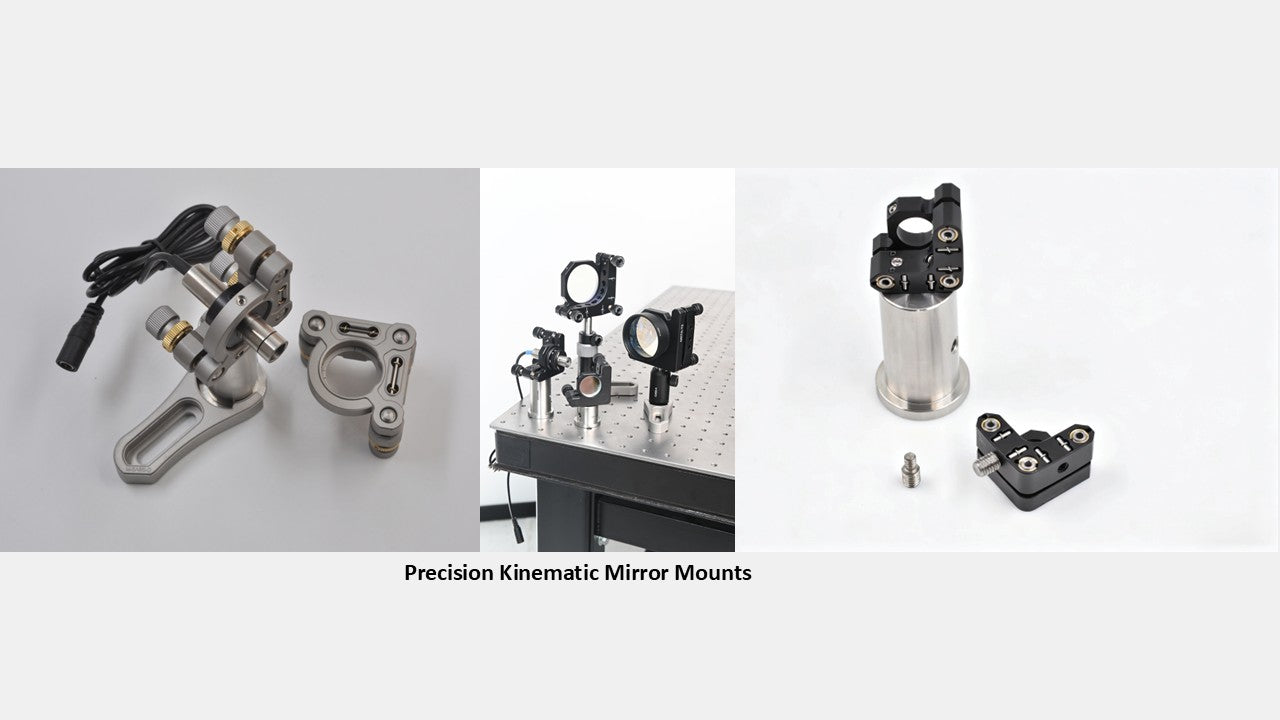

MKTA-T / MKTA-S Series Precision Optical Adjustment Mounts
• Thicker back plate and stronger springs than standard mounts for superior stability • Optical components secured via nylon-tipped setscrews or SM-threaded retaining rings • Designed for Ø1 inch and Ø2 inch optical components • 3 adjustment screws enable ±4° tip/tilt angular range • MKTA-T series compatible with lens tube assemblies (SM1/SM2) • Bottom M4 holes allow versatile mounting orientations
The MKTA series provides ±4° of tilt/pan angular adjustment. With all three adjusters engaged, a Z-axis translation up to 6.4 mm is achievable. Ideal for applications requiring precise angular alignment and high stability.
Model
MKTA-T1
MKTA-T2
MKTA-S1
MKTA-S2
Dimensions
50.3 mm × 50.3 mm × 23.7 mm (excluding adjusters)
76.4 mm × 76.4 mm × 27.5 mm
50.3 mm × 50.3 mm × 23.7 mm
76.4 mm × 76.4 mm × 27.5 mm
Mounting Aperture
SM1 (1.035”-40) Internal Thread
SM2 (2.035”-40) Internal Thread
Ø25.6 mm smooth bore
Ø51.1 mm smooth bore
Supported Optics
Ø1" (25 mm), thickness ≤4 mm
Ø2" (50 mm), thickness ≤6.3 mm
Ø1" (25 mm), thickness >3.5 mm
Ø2" (50 mm), thickness >5.0 mm
Angular Range
±4° tip/tilt, Z-axis shift up to 6.4 mm (using all 3 adjusters)
Same
Same
Same
Adjustment Resolution
0.5° per turn (8 mrad/turn)
Same
Same
Same
Mounting Holes
M4 × 2 (countersunk)
M4 × 6 (countersunk)
M4 × 2 (countersunk)
M4 × 6 (countersunk)
Weight
94.8 g
170.0 g
94.3 g
168.9 g
Material
Aluminum Alloy

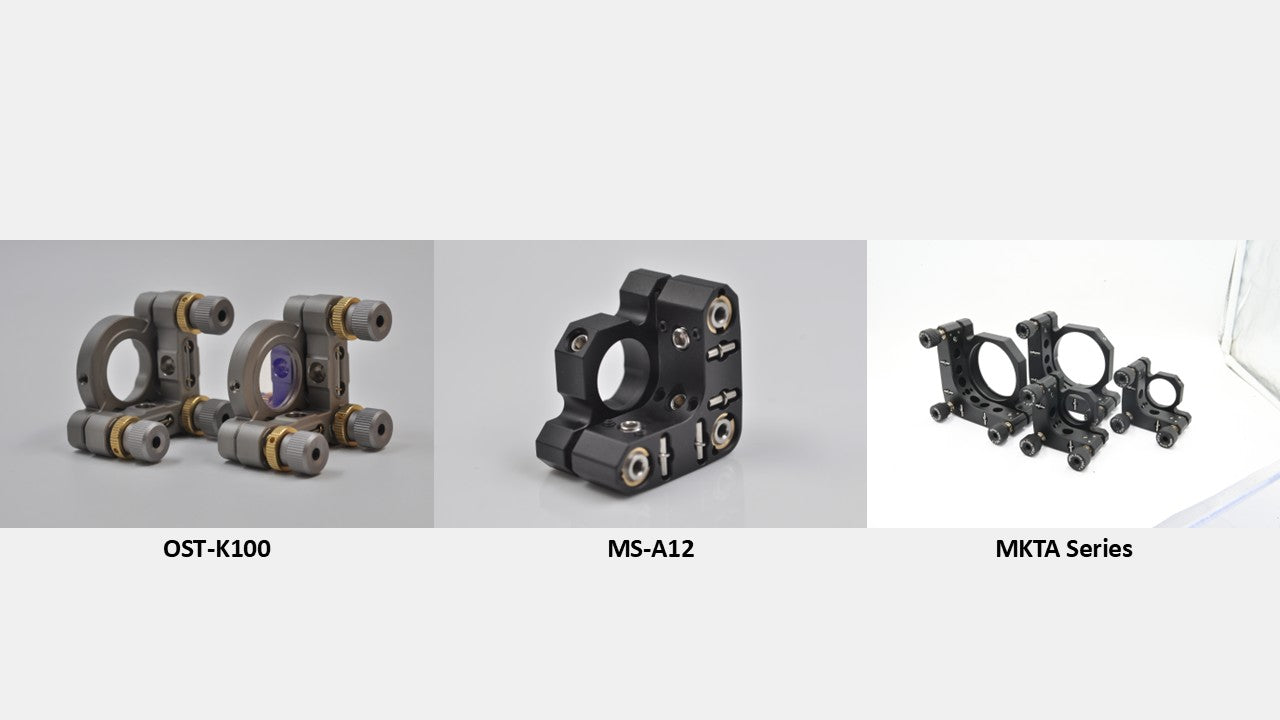

MS-A12 Precision Optical Mount (3-Axis)
• Compatible with Ø1/2 inch or Ø12 mm optical components, secured via nylon-tipped setscrew • Compared to standard dual-adjuster mounts, this mount features a thicker back plate, stronger springs, and enhanced stability • Three-axis adjustment with an angular range of ±4° • Uses M5 × 0.25 precision adjusters, offering 12.8 mrad/rev (0.73° per turn) adjustment resolution • M4 threaded mounting hole for rod post installation
MS-A12 is specifically designed with a more robust mechanical structure to improve stability during precise angular adjustments of small-diameter optics.
OST-K100 Three-Axis Precision Optical Mount (±4º ~ ±6º Adjustment)
• Equipped with M4 mounting hole for secure post installation • Three-axis manual micrometer adjuster design with ±4° to ±6° pitch/yaw adjustment range • Directly supports Ø1 inch optics, compatible with 2–10 mm thickness • Constructed from high-strength stainless steel for durability and precision • Comes with fine differential micrometers, each fitted with rotary knobs and locking nuts
