• Steering mount designed for Ø1 inch round optical components; • Provides ±4° of tip and tilt adjustment; • Mounts Ø1" (25.4 mm) optics at a 45° angle relative to the optical axis; • Compatible with Ø6 mm cage rods, available with smooth bores or 4-40 threaded holes; • Compatible with 30 mm cage systems and SM1 (1.035"-40) threading; • Includes one M4 hole and one M6 hole for mounting to Ø12 mm or Ø1" posts; • SM1 internal threads allow direct mounting of Ø1" lens tubes;

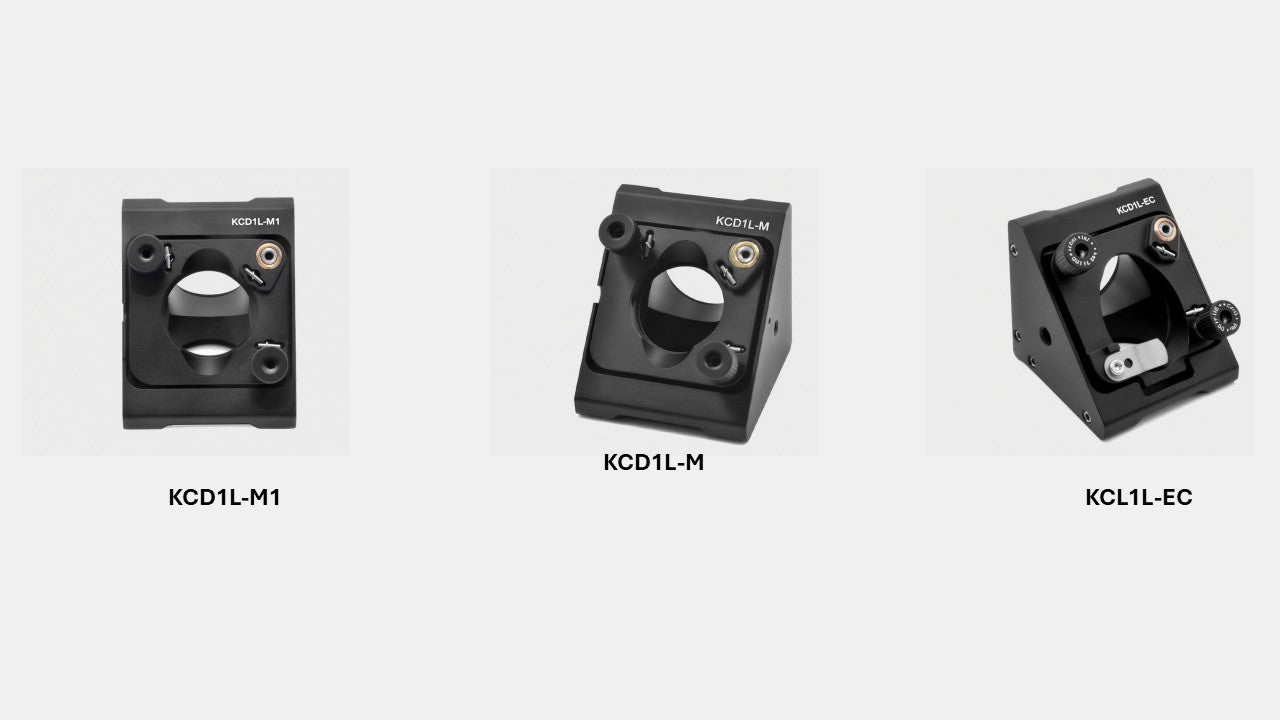

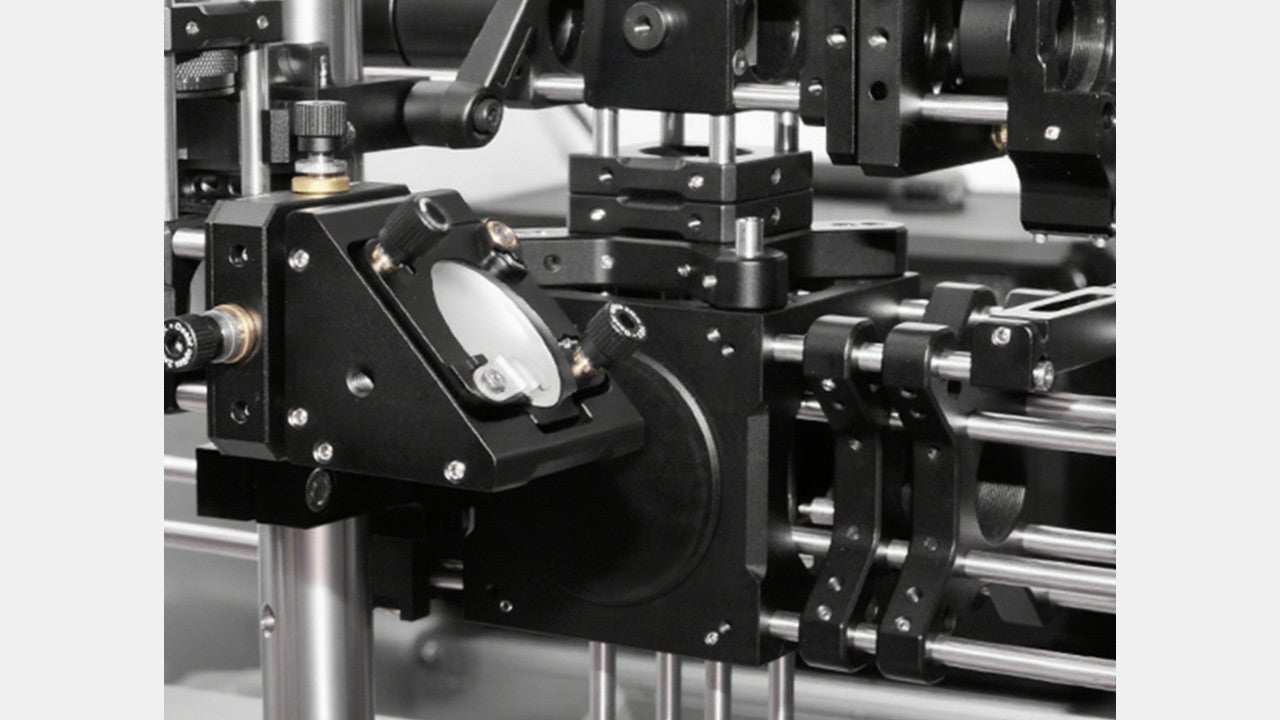

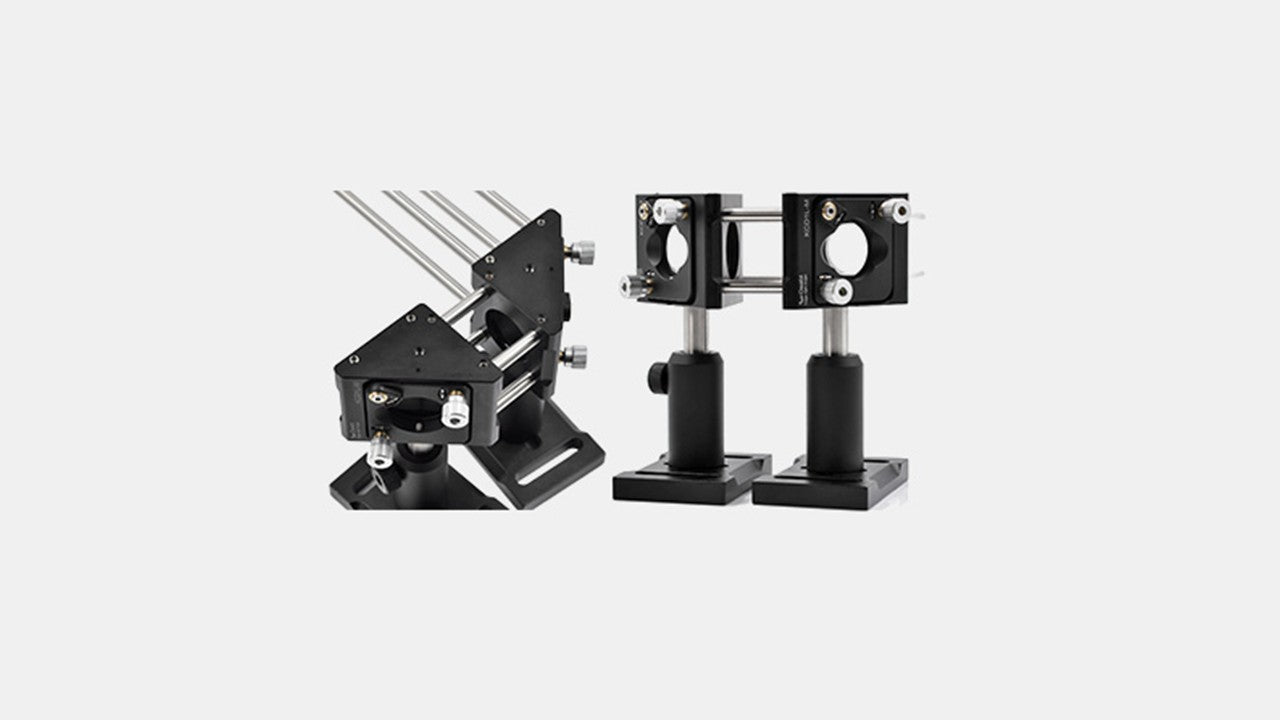

The KCD1L right-angle adjustable mount is designed for easy integration into 30 mm cage systems. Both the input and output ports feature SM1 internal threads, enabling integration of Ø1" lens tubes. The mount includes three 3/16"-100 precision adjusters for fine mirror alignment, enabling precise beam steering within a cage system.
Model
KCD1L-M
KCD1L-M1
Rod Hole Type
Ø6 mm Smooth Bore
4-40 Threaded
Hole Spacing
30 mm× 30 mm
15 mm× 15 mm
Port Thread
SM1 (1.035"-40) Internal Thread
Weight
136.8 g
141 g
Material
7075 Aluminum Alloy
Elliptical Mount Description
• Mounts 1" elliptical optics at a 45° angle relative to the optical axis; • Includes eight Ø6 mm smooth holes for mounting PCM-S series cage rods; • Provides ±4° tip and tilt adjustment; • Enables ±3 mm Z-axis translation when using all three adjusters; • Fully compatible with 30 mm cage systems; • M4 and M6 side-threaded holes allow mounting to Ø12 mm or Ø1" posts; • Offers a larger clear aperture for transmitted light compared to mounts using circular optics;
This right-angle adjustable mount holds a Ø1 inch elliptical optical element (with a short axis of 25.4 mm) at 45° to the optical axis, providing precise tip and tilt alignment within a cage system.
