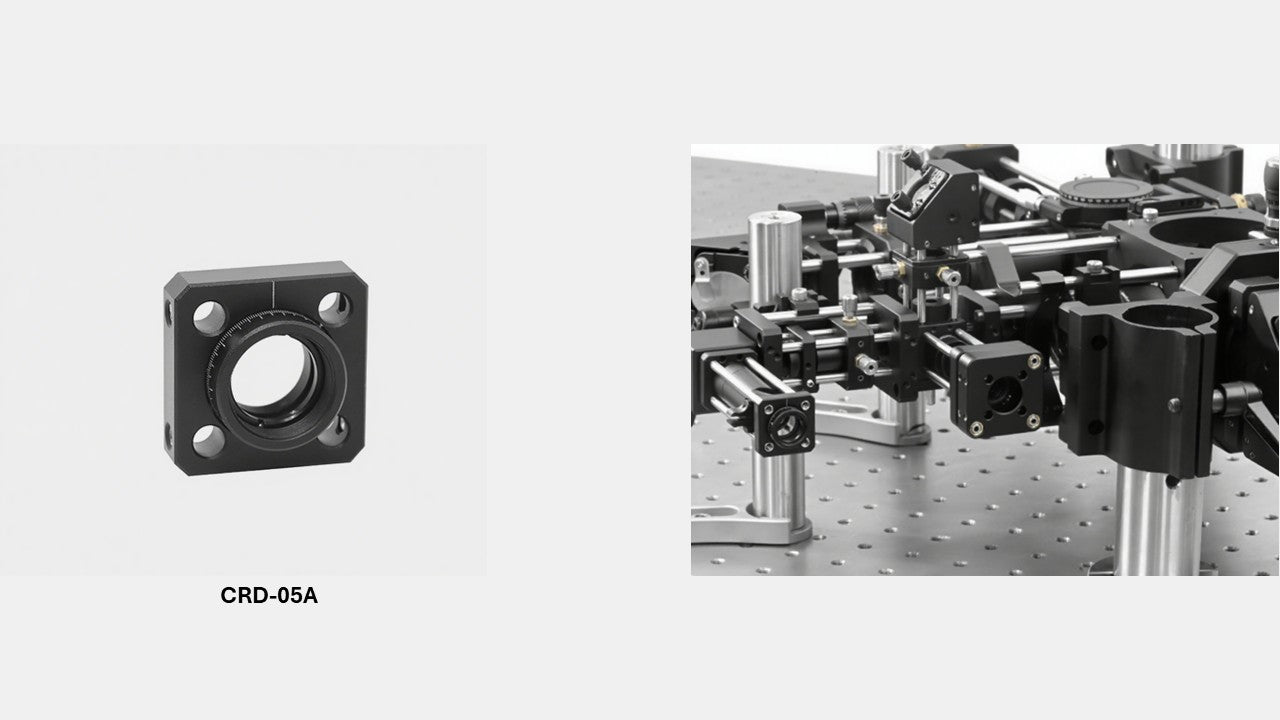

CRD-05A Rotational Mount (SM05-Compatible for 16 mm Cage Systems)
• SM05 (0.535"-40) internal threading. • Supports Ø12.7 mm optics up to 6 mm thick. • 360° continuous rotation with 2° graduated scale. • Compatible with 16 mm cage systems and SM05 lens tubes. • Includes one CSK05 retaining ring.
The CRD-05A Rotational Mount enables precise angular positioning of Ø1/2" optics within compact optical assemblies. It features smooth 360° continuous rotation and a laser-engraved 2° increment scale. A central alignment line aids in visual referencing. The mount is locked in place via a side-located set screw, which can be tightened with a 1.3 mm hex key. Ideal for polarization elements, waveplates, or any component requiring angular adjustment.
