Single-Axis Translation Stage, Travel Range 25 mm

Single-Axis Translation Stage, Travel Range 25 mm

Product Description
• Linear travel range: 25 mm;
• Micrometer head: 0.5 mm pitch, 10 μm per division;
• Differential adjuster: 0.5 mm pitch, 10 μm per division; fine adjustment 42 μm per revolution, accuracy < 1 μm;

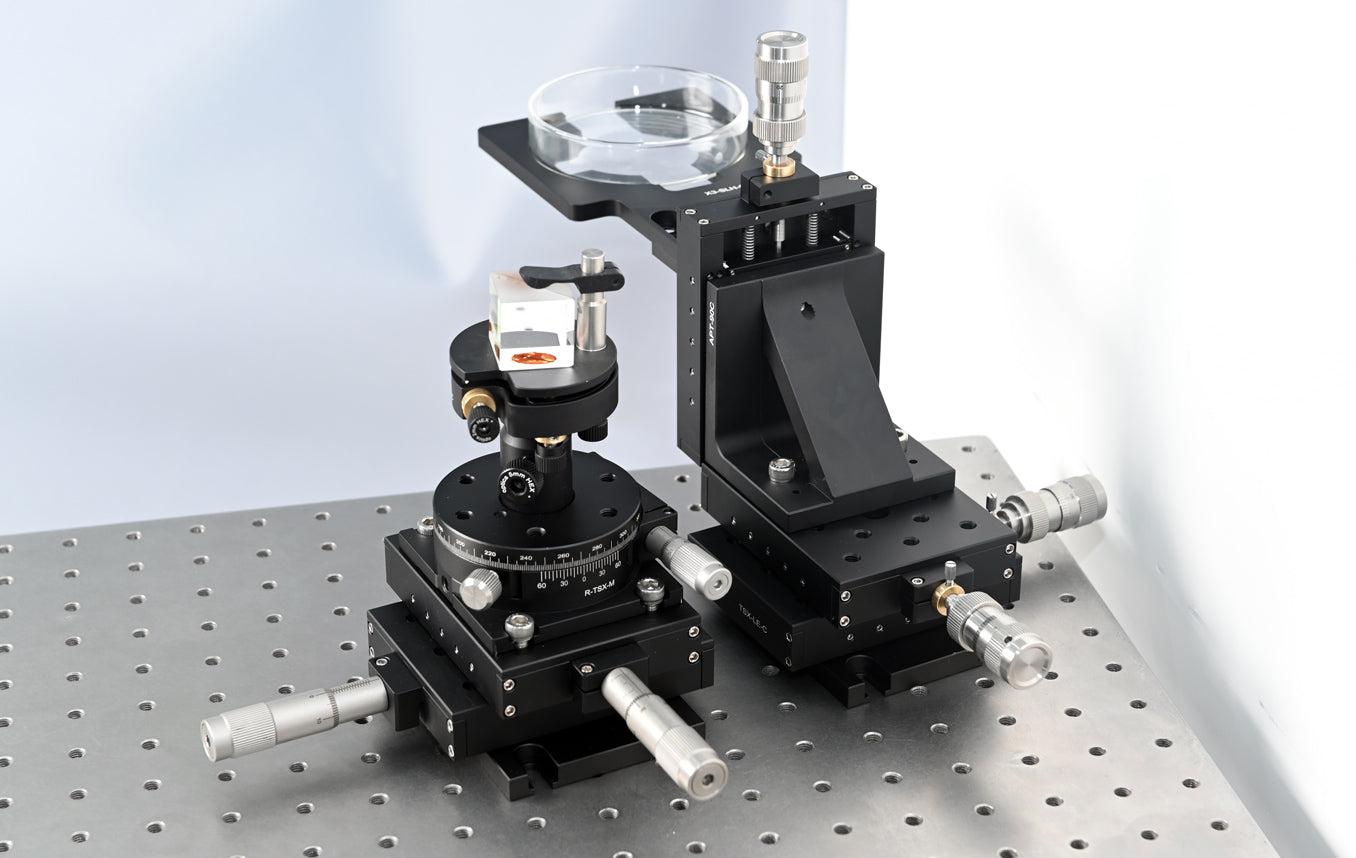

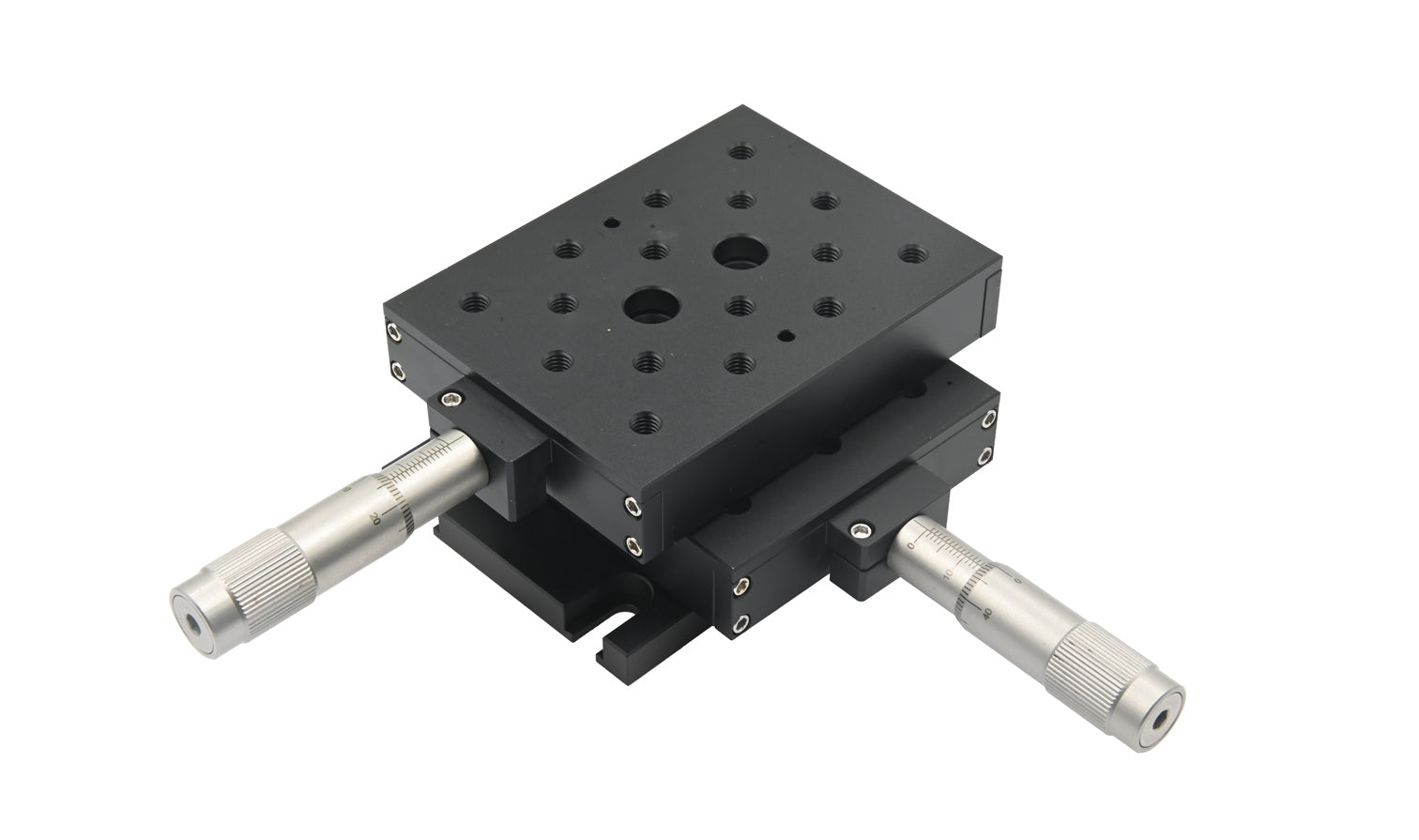

• Modular design allows combination into XY or XYZ configurations;

TSX-LE series translation stages utilize hardened stainless steel linear bearings to provide precise single-axis linear motion for translation applications.

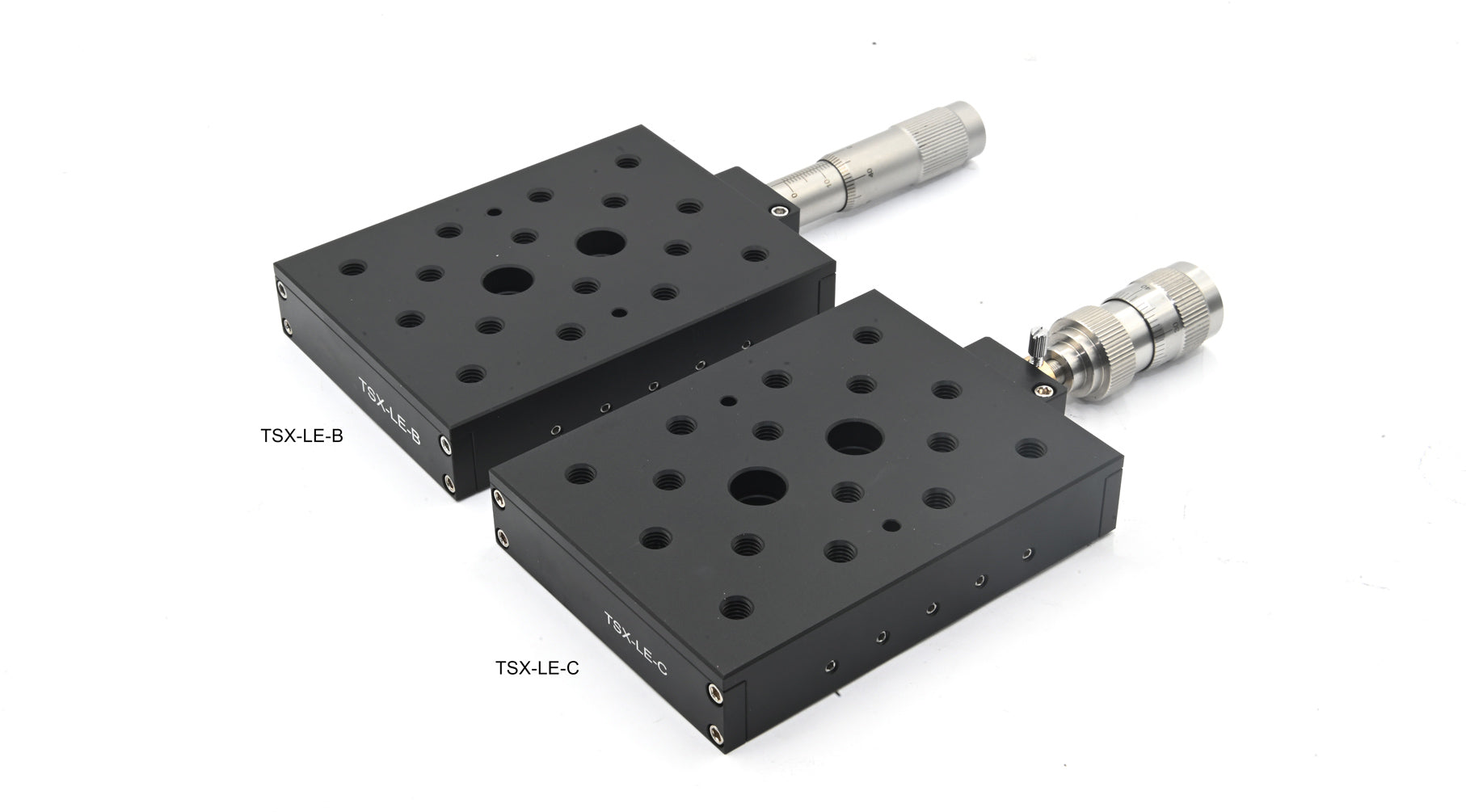

Specification TSX-LE-B TSX-LE-C
Dimensions 189.0 × 76.2 × 20.3 mm 165.3 × 76.2 × 20.3 mm
Drive Mechanism SM25 Micrometer Head DRP41-A Differential Adjuster
Coarse Travel 25 mm, 0.5 mm/rev, 10 μm/div 25 mm, 0.5 mm/rev
Fine Travel — Approx. 42 μm/rev, accuracy < 1 μm
Theoretical Accuracy 10 μm < 1 μm
Weight 426.3 g 434.2 g
Platform Size 101.6 × 76.2 mm 101.6 × 76.2 mm
Travel Range 25 mm 25 mm
Threaded Hole Type Top plate: M6 × 16 positions, M6 × 2 countersunk holesBottom plate: M6 × 2 countersunk holes Top plate: M6 × 16 positions, M6 × 2 countersunk holesBottom plate: M6 × 2 countersunk holes
Material 7075 Aluminum Alloy 7075 Aluminum Alloy

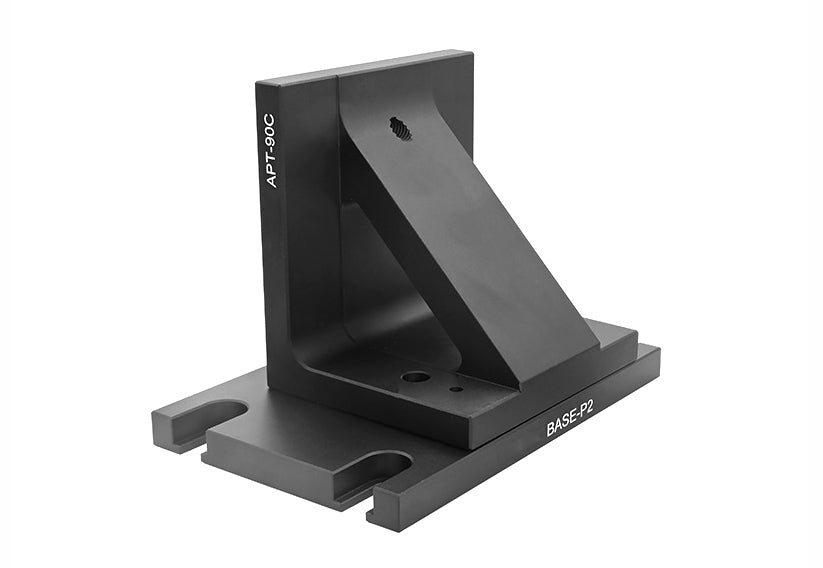

Model APT-90C Right-Angle Bracket BASE-P2 Mounting Base Plate
Dimensions 76.2 × 73.2 × 63.5 mm 111.8 × 75.7 × 9.1 mm
Material 7075 Aluminum Alloy 7075 Aluminum Alloy
Weight 184.4 g 193.0 g
Thread Type Side face: M6 × 4 positions Bottom face: M6 × 2 countersunk holes M6 × 2 positions M6 × 4 countersunk slots
Product Description Used to mount translation stages onto breadboards or optical tables Used to mount translation stages onto breadboards or optical tables
View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total
TSX-LE-B
TSX-LE-B
$260.00/ea		 $0.00 Single-Axis Translation Stage with Standard Micrometer, Travel Range 25 mm pdf No file 2 weeks
$260.00/ea $0.00
TSX-LE-C
TSX-LE-C
$408.00/ea		 $0.00 Single-Axis Translation Stage with Standard Differential Adjuster, Travel Range 25 mm pdf No file 2 weeks
$408.00/ea $0.00
APT-90C
APT-90C
$80.00/ea		 $0.00 Right-Angle Bracket for TSX series Translation Stages pdf No file 2 weeks
$80.00/ea $0.00
BASE-P2
BASE-P2
$40.00/ea		 $0.00 Base Plate for TSX Sereis Translation Stages pdf No file 2 weeks
$40.00/ea $0.00
