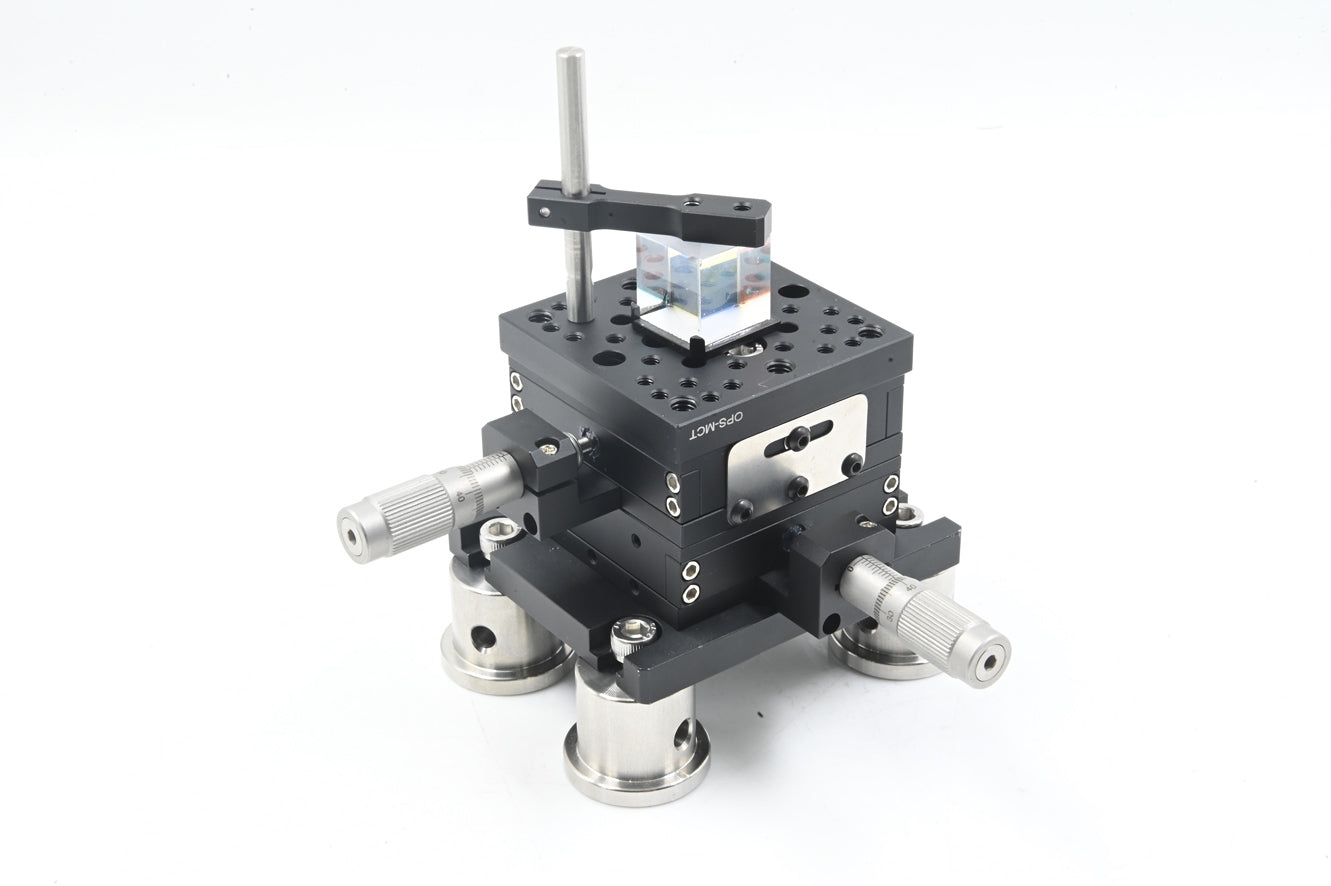

Product Description - Stages • Linear travel range: 12 mm; • Equipped with SM13 micrometer head: 0.5 mm pitch, 10 μm per division; • Multiple threaded hole array on the stage surface for easy integration with other opto-mechanical components; • Modular design allows combination into XY or XYZ configurations;

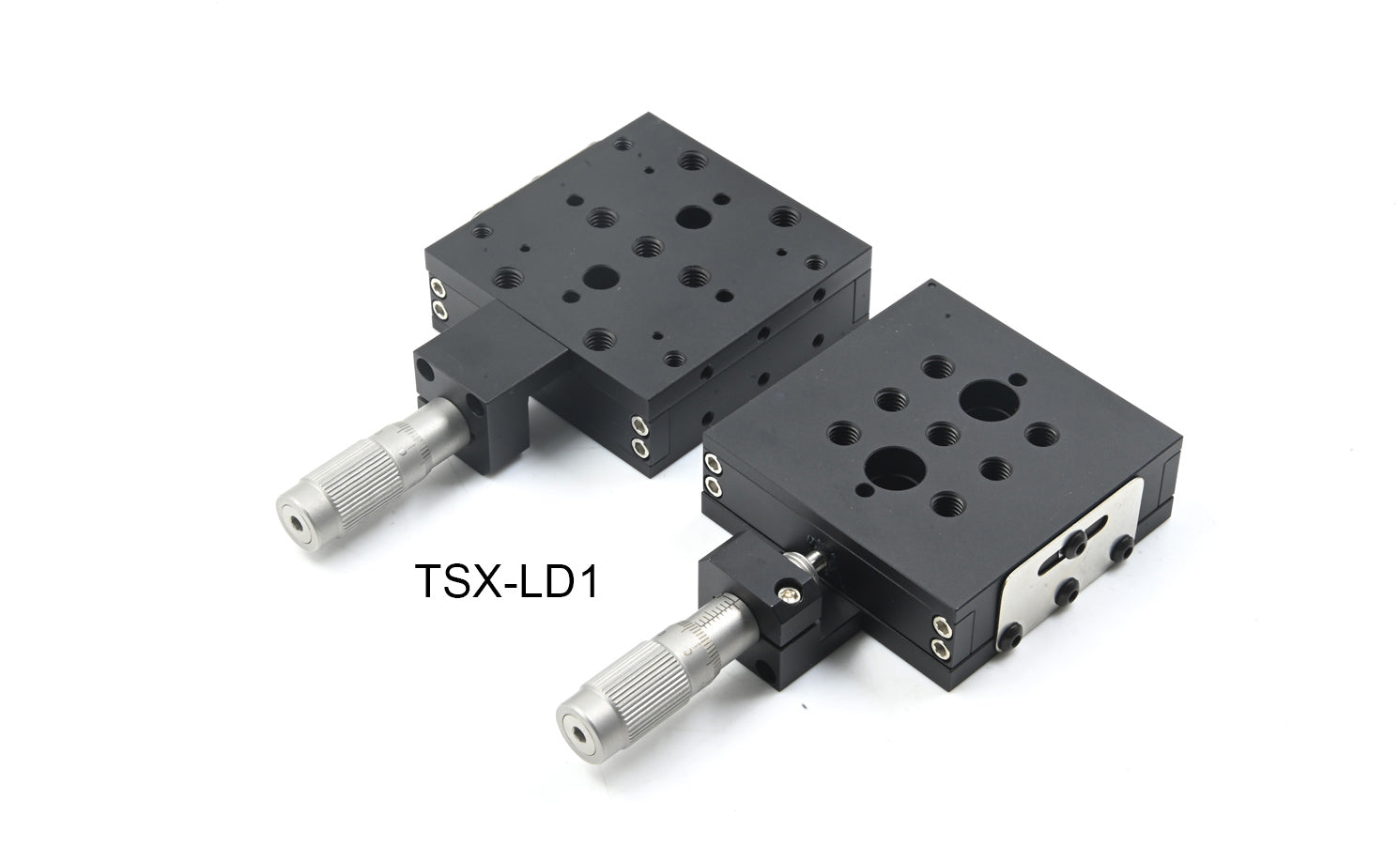

The TSX-LD1 translation stage uses hardened stainless steel linear bearings to provide single-axis linear motion for translation applications. It offers a travel range of 12 mm, driven by an SM13 micrometer head with 0.5 mm pitch and 10 μm per division.
Model
TSX-LD1
Dimensions
61.0 × 81.7 × 20.5 mm
Platform Size
61.0 × 61.0 mm
Travel Range
12 mm
Drive Mechanism
SM13 Micrometer Head: 0.5 mm pitch, 10 μm/division

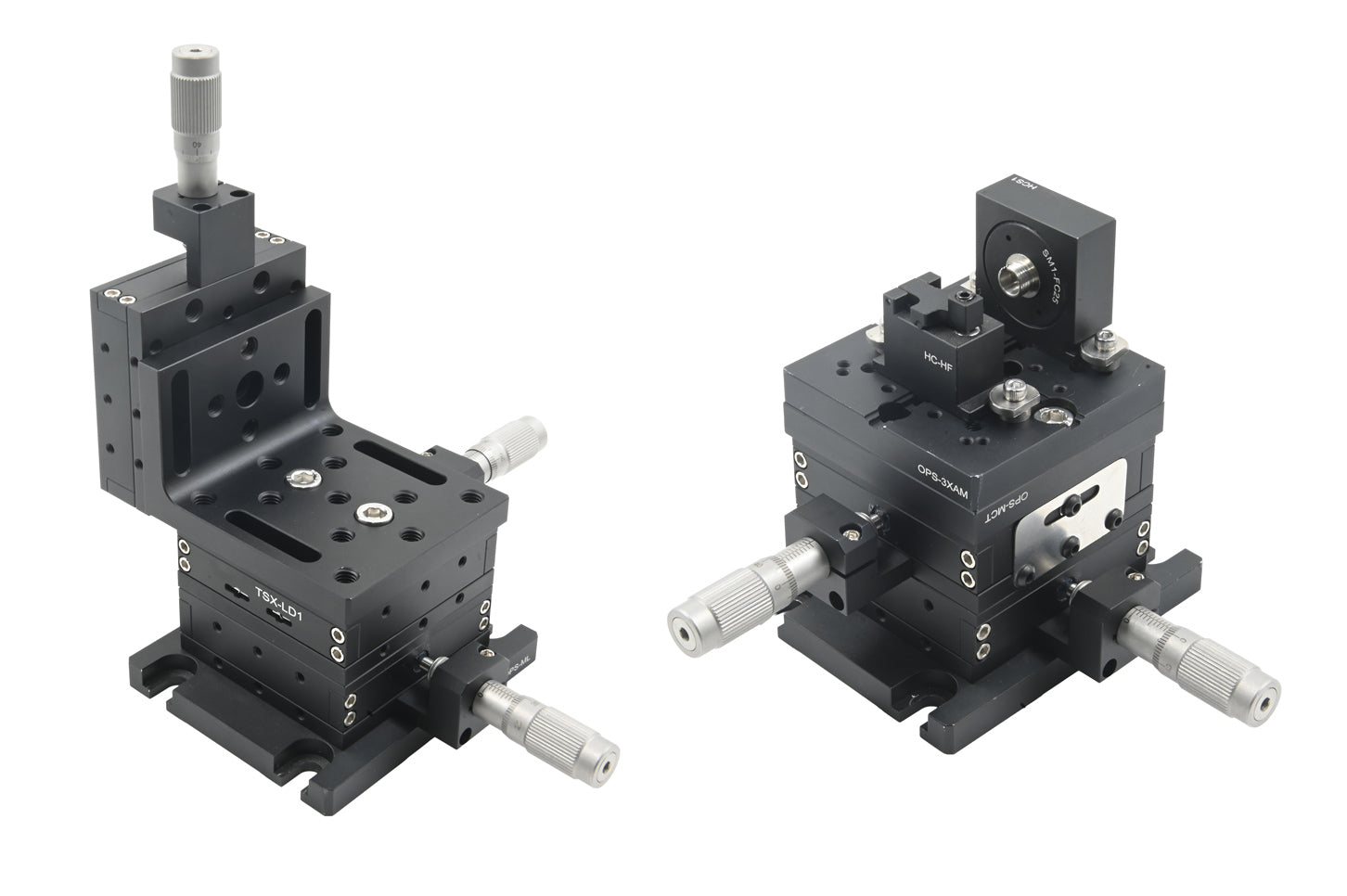

Product Description - Adapter Plates • 90° angled mounting plates with threaded mounting surfaces; • Triangular cross-section design for enhanced strength and stability; • ±30 arcmin angular tolerance; • 0.05 mm flatness; • Suitable for building 3-axis stage assemblies;
Angle brackets are ideal solutions for constructing stable 3D opto-mechanical assemblies. Made from a single piece of aluminum, they provide 45° or 90° mounting surfaces with threaded holes.
