• Supports installation of Ø1" optical elements with a maximum thickness of 0.28 inch (7.1 mm); • Provides a maximum adjustable travel of 1.2 mm, using a precision micrometer drive with a 5 µm scale division, 0.25 mm per revolution; • Mounting interface features SM1 (1.035"-40) internal threads, compatible with SM1-threaded lens tubes, and includes 1 SM1 retaining ring; • Compatible with microscope objectives using an SM1-to-RMS adapter; • Provides repeatable Z-axis travel within a 30 mm cage system;

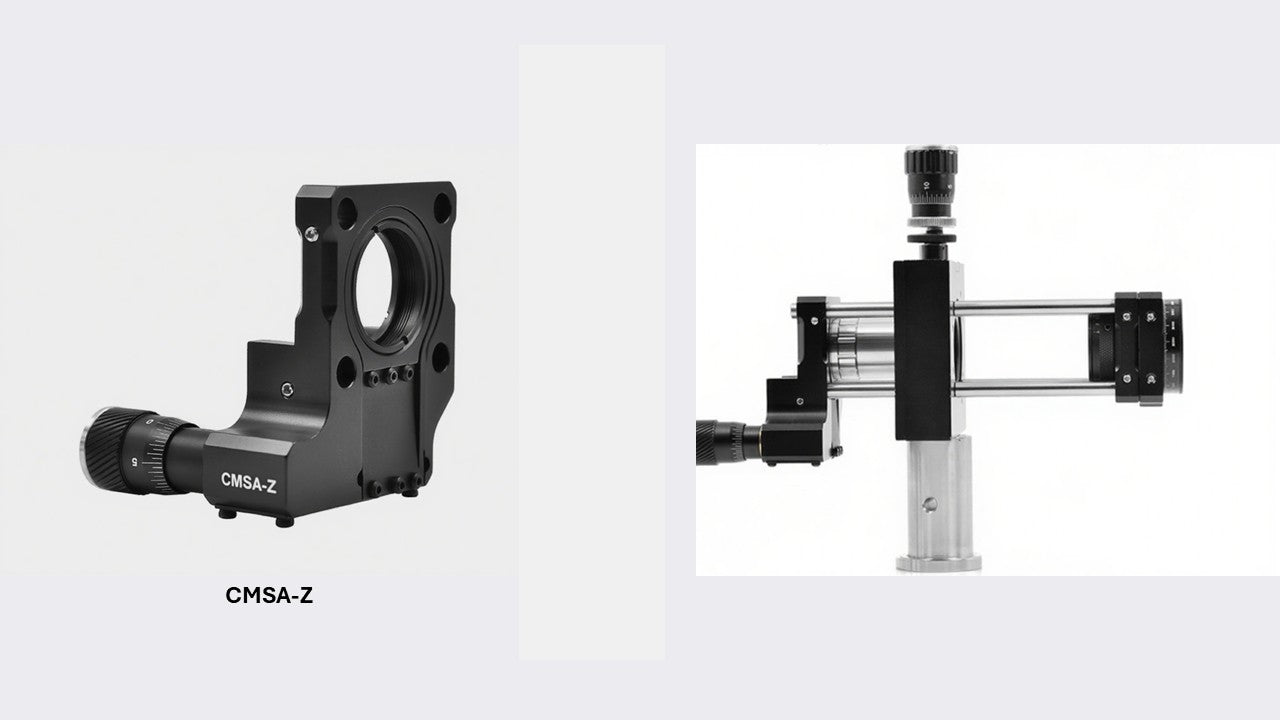

The Z-axis translation mount allows precise positioning of optical components along the optical axis. It supports direct mounting of Ø1" (25.4 mm) optics or optics mounted in SM1 (1.035"-40) threaded lens tubes. The translation mount enables repeatable axial adjustment within a 30 mm cage system, making it suitable for applications such as fiber alignment or spatial filtering, where fine focus compensation or axial precision tuning is required.
