EZ Lab

Standard Series Optical Breadboards

Standard Series Optical Breadboards

Product Description

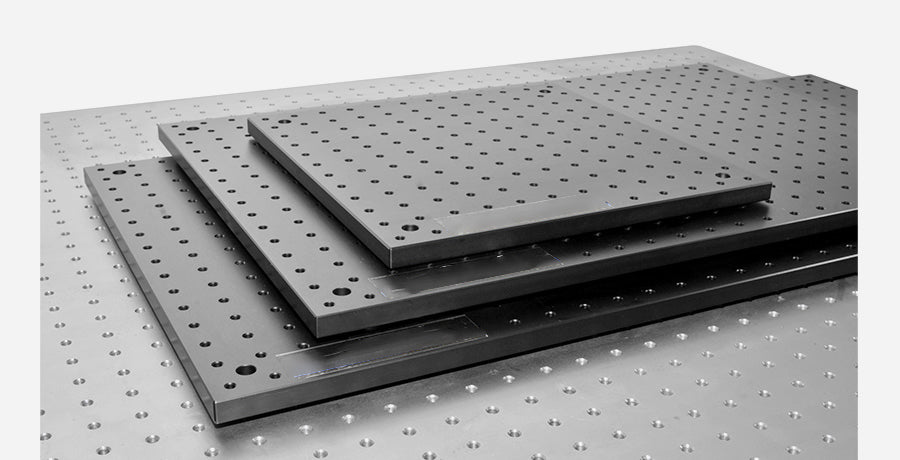

Product Type: Optical Breadboard
Thickness: 13mm

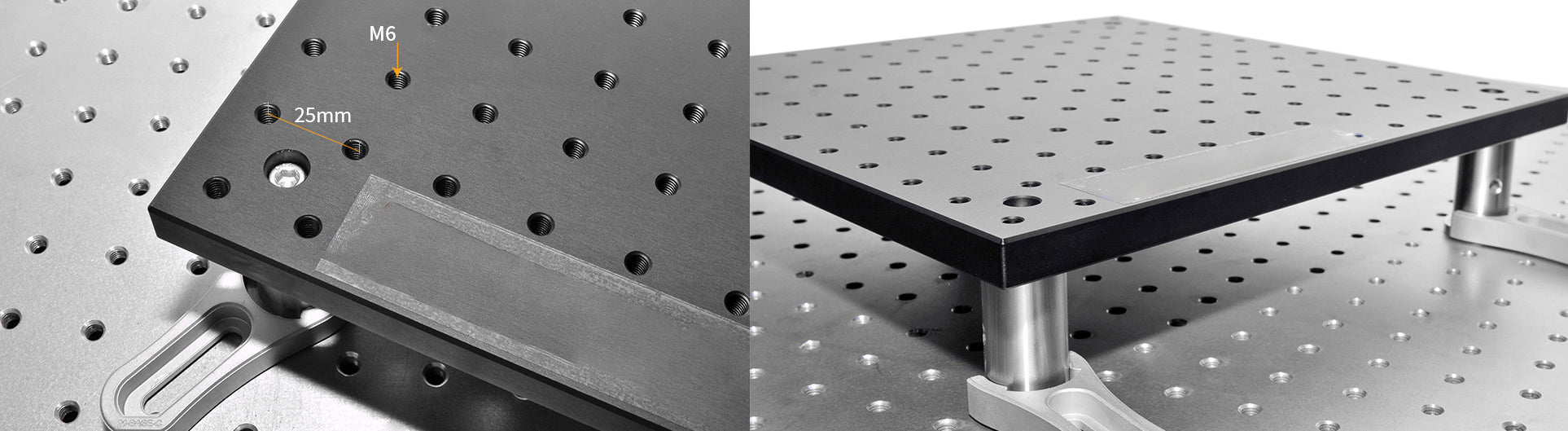

Thread Type: M6
Hole Spacing: 25mm × 25mm
Edge Margin: 12.5mm (with countersunk hole version)
Material: 7075 Aluminum Alloy. Surface treated with black anodizing to greatly reduce surface reflections.

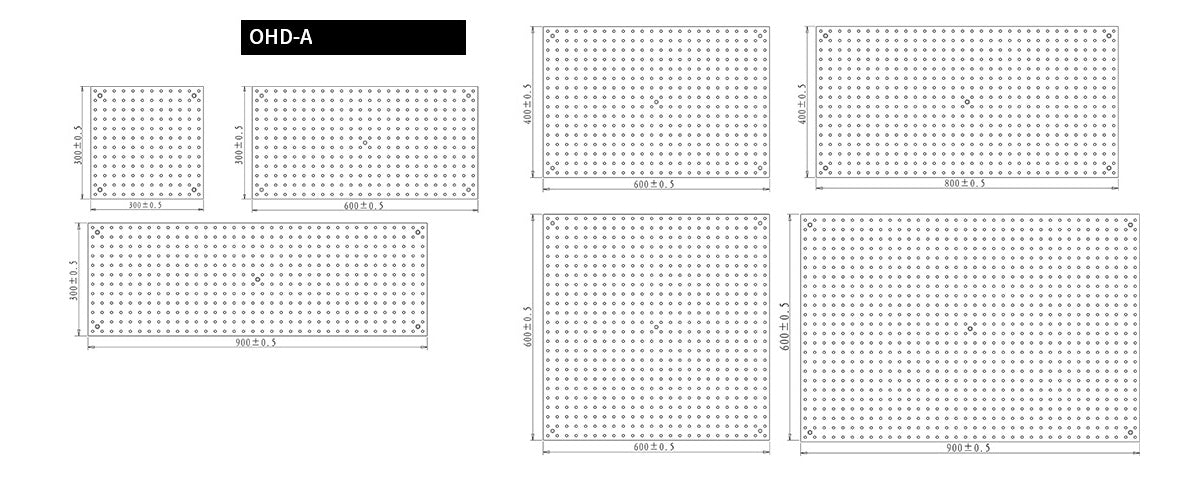

Model Specifications Weight Countersunk Holes Lead Time
OHD3030-A 300mm × 300mm 3.30 kg 4 pcs 14 days
OHD3060-A 300mm × 600mm 6.60 kg 5 pcs 14 days
OHD3090-A 300mm × 900mm 9.90 kg 5 pcs 14 days
OHD4040-A 400mm × 400mm 5.40 kg 5 pcs 14 days
OHD4060-A 400mm × 600mm 8.80 kg 5 pcs 14 days
OHD4080-A 400mm × 800mm 11.73 kg 5 pcs 14 days
OHD5050-A 500mm × 500mm 8.45 kg 5 pcs 14 days
OHD6060-A 600mm × 600mm 13.50 kg 5 pcs 14 days
OHD6090-A 600mm × 900mm 19.80 kg 5 pcs 14 days
View full details
Model Number Variant total Specification Drawings All Files Lead Time Quantity Price Model Total
OHD3030-A
OHD3030-A
$160.00/ea		 $0.00 300mm x 300mm x 13mm pdf No file 2 weeks
$160.00/ea $0.00
OHD3060-A
OHD3060-A
$275.00/ea		 $0.00 300mm x 600mm x 13mm pdf No file 2 weeks
$275.00/ea $0.00
OHD3090-A
OHD3090-A
$340.00/ea		 $0.00 300mm x 900mm x 13mm pdf No file 2 weeks
$340.00/ea $0.00
OHD4040-A
OHD4040-A
$270.00/ea		 $0.00 400mm x 400mm x 13mm No pdf No file 2 weeks
$270.00/ea $0.00
OHD4060-A
OHD4060-A
$330.00/ea		 $0.00 400mm x 600mm x 13mm pdf No file 2 weeks
$330.00/ea $0.00
OHD4080-A
OHD4080-A
$500.00/ea		 $0.00 400mm x 800mm x 13mm pdf No file 2 weeks
$500.00/ea $0.00
OHD5050-A
OHD5050-A
$330.00/ea		 $0.00 500mm x 500mm x 13mm No pdf No file 2 weeks
$330.00/ea $0.00
OHD6060-A
OHD6060-A
$510.00/ea		 $0.00 600mm x 600mm x 13mm pdf No file 2 weeks
$510.00/ea $0.00
OHD6090-A
OHD6090-A
$720.00/ea		 $0.00 600mm x 900mm x 13mm pdf No file 2 weeks
$720.00/ea $0.00
