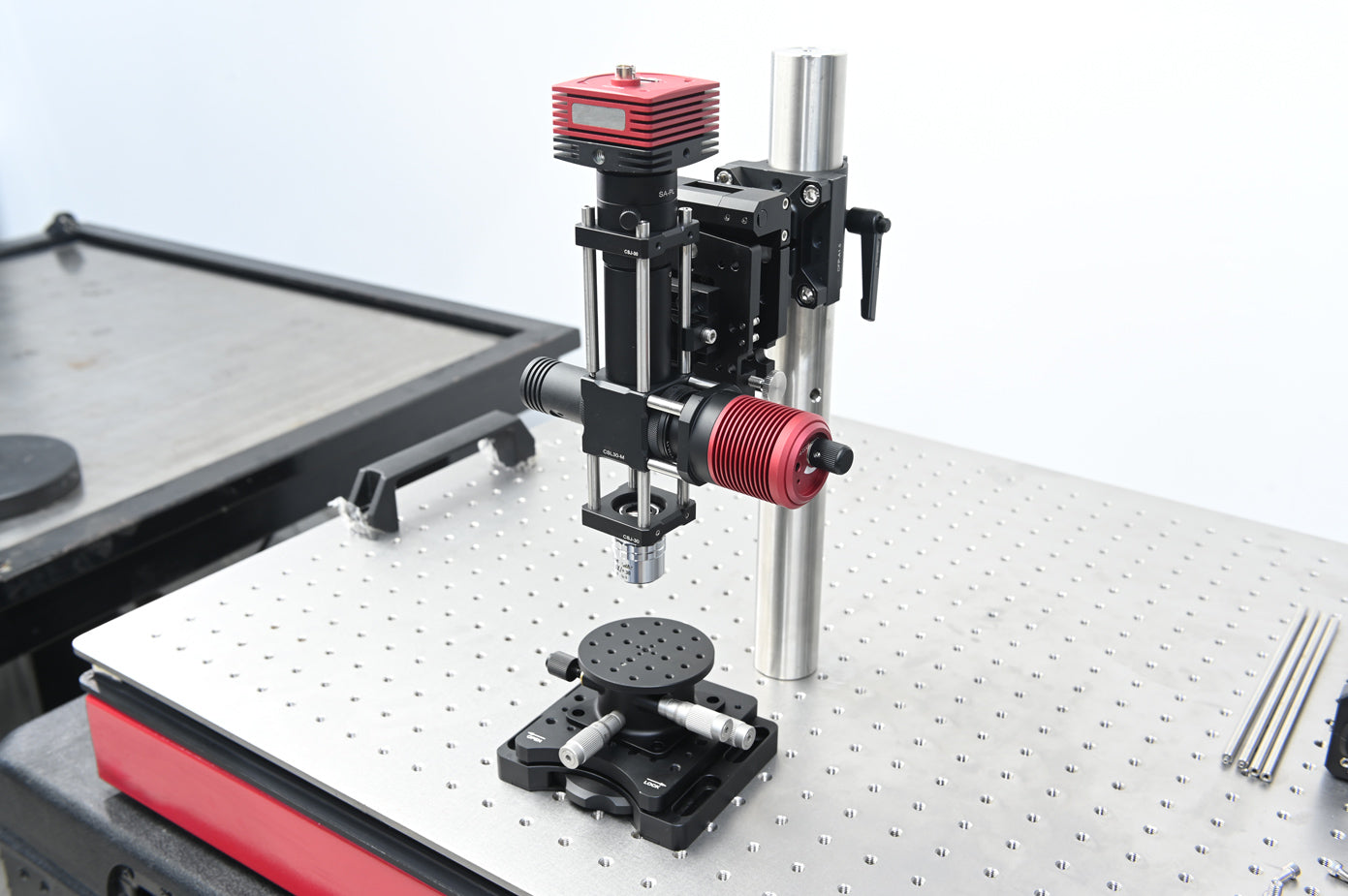

• Micrometer heads control pitch, tilt, and rotation adjustments. • Adjustment range: ±4.1° pitch/tilt, ±9.5° rotation. • Platform height: 37.5 mm. • Manual knobs allow for axis limit setting and temporary locking of θX, θY, and θZ axes. • M4 threaded hole array on the platform with 12.5 mm spacing.

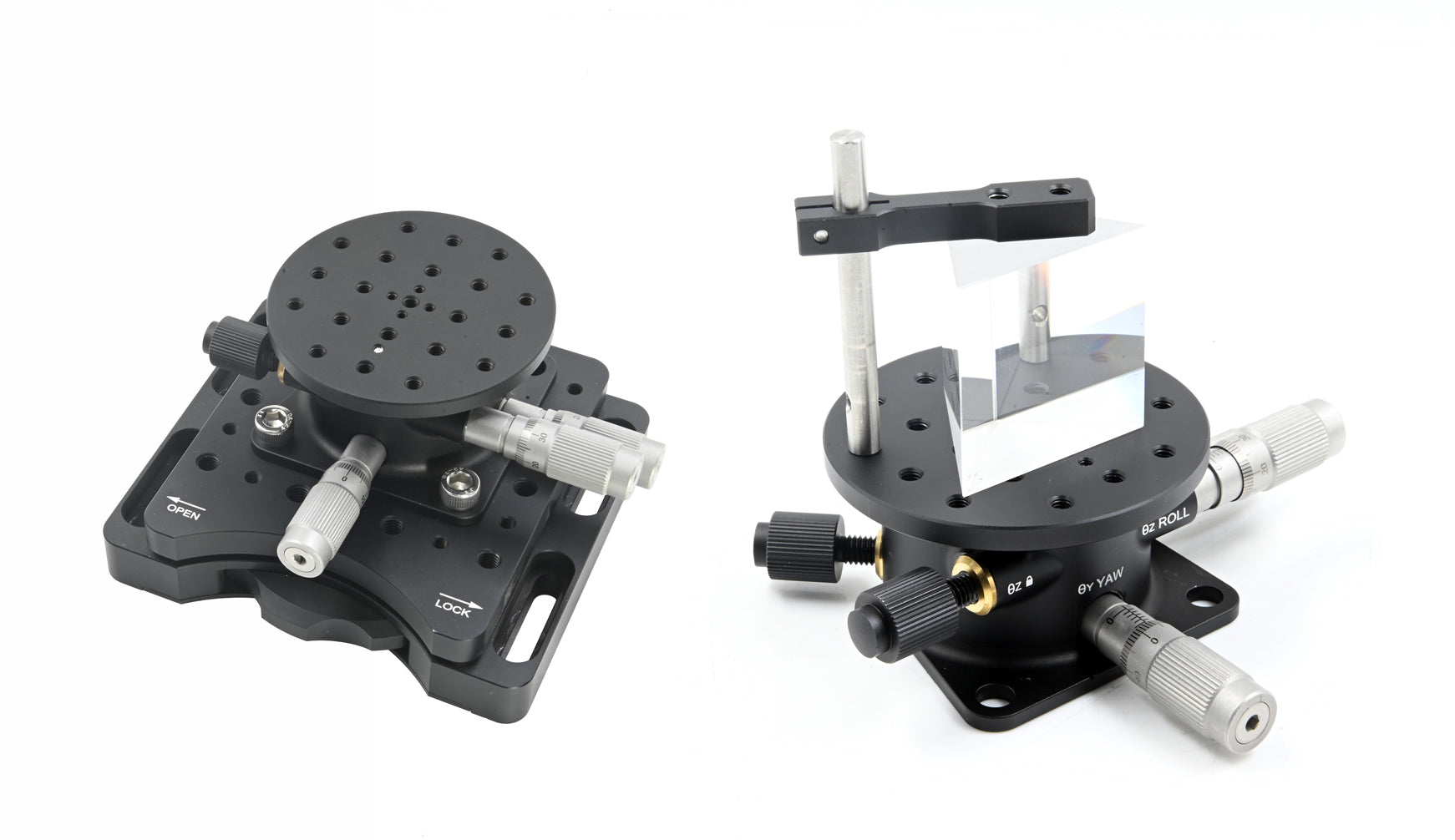

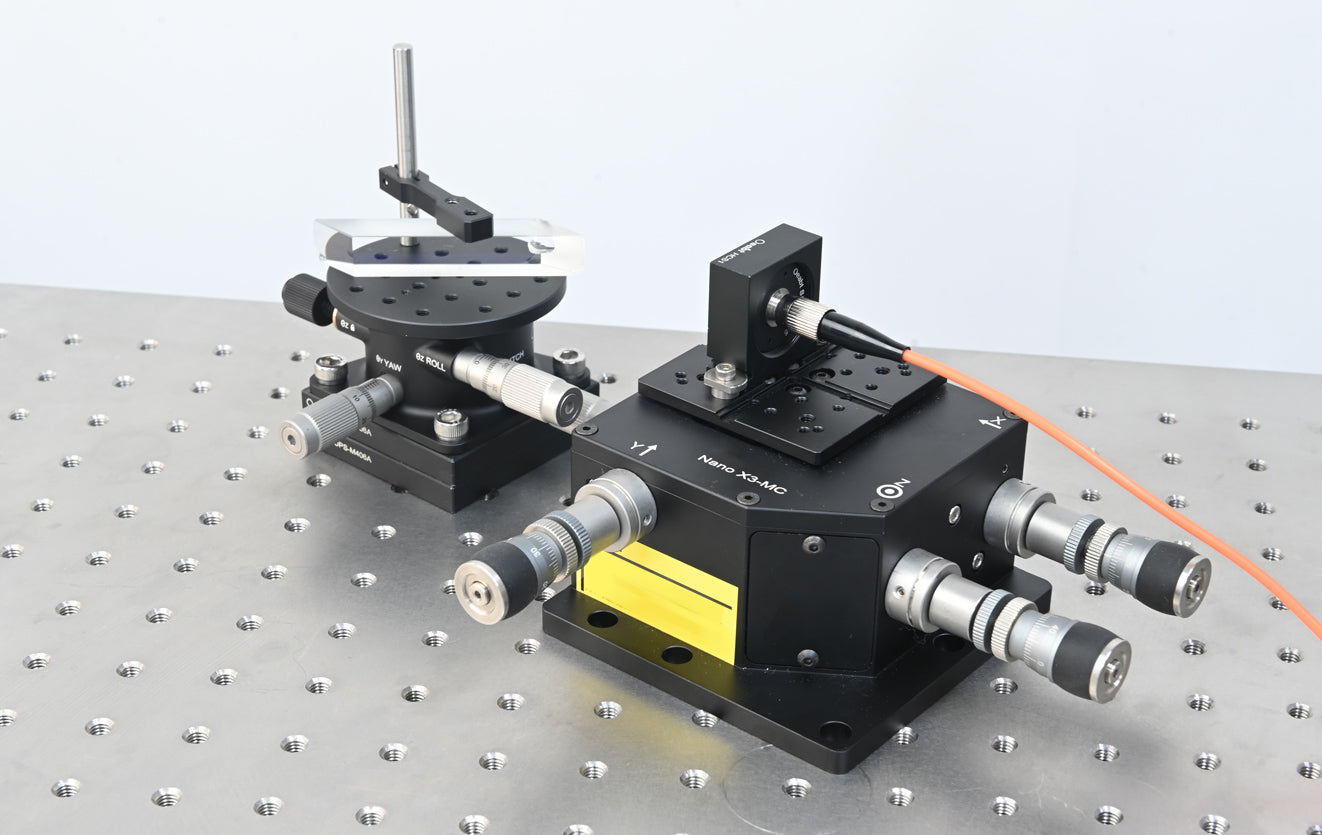

The TAP-TR Tilt and Rotation Stage provides ±4.1° of pitch and tilt adjustment and ±9.5° of rotational adjustment. It is equipped with SM13 micrometer heads to control pitch, tilt, and rotation, with a 10 µm scale division. Each full turn of the micrometer provides:
• 1.85° of pitch/tilt adjustment (resolution: 0.037°) • 1.7° of rotational adjustment (resolution: 0.034°.
Specifications - Stages
Model
TAP-TR
Dimensions
Ø70.0 × 37.5 mm (excluding micrometers)
Adjustment Range
Pitch/Tilt: ±4.1° — 1.85°/rev, resolution: 0.037°
Rotation: ±9.5° — 1.7°/rev, resolution: 0.034°
Thread Type
M4 × 21 holes, M6 × 3 through holes
Load Capacity
2 kg
Weight
318.9 g
Material
7075 Aluminum Alloy

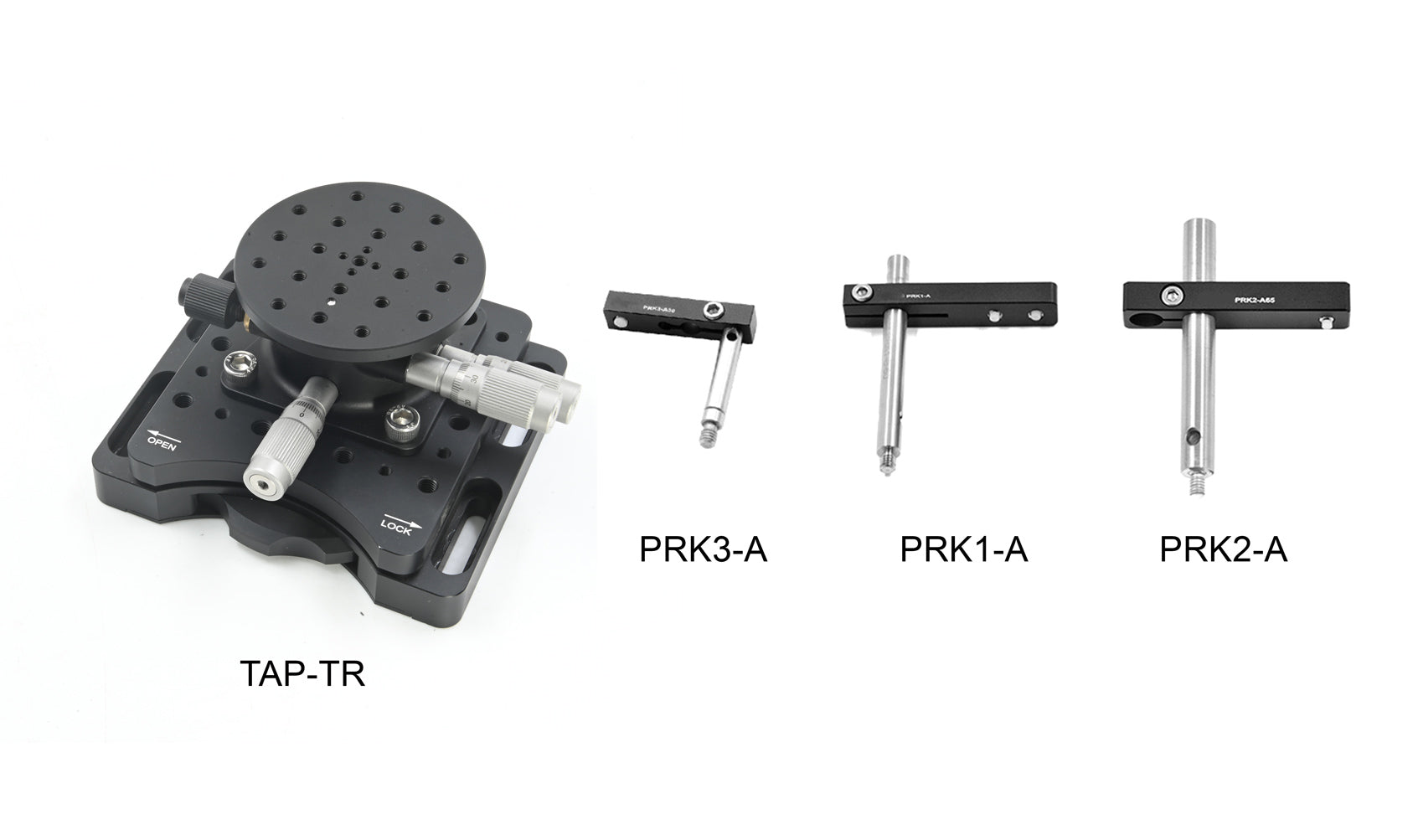

Product Description - Clamping Arms
• Provides clamping force for platform-mounted adjustment holders; • Flexible clamping mechanism; • M4 threaded rod base;

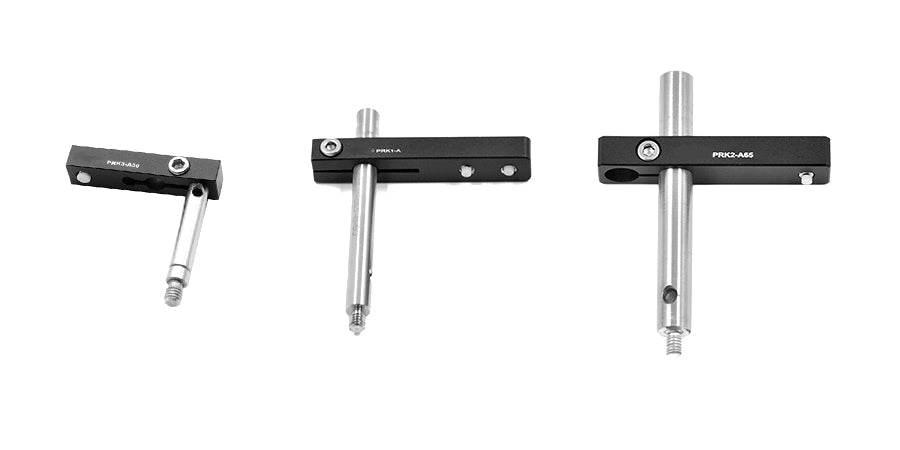

The clamping arm secures the optical element onto platform-mounted optical adjustment holders or V-groove clamps using a nylon-tipped set screw with a 2 mm hex. The flexible mechanism of the clamping arm is locked onto the mounting rod using a 2.5 mm ball driver or hex key. The mounting rod also features a through-hole for applying additional torque during tightening.
