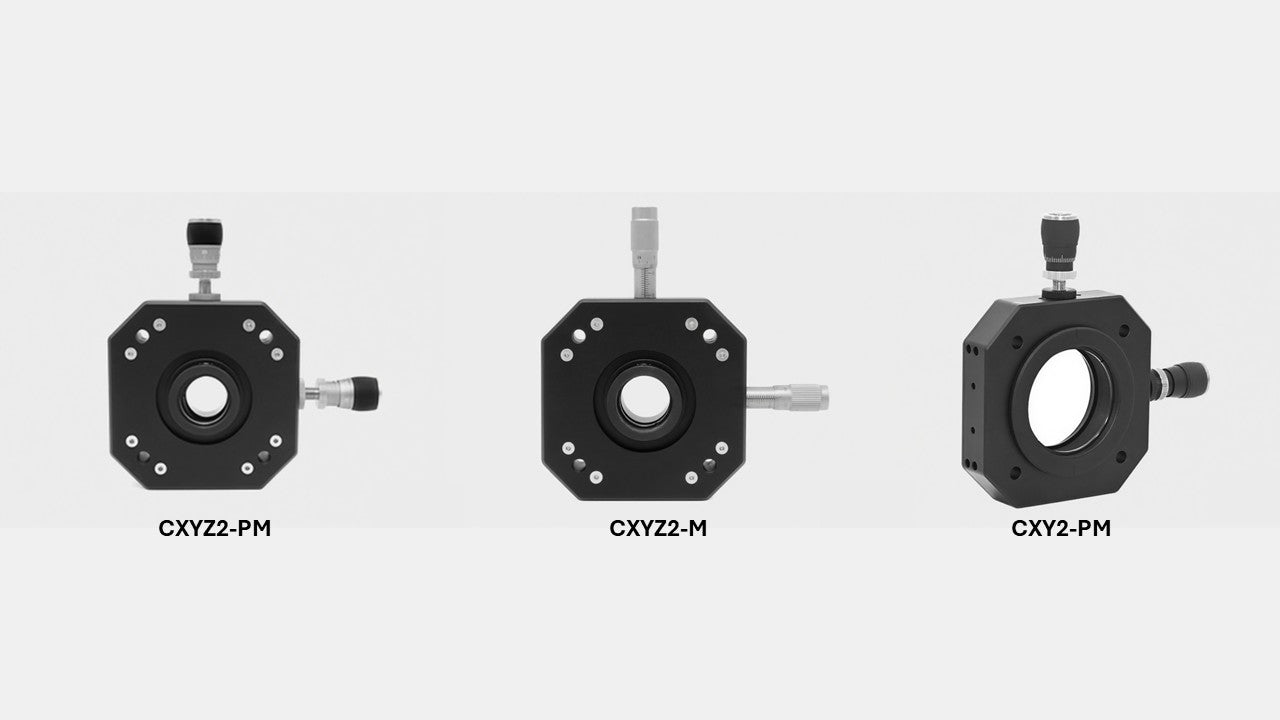

CXYZ2-M Series XYZ Translation Mount (SM1-Compatible for 60 mm Cage Systems)
• Fully compatible with 60 mm cage system setups. • ±3 mm travel range in both X and Y axes, with non-rotating ±1.5 mm Z-axis travel. • Equipped with SM1 (1.035"-40) internal thread, compatible with SM1 lens tube accessories. • Ideal for precision alignment tasks such as fiber coupling, lens focusing, and beam steering.
The CXYZ2-M series translation mounts offer fine three-axis adjustment in a compact, rigid housing. The X and Y axes enable ±3 mm transverse positioning of mounted optics relative to the optical axis, while the Z-axis travel (±1.5 mm) compensates for focus errors or axial misalignment. The SM1-threaded central aperture supports Ø1" optics or lens tubes. The mount’s compatibility with 60 mm cage rods and M6 base threads allows for flexible integration in both horizontal and vertical optical systems.
Model
CXYZ2-M
CXYZ2-PM
Dimensions
94.0 mm × 94.0 mm × 32.6 mm (excluding micrometers)
Same
XY Adjusters
SM13 Micrometers
PSM8A Differential Adjusters
XY Resolution
0.5 mm pitch, 10 μm scale, 1 μm vernier
Coarse: 0.35 mm/rev; Fine: 100 μm/rev (2 μm/div)
Travel Range
±3 mm (X/Y), ±1.5 mm (Z, non-rotating)
Same
Center Thread
SM1 (1.035"-40) Internal Thread
Same
Rod Hole Spacing
Ø6 mm holes, spaced 60 × 60 mm
Same
Mounting Threads
2 × M6 Tapped Holes
Same
Weight
425.3 g
425.3 g
Material
7075 Aluminum Alloy
7075 Aluminum Alloy

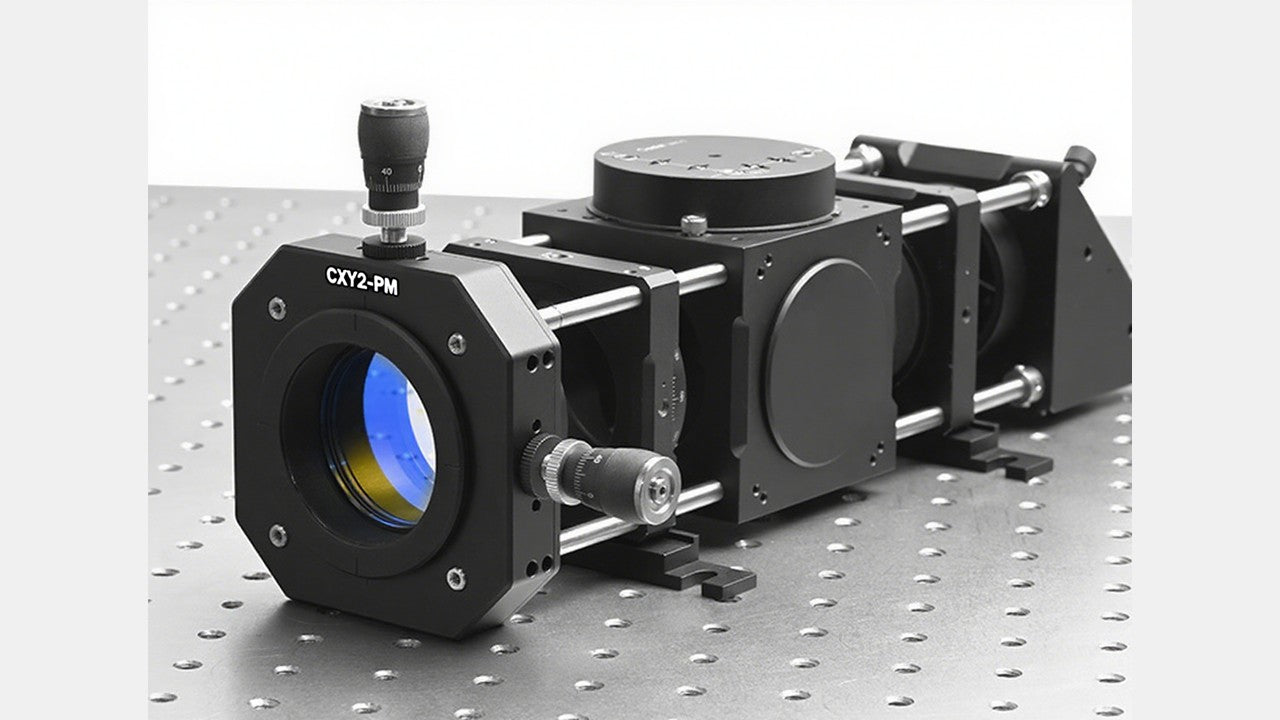

CXY2-PM Precision XY Translation Mount (SM2-Compatible, for 60 mm Cage Systems)
• Supports Ø2" (Ø50.8 mm) optical components up to 16.0 mm thick. • Provides ±2 mm translation range in both X and Y directions. • Fully compatible with standard 60 mm cage systems. • SM2 (2.035"-40) internal thread on both front and rear panels—compatible with all SM2 series lens tubes and accessories.
The CXY2-PM is a precision XY translation mount that allows lateral (X and Y) adjustment of optics along the optical axis of a 60 mm cage system. It is driven by PSM8 differential adjusters, providing fine and coarse control:
Coarse adjustment: 0.35 mm per revolution
Fine adjustment: 100 μm per revolution, with 2 μm resolution per division
The mount features visible alignment grooves along both the horizontal and vertical axes to aid with system-level alignment. Once positioned, locking nuts on the adjusters allow secure fixing of the position. This mount is ideal for use in applications such as laser alignment, imaging systems, and beam delivery paths where high precision and repeatability are required.
