Dovetail Translation Stages, Travel Range 12 mm

Product Description

Dovetail-Type Translation Stage

• Compact and lightweight structure
• Direct drive at the end
• Multiple single-axis stages can be assembled together

This miniature dovetail-type translation stage features a compact design, suitable for use in space-constrained environments where high positioning accuracy is not required. The platform measures 25 mm × 25 mm, with a maximum travel range of 13 mm. It uses a precision M3 × 0.35 adjustment screw.

A locking screw on the side allows the stage to be secured in place using a 1.5 mm hex key. The base of the stage includes an M4 threaded hole for mounting onto a Ø12 mm optical post, while the top also features an M4 threaded hole for attaching optical mounts or other accessories.

Accessories:

• A top mounting plate adapter is included, which features a variety of M3 and M4 threaded adapters and key slots to facilitate mounting with 30 mm coaxial system components.
• A base plate adapter is available for mounting the stage onto an optical table. It supports all two-axis and three-axis configurations and can also be used with a single-axis stage.

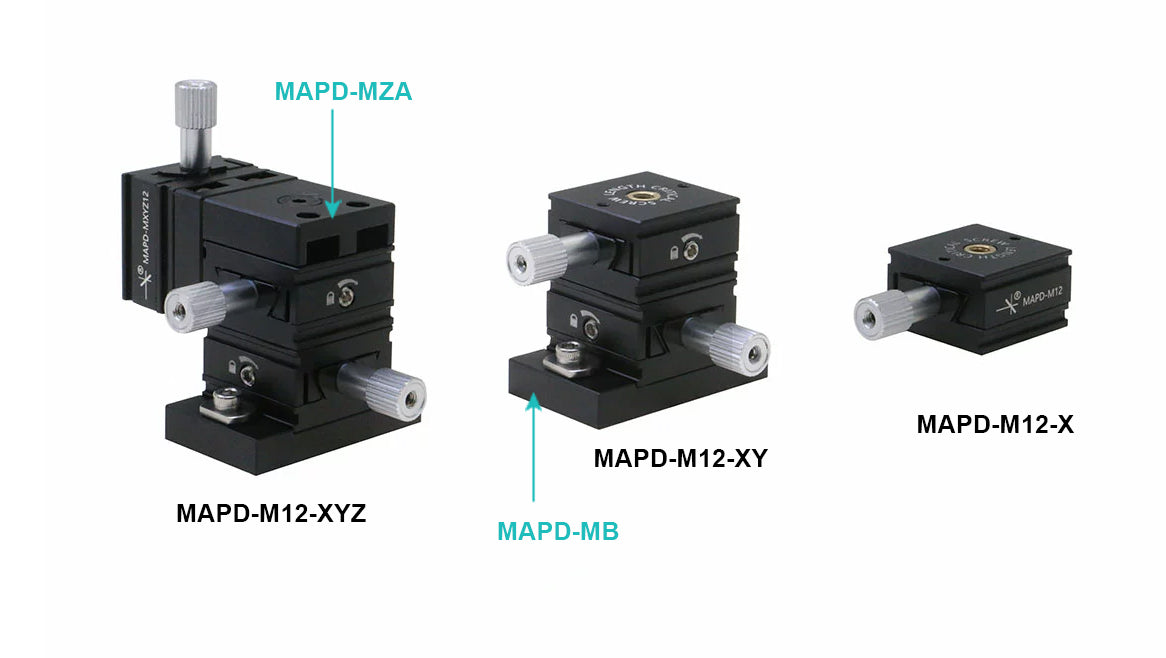

• A right-angle bracket allows easy assembly into XZ, YZ, or XYZ configurations.
• A rotation adapter can be added to enable 360° rotation of a single stage.
• Additionally, a coaxial system adapter is provided for mounting the stage within a 60 mm coaxial system.
